Data sheet

Phase

Single phase / Three phase

Maximum power single phase (KW)

4.4

Maximum power single phase (KVA)

5.5

Maximum power three phase (KW)

13.2

Maximum power three phase (KVA)

16.5

Fuel

Diesel

Frequency (Hz)

50

Voltage (V)

230 / 400

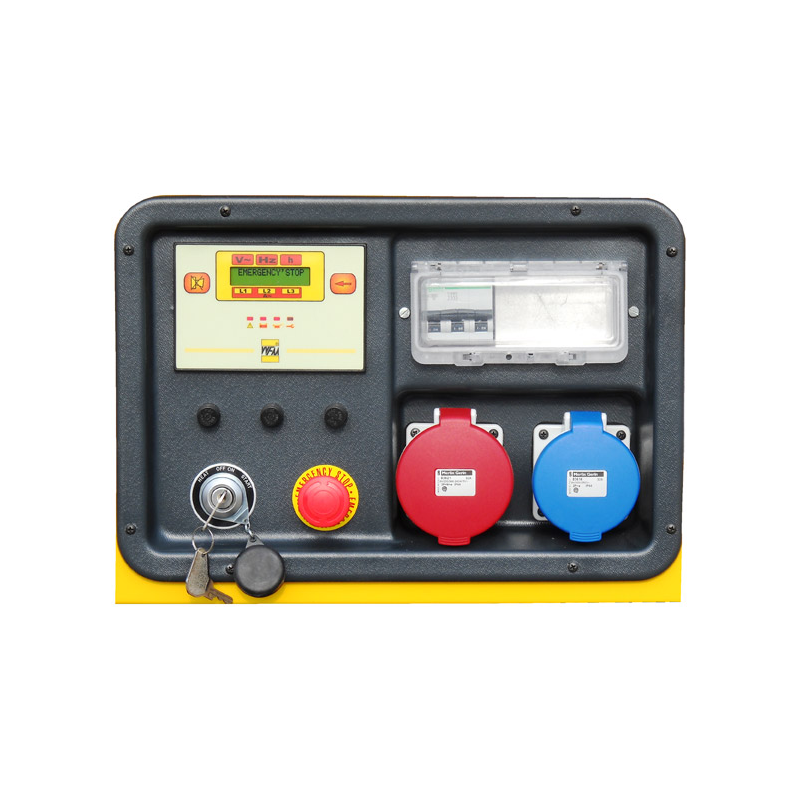

Sockets configuration

1 x 400V 16A 5P CEE - 1 x 230V 16A 3P CEE

Engine

Lombardini LDW1603

Engine rpm (rpm)

1500

Starting system

Electric

Engine capacity (cm³)

1649

Number cylinders

3

Oil capacity (L)

3.8

Cooling

Coolant Liquid

Fuel tank capacity (L)

46

Consumption (L/h)

5.3 at 100% of the load

Running time (h)

8.67 at 100% of the load

Acoustic power

105 dB(A)

Acoustic pressure

80 dB(A) at 7 m

Length (mm)

1450

Width (mm)

680

Height (mm)

985

Dry weight (Kg)

350

Silenced

No

Super silenced

No

ATS Switch device

Optional

Voltage regulator

No

Engine manufacturer

Lombardini
