WFM
09356
New product
Technical features
Phase
Single phase / Three phase
Maximum power single phase (KW)
3.8
Maximum power single phase (KVA)
4.8
Maximum power three phase (KW)
11.6
Maximum power three phase (KVA)
14.5
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400

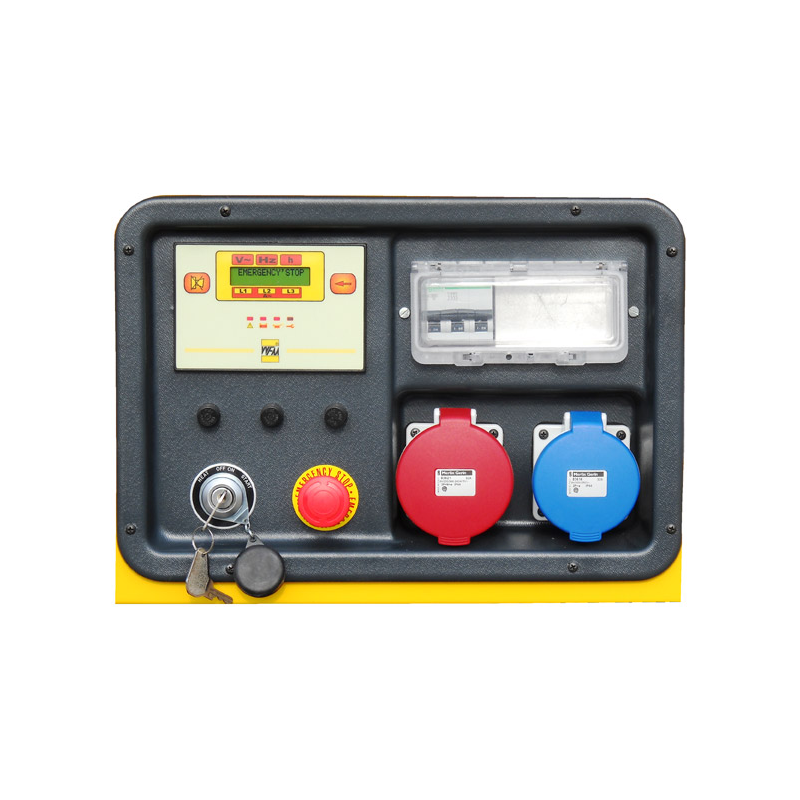

Sockets configuration
1 x 400V 16A 5P CEE - 1 x 230V 16A 3P CEE
Engine
Perkins 403D-15G
Engine rpm (rpm)
1500
Starting system
Electric
Engine capacity (cm³)
1496
Number cylinders
3
Oil capacity (L)
6
Cooling
Coolant Liquid
Fuel tank capacity (L)
46
Consumption (L/h)
4.6 at 100% of the load
Running time (h)
10 at 100% of the load
Acoustic power
103 dB(A)
Acoustic pressure
78 dB(A) at 7 m
Length (mm)
1450
Width (mm)
680
Height (mm)
985
Dry weight (Kg)
370
Silenced
No
Super silenced
No
ATS Switch device
Optional
Voltage regulator
No
Engine manufacturer
Perkins
Details
* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
Technical Sheet / Manuals

Scheda tecnica D145-LDEW

(171.26k)

Technical data D145-LDEW

(170.54k)
Related Accessories
Price
6.478,20 € tax incl.
5.310,00 € tax excl.
Ask for availability
Add to wishlist
Download PDF
Ask a question
