Data sheet

Phase

Single phase / Three phase

Maximum power single phase (KW)

3.2

Maximum power single phase (KVA)

4

Maximum power three phase (KW)

9.6

Maximum power three phase (KVA)

12

Fuel

Diesel

Frequency (Hz)

50

Voltage (V)

230 / 400

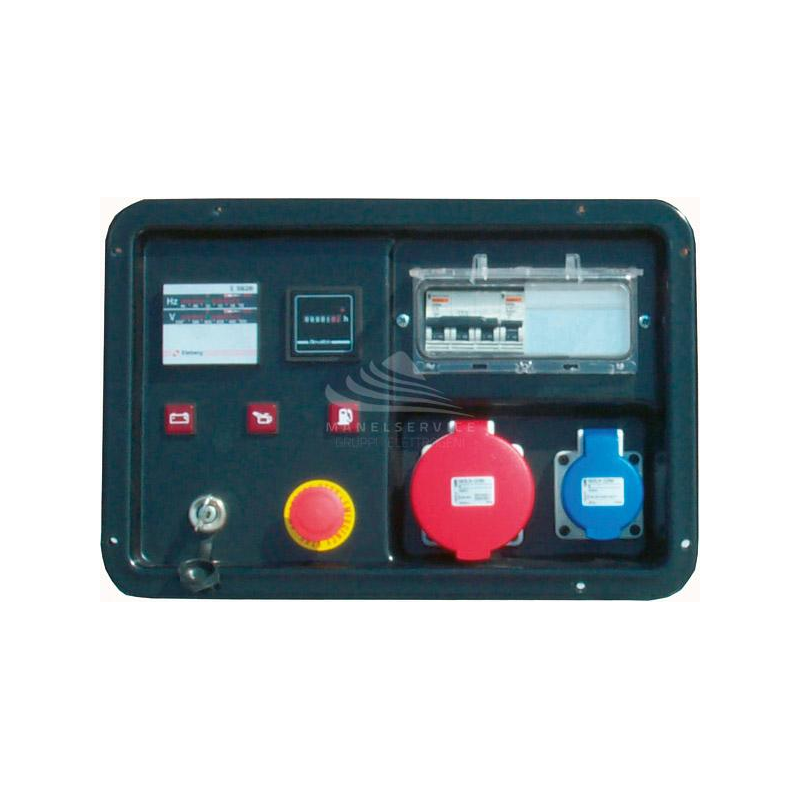

Sockets configuration

1 x 400V 16A 5P CEE - 1 x 230V 16A 3P CEE

Engine

Lombardini 12LD477

Engine rpm (rpm)

3000

Starting system

Electric

Engine capacity (cm³)

954

Number cylinders

2

Oil capacity (L)

3

Cooling

Air

Fuel tank capacity (L)

20

Consumption (L/h)

4.4 at 100% of the load

Running time (h)

4.54 at 100% of the load

Acoustic power

94 dB(A)

Acoustic pressure

69 dB(A) at 7 m

Length (mm)

1070

Width (mm)

563

Height (mm)

921

Dry weight (Kg)

270

Silenced

Yes

Super silenced

Yes

ATS Switch device

Optional

Voltage regulator

No

Engine manufacturer

Lombardini
