Data sheet

Phase

Single phase

Maximum power single phase (KW)

3.7

Maximum power single phase (KVA)

4.6

Fuel

Diesel

Frequency (Hz)

50

Voltage (V)

230

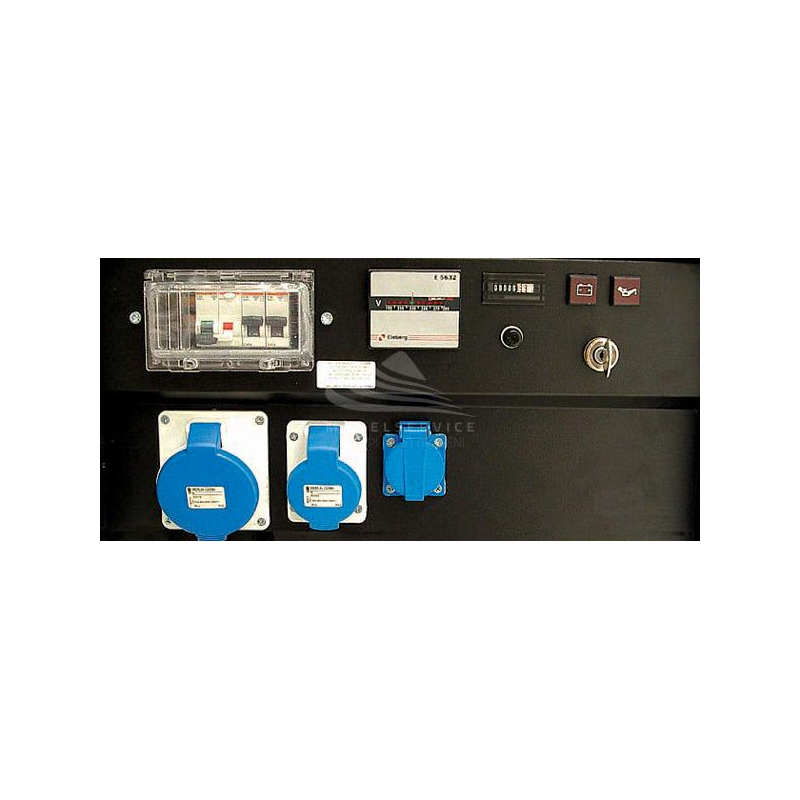

Sockets configuration

1 x 400V 16A 5P CEE - 1 x 230V 16A 3P CEE

Engine

Lombardini 15LD350

Engine rpm (rpm)

3000

Starting system

Electric

Engine capacity (cm³)

349

Number cylinders

1

Oil capacity (L)

1.2

Cooling

Air

Fuel tank capacity (L)

20

Consumption (L/h)

1.5 at 100% of the load

Running time (h)

13.33 at 100% of the load

Acoustic power

96 dB(A)

Acoustic pressure

71 dB(A) at 7 m

Length (mm)

750

Width (mm)

560

Height (mm)

620

Dry weight (Kg)

140

Silenced

Yes

Super silenced

No

ATS Switch device

Optional

Voltage regulator

No

Engine manufacturer

Lombardini
