Data sheet

Phase

Single phase

Maximum power single phase (KW)

5.5

Maximum power single phase (KVA)

6.9

Fuel

Diesel

Frequency (Hz)

50

Voltage (V)

230

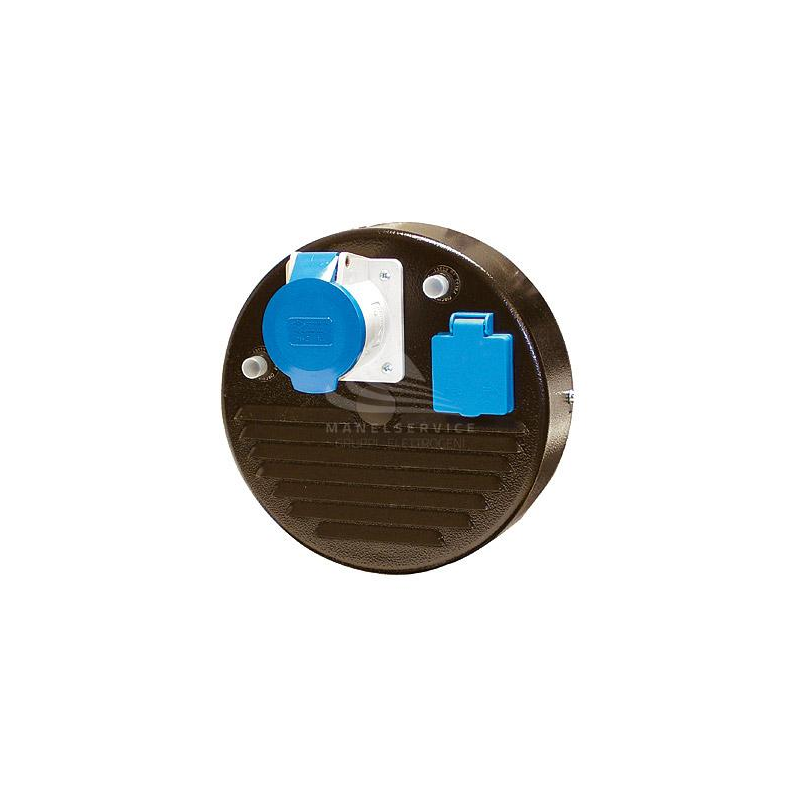

Sockets configuration

1 x 230V 16A - 1 x 230V 16A CEE

Engine

Lombardini 15LD440

Engine rpm (rpm)

3000

Ignition

Recoil

Starting system

Pull starter

Engine capacity (cm³)

436

Number cylinders

1

Oil capacity (L)

1.5

Cooling

Air

Fuel tank capacity (L)

5

Consumption (L/h)

2 at 100% of the load

Running time (h)

2.5 at 100% of the load

Acoustic power

103 dB(A)

Acoustic pressure

78 dB(A) at 7 m

Length (mm)

780

Width (mm)

520

Height (mm)

560

Dry weight (Kg)

94

Silenced

No

Super silenced

No

ATS Switch device

No

Voltage regulator

No

Engine manufacturer

Lombardini
