Data sheet

Phase

Single phase / Three phase

Maximum power single phase (KW)

1.8

Maximum power single phase (KVA)

2.2

Maximum power three phase (KW)

4.3

Maximum power three phase (KVA)

5.4

Fuel

Gasoline

Frequency (Hz)

50

Voltage (V)

230 / 400

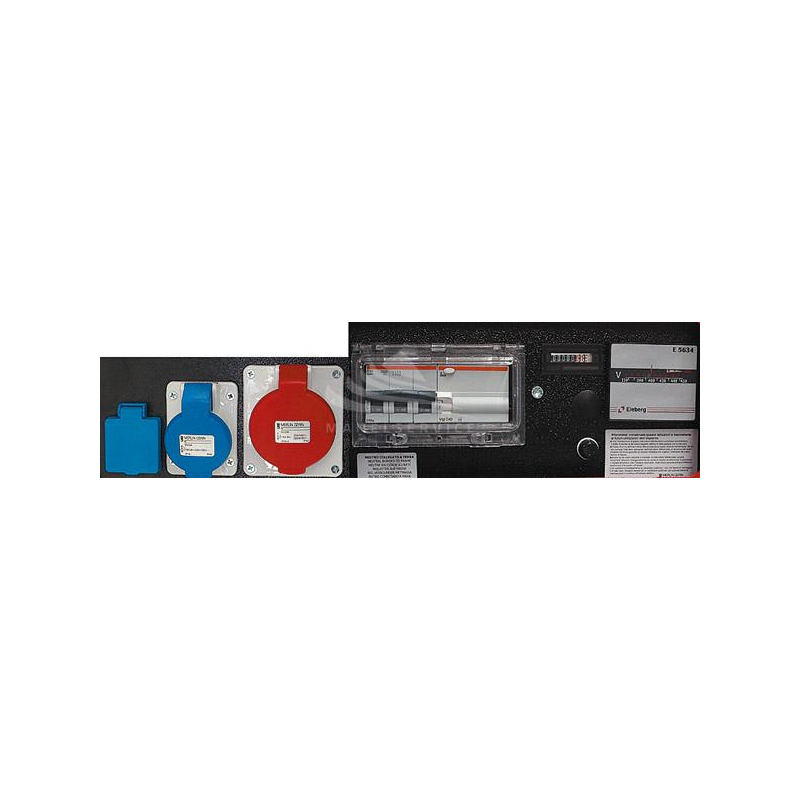

Sockets configuration

1 x 230V 16A 3P CEE - 1 x 230V 32A 3P CEE - 1 x 230V 16A 3P SCHUKO

Engine

Honda GX270

Engine rpm (rpm)

3000

Starting system

Electric

Engine capacity (cm³)

270

Number cylinders

1

Oil capacity (L)

1.1

Cooling

Air

Fuel tank capacity (L)

20

Consumption (L/h)

2.4 at 100% of the load

Running time (h)

8.33 at 100% of the load

Acoustic power

95 dB(A)

Acoustic pressure

70 dB(A) at 7 m

Length (mm)

750

Width (mm)

560

Height (mm)

620

Dry weight (Kg)

82

Silenced

No

Super silenced

No

ATS Switch device

Optional

Voltage regulator

No

Engine manufacturer

Honda
