Data sheet

Phase

Single phase

Maximum power single phase (KW)

5.6

Maximum power single phase (KVA)

7

Fuel

Gasoline

Frequency (Hz)

50

Voltage (V)

230

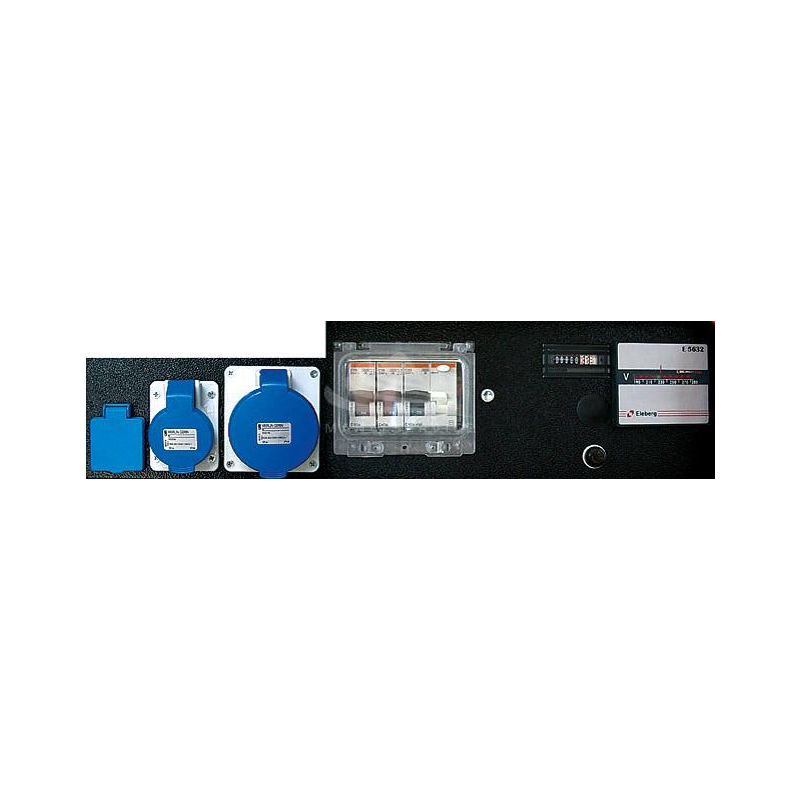

Sockets configuration

1 x 230V 16A 3P CEE - 1 x 230V 32A 3P CEE - 1 x 230V 16A 3P SCHUKO

Engine

Honda GX390

Engine rpm (rpm)

3000

Starting system

Electric

Engine capacity (cm³)

389

Number cylinders

1

Oil capacity (L)

1.1

Cooling

Air

Fuel tank capacity (L)

20

Consumption (L/h)

3.1 at 100% of the load

Running time (h)

6.45 at 100% of the load

Acoustic power

96 dB(A)

Acoustic pressure

71 dB(A) at 7 m

Length (mm)

750

Width (mm)

560

Height (mm)

620

Dry weight (Kg)

93

Silenced

No

Super silenced

No

ATS Switch device

Optional

Voltage regulator

No

Engine manufacturer

Honda
