Data sheet

Phase

Single phase

Maximum power single phase (KW)

3.6

Maximum power single phase (KVA)

4.5

Fuel

Gasoline

Frequency (Hz)

50

Voltage (V)

230

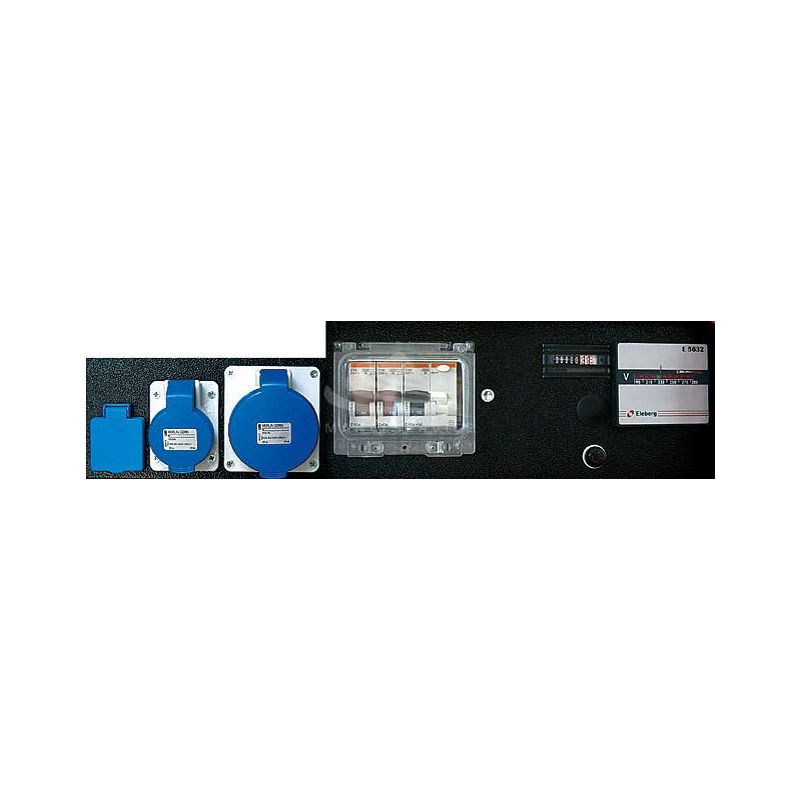

Sockets configuration

1 x 230V 16A 3P CEE - 1 x 230V 32A 3P CEE - 1 x 230V 16A 3P SCHUKO

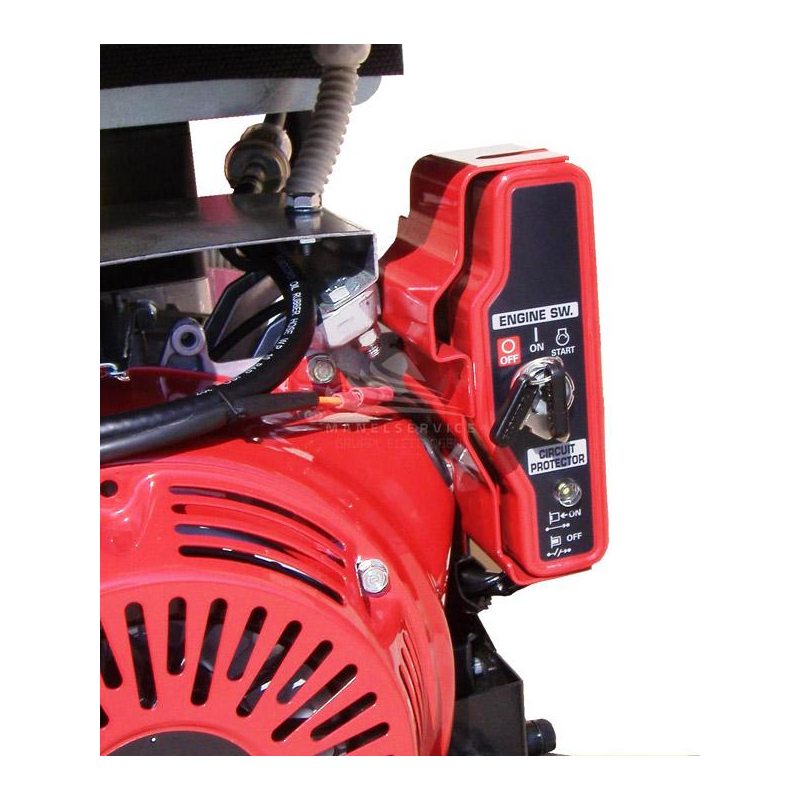

Engine

Honda GX270

Engine rpm (rpm)

3000

Starting system

Electric

Engine capacity (cm³)

270

Number cylinders

1

Oil capacity (L)

1.1

Cooling

Air

Fuel tank capacity (L)

20

Consumption (L/h)

2.4 at 100% of the load

Running time (h)

8.33 at 100% of the load

Acoustic power

95 dB(A)

Acoustic pressure

70 dB(A) at 7 m

Length (mm)

750

Width (mm)

560

Height (mm)

620

Dry weight (Kg)

82

Silenced

No

Super silenced

No

ATS Switch device

Optional

Voltage regulator

No

Engine manufacturer

Honda
