Data sheet

Phase

Single phase / Three phase

Maximum power single phase (KW)

2.6

Maximum power single phase (KVA)

3.3

Maximum power three phase (KW)

8

Maximum power three phase (KVA)

10

Fuel

Gasoline

Frequency (Hz)

50

Voltage (V)

230 / 400

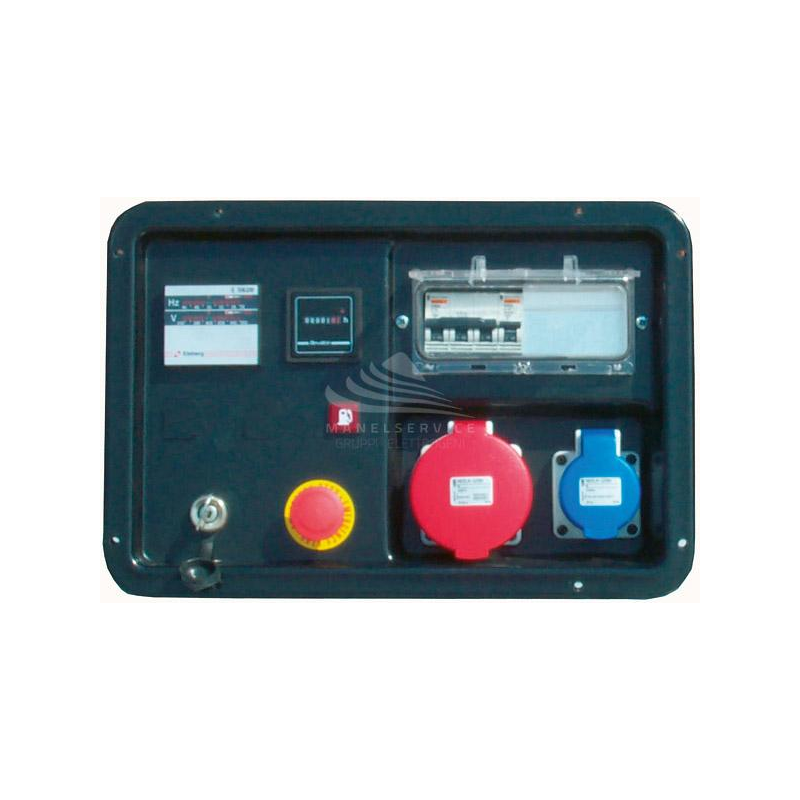

Sockets configuration

1 x 400V 32A 5P CEE - 1 x 230V 16A 3P CEE

Engine

Honda GX630R

Engine rpm (rpm)

3000

Starting system

Electric

Engine capacity (cm³)

688

Number cylinders

2

Oil capacity (L)

1.9

Cooling

Air

Fuel tank capacity (L)

20

Consumption (L/h)

3.9 at 100% of the load

Running time (h)

5.12 at 100% of the load

Acoustic power

92 dB(A)

Acoustic pressure

67 dB(A) at 7 m

Length (mm)

1070

Width (mm)

563

Height (mm)

921

Dry weight (Kg)

190

Silenced

Yes

Super silenced

Yes

ATS Switch device

Optional

Voltage regulator

No

Engine manufacturer

Honda

Specific References
