Data sheet

Phase

Single phase / Three phase

Maximum power single phase (KW)

2.2

Maximum power single phase (KVA)

2.7

Maximum power three phase (KW)

6

Maximum power three phase (KVA)

7.5

Fuel

Gasoline

Frequency (Hz)

50

Voltage (V)

230 / 400

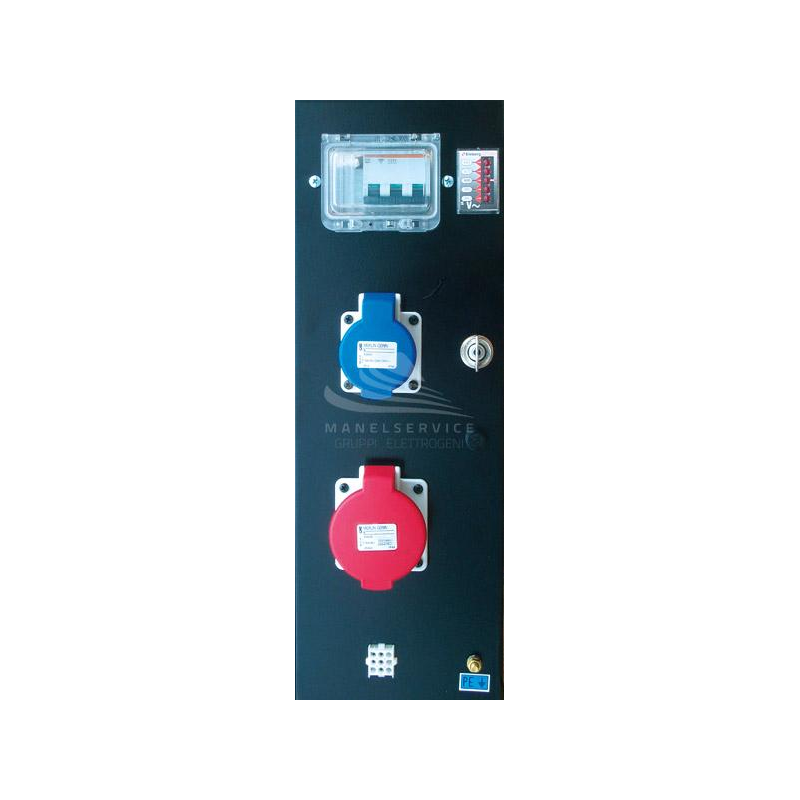

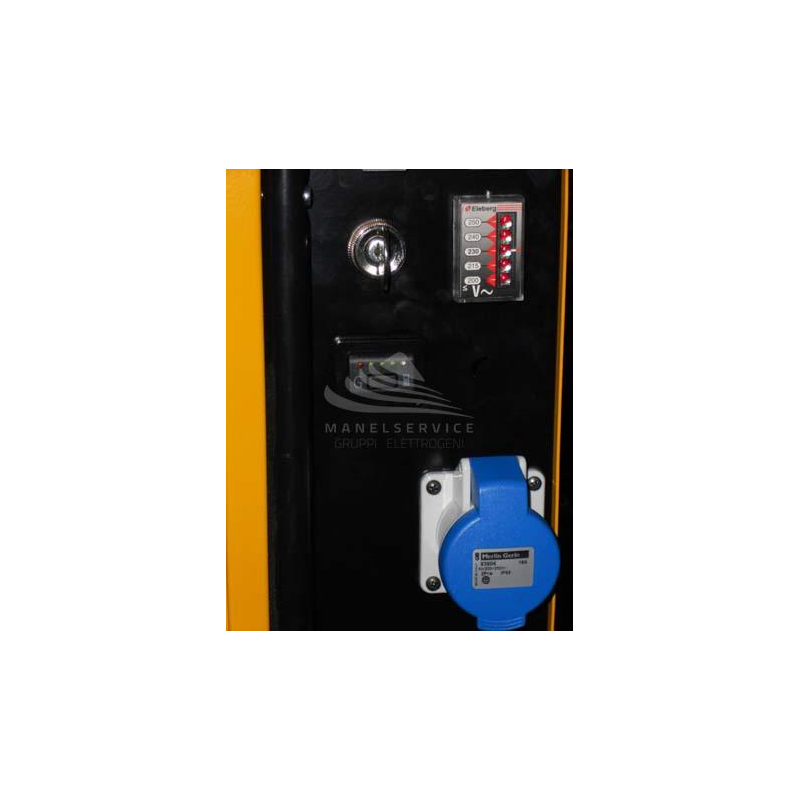

Sockets configuration

1 CEE 5P 400V 16A + 1 CEE 3P 230V 16A

Engine

Honda GX390, OHV

Engine rpm (rpm)

3000

Starting system

Electric

Engine capacity (cm³)

390

Number cylinders

1

Oil capacity (L)

1.1

Cooling

Air

Fuel tank capacity (L)

15

Consumption (L/h)

3.1 at 100% of the load

Running time (h)

4.83 at 100% of the load

Acoustic power

88 dB(A)

Acoustic pressure

63 dB(A) at 7 m

Length (mm)

1100

Width (mm)

540

Height (mm)

650

Dry weight (Kg)

140

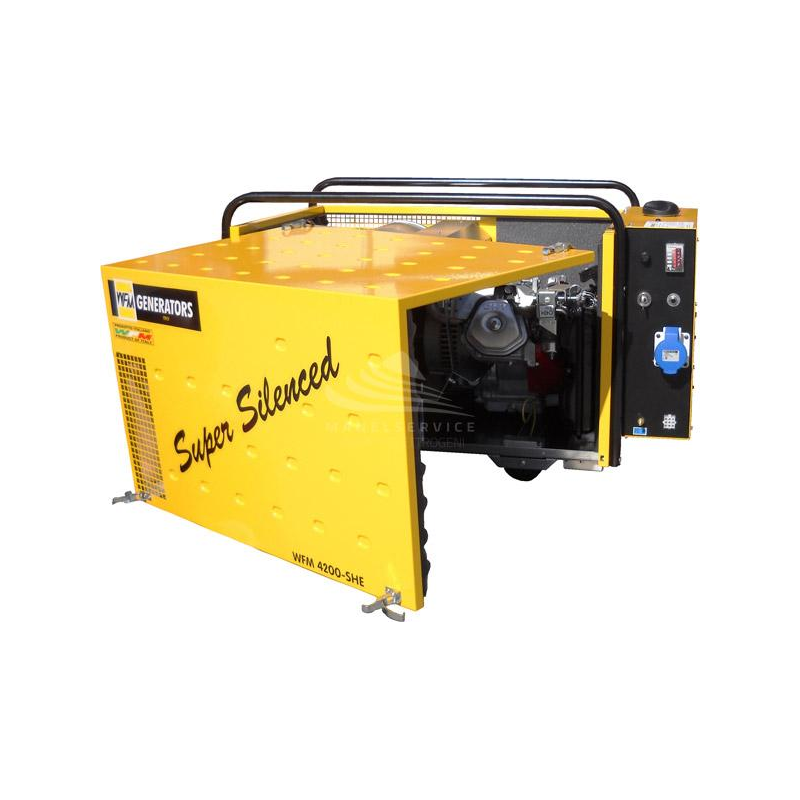

Silenced

Yes

Super silenced

Yes

ATS Switch device

Optional

Voltage regulator

No

Engine manufacturer

Honda
