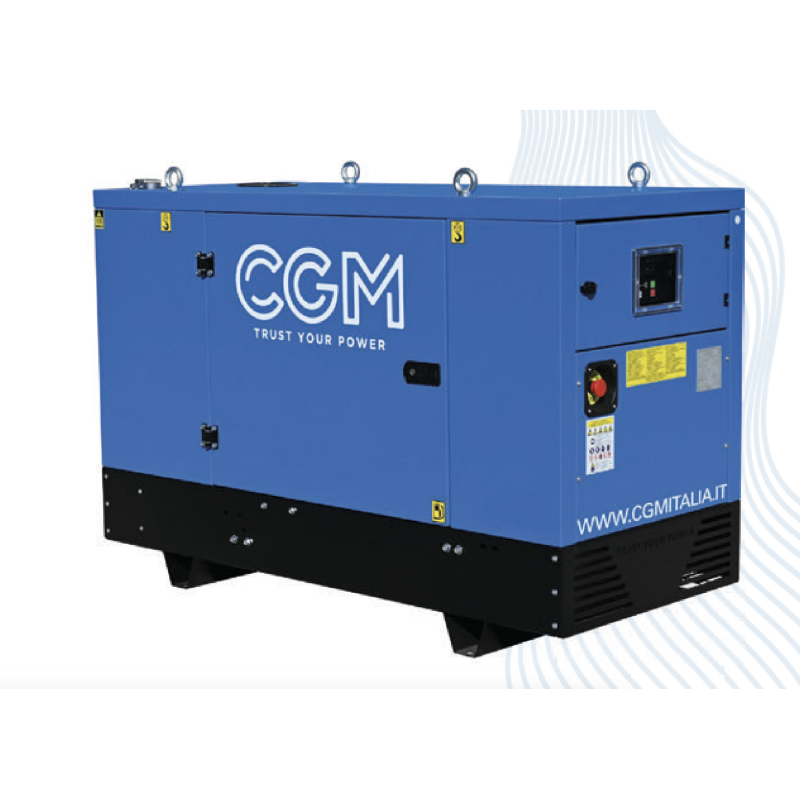

CGM V20KH Generator Set with Automatic Control Panel 400V STAGE5 22KVA

TheCGM V20KH Generator Set with Automatic Control Panel 400V STAGE5 22KVA is a high-performance professional solution designed for industrial and residential applications requiring reliability and constant power. Equipped with a Kohler KDI 1903 M 3-cylinder, water-cooled diesel engine, it guarantees efficient and long-lasting operation at 1500 rpm in full compliance with the Stage 5 emissions regulations.

This generator delivers a maximum three-phase power of 22 kVA (17.6 kW) and a continuous power of 20 kVA (16 kW), with AVR voltage regulator to maintain output stability even under variable loads. The self-excited brushless alternator ensures low maintenance requirements and a long life.

Equipped with a 400 V three-phase connection terminal block, the generator has an electric start and can be configured with an optional ATS switch panel for automatic start in the event of a mains failure. The 55-litre tank guarantees an autonomy of approximately 13.4 hours with a consumption of 4.1 L/h at 75% load.

Thanks to the silenced cabin, the noise level is kept to just 68 dB(A) at 7 metres, making it suitable even for use in noise-sensitive environments. With compact dimensions (1580 x 735 x 1105 mm) and a dry weight of 575 kg, the CGM V20KH combines power, efficiency and practicality in a single device.
If you are looking for a product like the CGM v20KH-C20 then you can consult the entire range of CGM generators or other types of products in our catalogue to find the one that best suits your needs.

Technical Features:

Phase type: Single phase / Three phase
Maximum three-phase power (kW): 17.6
Continuous three-phase power (kW): 16
Maximum three-phase power (kVA): 22
Continuous three-phase power (kVA): 20
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Socket configuration: Terminal block
Engine: Kohler KDI 1903 M
Engine speed (rpm): 1500
Speed ​​governor: Mechanical
Starting: Electric
Displacement (cm³): 1861
Number of cylinders: 3
Cooling: Water
Alternator: Self-excited, brushless
Number of poles: 4
Fuel tank capacity (L): 55
Consumption (L/h): 4.1 at 75% load
Autonomy (h): 13.4
Sound pressure: 68 dB(A) at 7 m
Length (mm): 1580
Width (mm): 735
Height (mm): 1105
Dry weight (kg): 575
AVR: Yes
Silenced: Yes
Bore x stroke (mm): 88 x 102
Protection rating: IP44
Product type: Generator set
ATS switch panel: Optional
Voltage regulator: AVR
Engine brand: Kohler
Emissions standard: Stage 5
