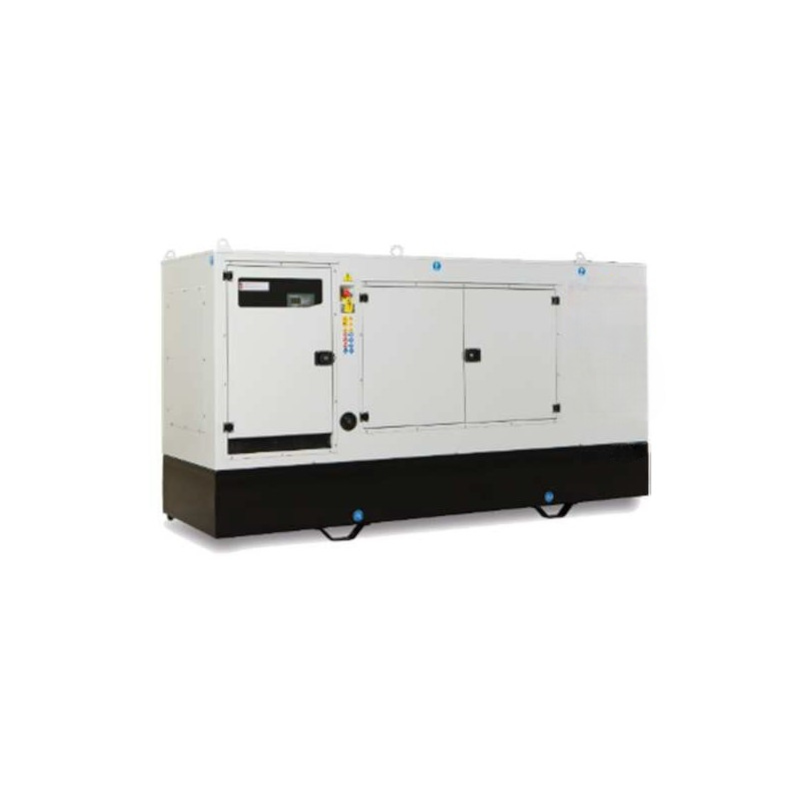

550KVA Silenced Generator Set

The 550 kVA three-phase silenced generator set is a high-performance diesel generator, capable of providing 550 kVA (416 kW) of maximum power and 500 kVA (400 kW) in continuous use at 50 Hz, with 230/400 V voltage, ideal for industrial and plant applications that require stable and reliable energy. Equipped with an 8-cylinder HYUNDAI DP158LD engine with 14,618 cm³, 1500 rpm with electronic governor and electric start, combined with a 4-pole Stamford alternator, it guarantees high efficiency, prompt response to loads and continuity of service even during prolonged operation. The 320-litre tank, with a consumption of 83.4 L/h, combined with the silenced and super-silenced cabin that ensures a sound pressure of only 73 dB(A) at 7 metres, the IP23 protection rating and the provision for an optional ATS switch panel, make this 550 kVA three-phase diesel generator the ideal solution as a primary or emergency source for companies, construction sites, commercial structures and critical systems where high power, low noise and maximum reliability are required.

Technical Features:

Phase type: Three-phase​
Maximum three-phase power: 416 kW (550 kVA)​
Continuous three-phase power: 400 kW (500 kVA)​
Fuel: Diesel
Frequency: 50 Hz​
Voltage: 230 / 400 V
Engine: HYUNDAI DP158LD​
Engine speed: 1500 rpm​
Speed ​​governor: Electronic
Starter: Electric​
Displacement: 14,618 cm³​
Number of cylinders: 8 (V-configuration)​
Alternator: Stamford
Number of poles: 4
Fuel tank capacity: 320 L
Consumption: 83.4 L/h (at reference load)
Sound pressure: 73 dB(A) at 7 m
Length: 4300 mm
Width: 1600 mm
Height: 2250 mm
Dry weight: 4300 kg
Silenced: Yes
Super silenced: Yes
ATS switch panel: Optional
Protection Rating: IP23
Emissions Regulation: Not Emitted
