Data sheet

Phase

Three phase

Maximum power three phase (KW)

26

Continuous power three phase (KW)

24.4

Maximum power three phase (KVA)

32.5

Continuous power three phase (KVA)

30.5

Fuel

Diesel

Frequency (Hz)

50

Voltage (V)

400

Sockets configuration

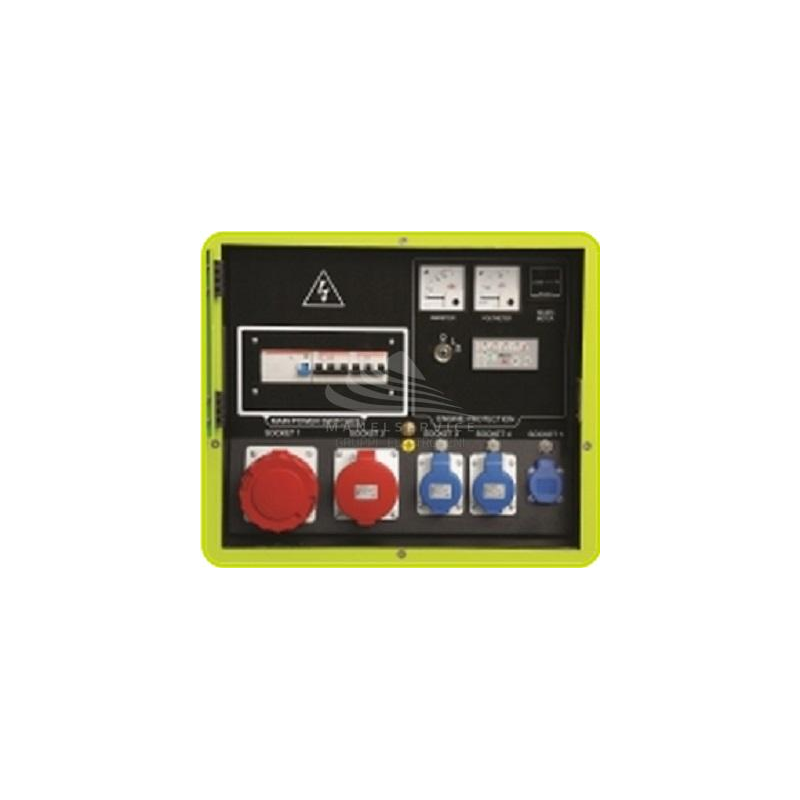

1 x 400V 63A 3P+N+T - 1 x 400V 32A 3P+N+T CEE - 2 x 230V 16A 2P+T CEE - 1 x 230V 16A SCHUKO

Engine

Yanmar 4TNV98-IGPGE, naturally aspirated

Speed governor

Mechanical

Starting system

Electric

Engine capacity (cm³)

3319

Number cylinders

4

Cylinders' position

In line

Oil capacity (L)

10.5

Cooling

Water

Alternator

Mecc Alte ECP28-VL/4, brushless

Poles

4

Fuel tank capacity (L)

68

Consumption (L/h)

5.8 at 75% of the load / 7.7 at 100% of the load

Running time (h)

11.7 at 75% of the load / 8.8 at 100% of the load

Acoustic power

95 dB(A)

Acoustic pressure

66 dB(A) at 7 m

Length (mm)

2000

Width (mm)

920

Height (mm)

1310

Dry weight (Kg)

773

Inverter

No

AVR

Yes

Compound

No

Silenced

Yes

Super silenced

Yes
