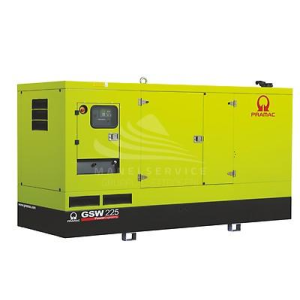

PRAMAC GSW225V COFANATO CON QUADRO COMANDO AUTOMATICO

PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
search
  • PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
  • PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
PRAMAC
SU211TWA002 /
New product

OUT OF PRODUCTION

Technical features
Phase
Three phase
Maximum power three phase (KW)
176
Continuous power three phase (KW)
160.37
Maximum power three phase (KVA)
220
Continuous power three phase (KVA)
200.46
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
400
Engine
VOLVO TAD753GE, turbo intercooled
Speed governor
Electronic
Starting system
Electric
Engine capacity (cm³)
7150
Number cylinders
6
Cylinders' position
In line
Oil capacity (L)
34
Cooling
Water
Alternator
Mecc Alte ECO38-2SN/4, brushless
Poles
4
Fuel tank capacity (L)
350
Consumption (L/h)
35.6 at 75% of the load / 44.9 at 100% of the load
Running time (h)
9.8 at 75% of the load / 7.8 at 100% of the load
Acoustic power
94 dB(A)
Acoustic pressure
65 dB(A) at 7 m
Length (mm)
3400
Width (mm)
1250
Height (mm)
1980
Dry weight (Kg)
2540
Silenced
Yes
Super silenced
Yes
ATS Switch device
Optional
Voltage regulator
AVR
Engine manufacturer
Volvo
Details
* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
Technical Sheet / Manuals

Scheda tecnica GSW225V COFANATO

(875.19k)

Technical data GSW225V COVERED

(896.77k)

Disegno installazione GSW225V

(385.82k)

Disegno installazione GSW225V

(424.2k)
