Data sheet

Phase

Three phase

Maximum power three phase (KW)

156.8

Continuous power three phase (KW)

143.22

Maximum power three phase (KVA)

196

Continuous power three phase (KVA)

179.02

Fuel

Diesel

Frequency (Hz)

50

Voltage (V)

400

Engine

VOLVO TAD752GE, turbo intercooled

Emissions Regulations

Stage 3A

Speed governor

Electronic

Starting system

Electric

Engine capacity (cm³)

7150

Number cylinders

6

Cylinders' position

In line

Oil capacity (L)

34

Cooling

Water

Alternator

Mecc Alte ECO38-1SN/4, brushless

Poles

4

Fuel tank capacity (L)

350

Consumption (L/h)

32.6 at 75% of the load / 40.5 at 100% of the load

Running time (h)

10.7 at 75% of the load / 8.6 at 100% of the load

Acoustic power

94 dB(A)

Acoustic pressure

65 dB(A) at 7 m

Length (mm)

3400

Width (mm)

1250

Height (mm)

1980

Dry weight (Kg)

2224

Silenced

Yes

Super silenced

Yes

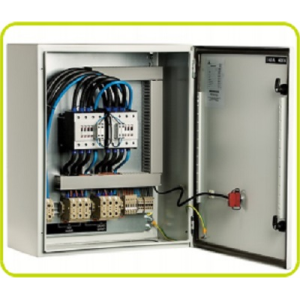

ATS Switch device

Optional

Voltage regulator

AVR

Engine manufacturer

Volvo
