• New
    Generator Set PRAMAC GDW35P-FNE 33KVA Super Silenced
    Generator Set PRAMAC GDW35P-FNE 33KVA Super Silenced
    Generator Set PRAMAC GDW35P-FNE 33KVA Super Silenced
    Generator Set PRAMAC GDW35P-FNE 33KVA Super Silenced
    Generator Set PRAMAC GDW35P-FNE 33KVA Super Silenced

    Generator Set PRAMAC GDW35P-FNE 33KVA Super Silenced

    BC300TPA001

    Exhaust emissions level not Emission Certified - Non-Certified Emissions.

    STANDARD EQUIPMENT:

    • 4-pole switch
    • Batteries
    • Plastic fuel tank
    • Spill containment basin
    • Oil and water sensor
    • Manual oil extraction pump


    Length (L): 2200 mm
    Width (W): 1020 mm
    Height (H): 1292 mm
    Weight: 959 Kg
    Acoustic power (LWA): 93 dB(A)
    Sound pressure @ 1 m: 76 dB(A)
    Sound pressure @ 7 m: 64 dB(A)
    Battery voltage: 12 V
    Voltage: 400/230 V
    Frequency: 50 Hz
    Phases: 3
    Performance:
    ESP Power: 33.0 kVA
    PRP Power: 30.0 kVA
    Engine:
    Model: Perkins 1103A-33G
    Displacement: 3300 cm³
    Fuel: Diesel
    Alternator:
    Model: Mecc Alte ECP28 VL4 C
    Winding: Standard

    List price
    27,285.30 € tax incl.
    22,365.00 € tax excl.
    Discounted Price
    14,093.44 € tax incl.
    11,552.00 € tax excl.
    Shipping from 295.00 € to Italy buy it today.
    Calculate Shipping Cost
    Custom Quote
    Product: Generator Set PRAMAC GDW35P-FNE 33KVA Super Silenced

    PERSONAL DATA


    Ask a question
    Product: Generator Set PRAMAC GDW35P-FNE 33KVA Super Silenced
    Offer on letterhead
    Product: Generator Set PRAMAC GDW35P-FNE 33KVA Super Silenced
    PRAMAC
    BC300TPA001

    Data sheet

    Phase
    Single phase / Three phase
    Maximum power three phase (KW)
    26.4
    Continuous power three phase (KW)
    24
    Maximum power three phase (KVA)
    33
    Continuous power three phase (KVA)
    30
    Fuel
    Diesel
    Frequency (Hz)
    50
    Voltage (V)
    230 / 400
    Engine
    PERKINS 1103A-33G
    Engine rpm (rpm)
    1500
    Speed governor
    Mechanical
    Starting system
    Elettrico
    Engine capacity (cm³)
    3300
    Number cylinders
    3
    Cylinders' position
    In line
    Cooling
    Water
    Alternator
    Mecc Alte - ECP28 VL4 C
    Poles
    4
    Acoustic pressure
    64 dB(A) at 7 m
    Length (mm)
    2200
    Width (mm)
    1020
    Height (mm)
    1292
    Dry weight (Kg)
    959
    Silenced
    Yes
    Super silenced
    Yes
    ATS Switch device
    Optional
    Engine manufacturer
    Perkins
    Power factor control
    0.8

    Specific References

    Generator Set PRAMAC GDW35PFNE 33KVA Super Silent

    The Generator Set PRAMAC GDW35PFNE 33KVA is a reliable and powerful solution to ensure continuous power supply in any situation. With an emergency power (ESP) of 33 kVA/26.4 kW and continuous power (PRP) of 30 kVA/24 kW, this PRAMAC GDW35PFNE Generator Set is ideal for industrial, commercial, or residential applications.


    The PRAMAC GDW35PFNE 33KVA Generator Set is aEnclosed Version and includes:

    PFT: Plastic tank
    ACP: Automatic control panel


    Technical Features of the PRAMAC GDW35PFNE Super Silent Generator Set:

    Length (L): 2200 mm
    Width (W): 1020 mm
    Height (H): 1292 mm
    Weight: 959 kg
    Acoustic power (LWA): 93 dB(A)
    Sound pressure @ 1 m: 76 dB(A)
    Sound pressure @ 7 m: 64 dB(A)
    Battery voltage: 12 V
    Voltage: 400/230 V
    Frequency: 50 Hz
    Phases: 3
    Performance:
    ESP Power: 33.0 kVA
    PRP Power: 30.0 kVA
    Engine:
    Model: Perkins 1103A-33G
    Displacement: 3300 cm³
    Fuel: Diesel
    Alternator:
    Model: Mecc Alte ECP28 VL4 C
    Winding: Standard

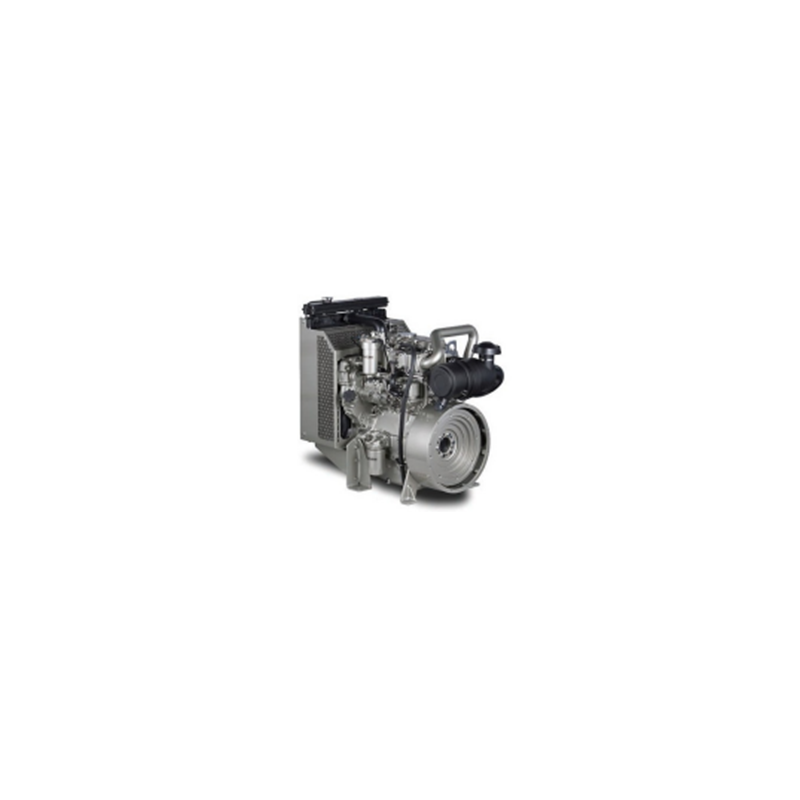

    Perkins Engine

    The heart of the PRAMAC GDW35PFNE 33KVA Generator Set is the Perkins 1103A-33G engine, known for its reliability and optimal performance:


    Rated speed: 1500 rpm

    Displacement: 3300 cm³, with 3 inline cylinders

    Aspiration type: natural

    Specific fuel consumption at 75% PRP: 214.5 g/kWh

    12 V electric starting system


    Mecc Alte Alternator

    The Mecc Alte ECP28 VL4 C alternator ensures high efficiency (87.9%) and reliability:


    Stand-by power at 27°C: 33 kVA

    Continuous power at 40°C: 30 kVA

    IP 23 protection

    Brushless type with H insulation class

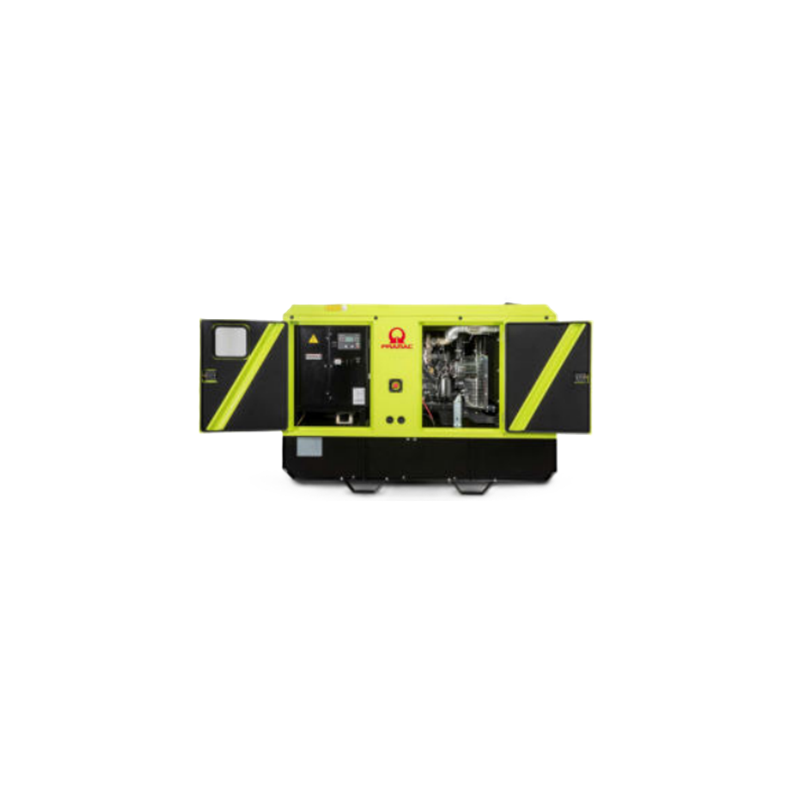

    Enclosed Version

    The PRAMAC GDW35P-FNE 33KVA Generator Set is available in an enclosed version, with a galvanized steel frame resistant to corrosion and sound-absorbing materials that minimize noise levels:



    Fuel Tank and Autonomy of the PRAMAC GDW35PFNE Generator Set

    The internal 80-liter plastic fuel tank ensures autonomy of up to 15.18 hours at 75% of PRP power.


    Automatic Control Panel (ACP)

    This generator is equipped with an advanced automatic control panel that provides:


    Automatic start function in case of power failure

    Complete monitoring and protection

    Detailed event log with date and time

    Remote control and I/O expansion modules


    Dimensions and Weight of PRAMAC GDW35PFNE

    Length: 1875 mm

    Width: 1000 mm

    Height: 1186 mm

    Weight: 746 kg



    The Generator Set PRAMAC GDW35PFNE 33KVA is the perfect choice for those seeking reliability, performance, and durability. Ideal for meeting energy needs in industrial and commercial environments, this generator stands out for its efficiency, robustness, and versatility.
    PRAMAC GDW35PFNE Generator: the ideal choice for those looking for a powerful, reliable, and silent generator.


    Looking for different technical features? HERE you can find the area dedicated to PRAMAC or other specialized brand generators.
    Images and technical data are not binding.
