Data sheet

Phase

Three phase

Maximum power three phase (KW)

114.4

Continuous power three phase (KW)

103.82

Maximum power three phase (KVA)

143

Continuous power three phase (KVA)

129.78

Fuel

Diesel

Frequency (Hz)

50

Voltage (V)

400

Engine

VOLVO TAD532GE, turbo intercooled

Emissions Regulations

Stage 2

Speed governor

Electronic

Starting system

Electric

Engine capacity (cm³)

4760

Number cylinders

4

Cylinders' position

In line

Oil capacity (L)

13

Cooling

Water

Alternator

Mecc Alte ECP34-1L, brushless

Poles

4

Fuel tank capacity (L)

240

Consumption (L/h)

21.9 at 75% of the load / 29.5 at 100% of the load

Running time (h)

11 at 75% of the load / 8.1 at 100% of the load

Length (mm)

2200

Width (mm)

1000

Height (mm)

1743

Dry weight (Kg)

1434

Silenced

No

Super silenced

No

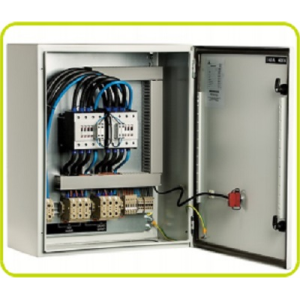

ATS Switch device

Optional

Voltage regulator

AVR

Engine manufacturer

Volvo

Specific References
