PRAMAC GBW22P GENERATOR SET MCP THREE-PHASE 17.6KW

The PRAMAC GBW22P is a powerful three-phase generator set with 22 kVA output, designed to provide reliable emergency or backup power for a wide range of applications. Thanks to the Perkins 404J-22G engine and the Mecc Alte ECP28-M4 C alternator, this generator offers high performance and long service life.

Main features:

Power: With a maximum output of 22 kVA, this generator can supply power to a wide range of electrical devices, from small tools to larger equipment.

Low noise: Thanks to the soundproofing system, the noise level is extremely reduced, making it ideal for applications that require low acoustic impact.

Compact and easy to handle: Its compact dimensions and relatively light weight make the generator easy to transport and move.

Reliable engine: The Perkins engine is known for its robustness and reliability, ensuring long-lasting performance over time.

Emission compliance: The generator complies with Stage V emission standards, ensuring low environmental impact.

Manual control panel: The manual control panel allows easy management of all generator functions.

Versatile configuration: With multiple sockets, the generator can be connected to a wide variety of electrical devices.

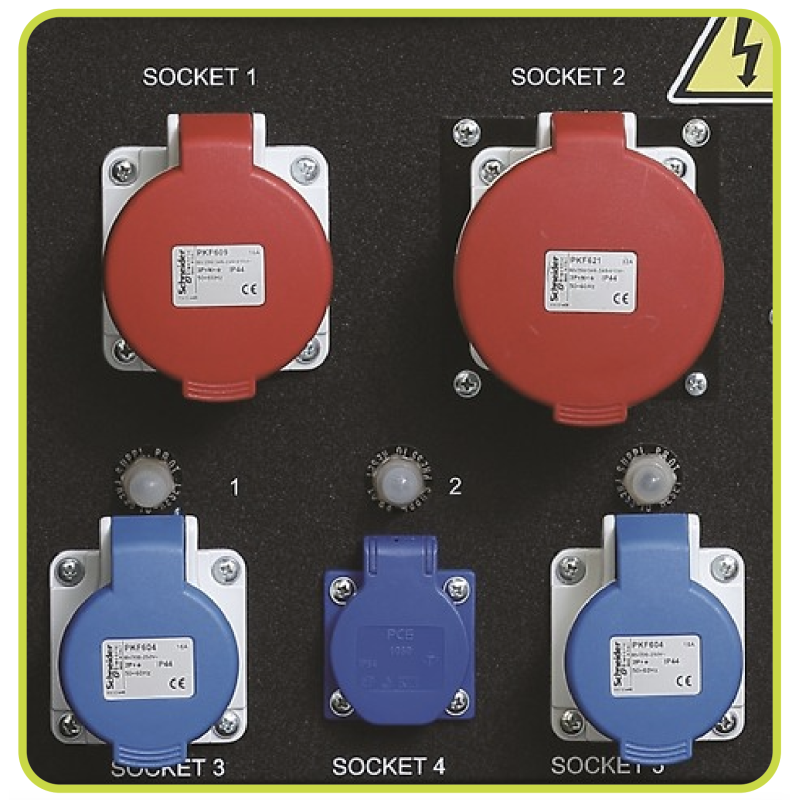

Socket configuration:
- 400V 32A 3P+N+T CEE x 1
- 400V 16A 3P+N+T CEE x 1
- 230V 16A 2P+T CEE x 2
- 230V 16A SCHUKO x 1

Technical specifications PRAMAC GBW22P THREE-PHASE:
Phase type: Three-phase
Maximum three-phase power: 17.60 kW - 22 kVA
Continuous three-phase power: 16.10 kW - 20.12 kVA
Fuel: Diesel
Frequency: 50 Hz
Voltage: 400 V
Engine: Perkins 404J-22G
Speed governor: Mechanical
Starting system: Electric
Displacement: 2220 cm³
Cylinder arrangement: In-line
Oil capacity: 6 L
Cooling: Water
Alternator: Mecc Alte ECP28-M4 C
Number of poles: 4
Fuel tank capacity: 51 L
Fuel consumption at 75% load: 4 L/h
Autonomy at 75% load: 12.75 h
Sound power level: 95 dB(A)
Sound pressure level: 66 dB(A) at 7 m
Length: 1645 mm
Width: 870 mm
Height: 1060 mm
Dry weight: 546 kg
