GENSET MG275SI Generator Group StageV 275KVA AVR

MG 275 S-I
      GENSET MG275SI Generator Group StageV 275KVA AVR
      GENSET MG275SI Generator Group StageV 275KVA AVR
      GENSET MG275SI Generator Group StageV 275KVA AVR
      GENSET MG275SI Generator Group StageV 275KVA AVR
      GENSET MG275SI Generator Group StageV 275KVA AVR

      Phase type: Single-phase / Three-phase
      Maximum power Single-phase: 91.6 KVA / 73.28 KW
      Maximum power three-phase: 275 KVA / 220 KW
      Motor: FPT NEF 67 TE8W
      Engine speed: 1500 rpm
      Emission standards: Stage V
      Power: 320 hp (238.5 kWm)
      Starter: Electric
      Fuel: Diesel
      Voltage available at terminals: 230 / 400 V
      Frequency: 50 Hz
      Voltage regulator: AVR
      Tank capacity: 420 litres
      Consumption at 80% load: 38.8 Lt/h
      Acoustic pressure: 98 (73 dB at 7 m)
      Length: 3915 mm
      Width: 1325 mm
      Height: 2198 mm
      Dry weight: 2760 Kg

      List price
      84,180.00 € tax incl.
      69,000.00 € tax excl.
      Discounted Price
      47,183.50 € tax incl.
      38,675.00 € tax excl.
      Calculate Shipping Cost
      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      GENSET
      MG 275 S-I

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power single phase (KW)
      73.28
      Maximum power single phase (KVA)
      91.67
      Maximum power three phase (KW)
      220
      Maximum power three phase (KVA)
      275
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Sockets configuration
      Terminal box
      Engine
      FPT NEF 67 TE8W
      Emissions Regulations
      Stage 5
      Engine rpm (rpm)
      1500
      Starting system
      Electric
      Engine capacity (cm³)
      6
      Number cylinders
      6
      Fuel tank capacity (L)
      420
      Consumption (L/h)
      38.8 at 80% load
      Running time (h)
      10.1
      Length (mm)
      3915
      Width (mm)
      1325
      Height (mm)
      2198
      Dry weight (Kg)
      2760
      Silenced
      Yes
      Super silenced
      Yes
      Product type
      Generator
      ATS Switch device
      Optional
      Voltage regulator
      AVR

      Specific References

      New

      GENSET MG275SI GENERATOR GROUP STAGEV 275KVA AVR

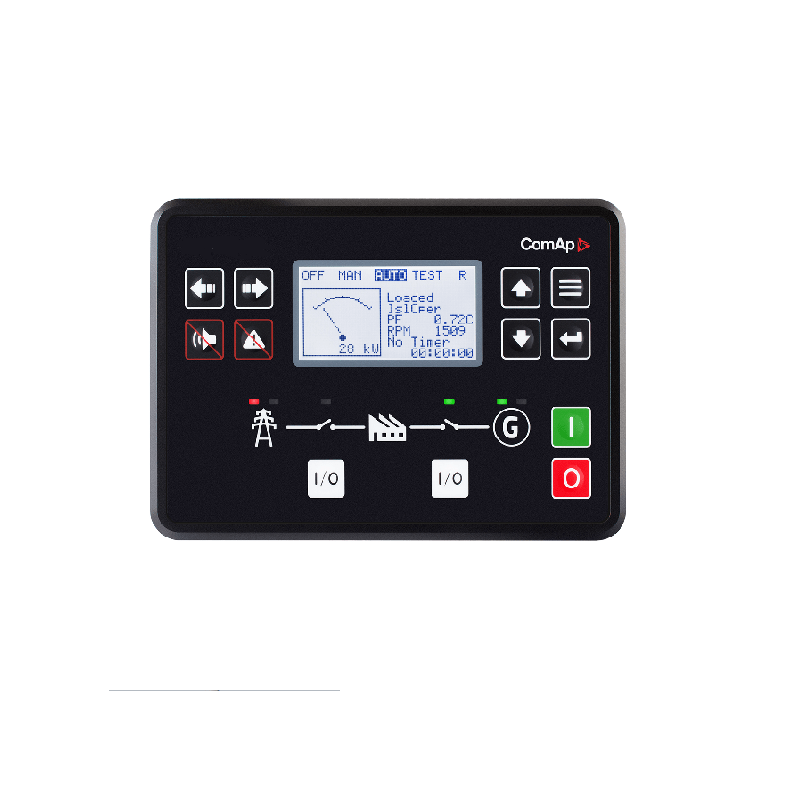

      The GENSET MG275SI Generator Group StageV 275KVA AVR is equipped with
      an advanced digital control panel that enables precise monitoring of all
      essential generator parameters. These parameters include generator voltage,
      grid voltage, battery voltage, amperage, frequency, and fuel level.
      The system is also equipped with automated safety devices that ensure engine
      protection in the event of low oil pressure or high coolant temperatures.

      Robust Construction and Easy Handling

      Designed to withstand even the most challenging conditions, the
      GENSET MG275SI StageV features a robust construction with high-quality
      materials. Its forklift-compatible base allows for easy transportation and

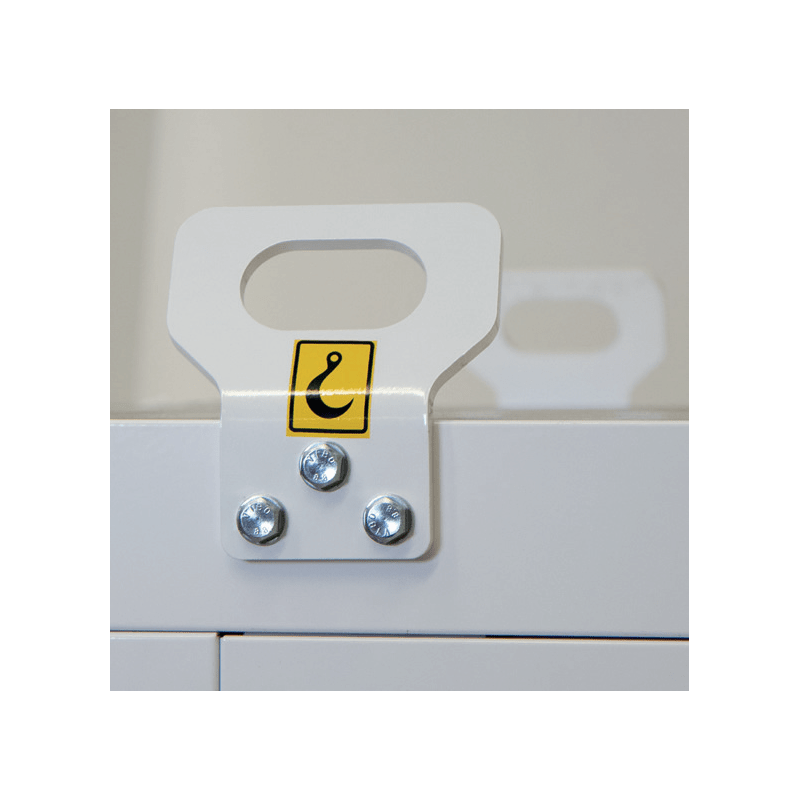

      hassle-free installation, while the four integrated lifting hooks ensure safe
      handling in any situation. These features make the GENSET MG275SI StageV
      the perfect choice for those who need a reliable and easily
      maneuverable generator.

      Quiet Performance and Extended Autonomy

      The GENSET MG275SI StageV 275KVA AVR is designed to operate quietly,
      with a sound power level of 95 Lwa. This feature makes it particularly
      suitable for use in noise-sensitive environments. Additionally, with a
      420-liter tank, it offers extended autonomy, allowing for continuous operation
      without frequent refueling interruptions.

      Flexibility and Adaptability

      The flexibility of the GENSET MG275SI is further enhanced by the presence of
      a three-phase and single-phase socket panel, enabling a wide range of
      applications. Upon request, a catalytic muffler can be installed, offering
      greater operational versatility. This adaptability makes the GENSET a
      highly versatile generator, capable of meeting the needs of a wide spectrum
      of industries.

      Eco-Sustainability and Compliance with Standards

      The GENSET MG275SI StageV complies with European StageV emission
      standards, reducing environmental impact and promoting an eco-sustainable
      approach. This makes it not only a choice of power and reliability but
      also a conscious choice for the future of our planet.

      Main Technical Specifications of the GENSET MG275SI StageV:

      Three-Phase Power: 275 KVA / 220 KW
      Tank Capacity: 420 Liters
      Weight: 2280 kg
      Dimensions (LxWxH): 3800 x 1100 x 1820 mm
      Engine: FPT NEF67 TM7, 1500 rpm, 6 cylinders
      Cooling: Water
      Starting: Electric
      Automatic Voltage Regulator (AVR)
      Super Silent

      Are you looking for a product with different technical characteristics? HERE you can find the area dedicated to GENSET generators or other specialized brands.

      Non-binding images and technical data.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
