GENSET MG110SSI Generator Group Stage0 110KVA AVR

Name: GENSET MG110SSI Generator Group Stage0 110KVA AVR
Brand: GENSET
SKU: MG 110 SS-I Stage0
Price: 23879.06 EUR
Availability: InStock

Reference MG 110 SS-I Stage0

Phase type: Single-phase / Three-phase
Continuous power use Single-phase
Maximum power Single-phase: 36.6 KVA / 29.28 KW
Three-phase continuous use power:
Three-phase maximum power: 110 KVA / 88 KW
Engine: FPT NEF45 TM2A
Engine speed: 1500 rpm
Emission standards: Stage 0
Power: 126 HP (94 kWm)
Starter: Electric
Fuel: Diesel
Voltage available at terminals: 230 / 400 V
Frequency: 50 Hz
Voltage regulator: AVR

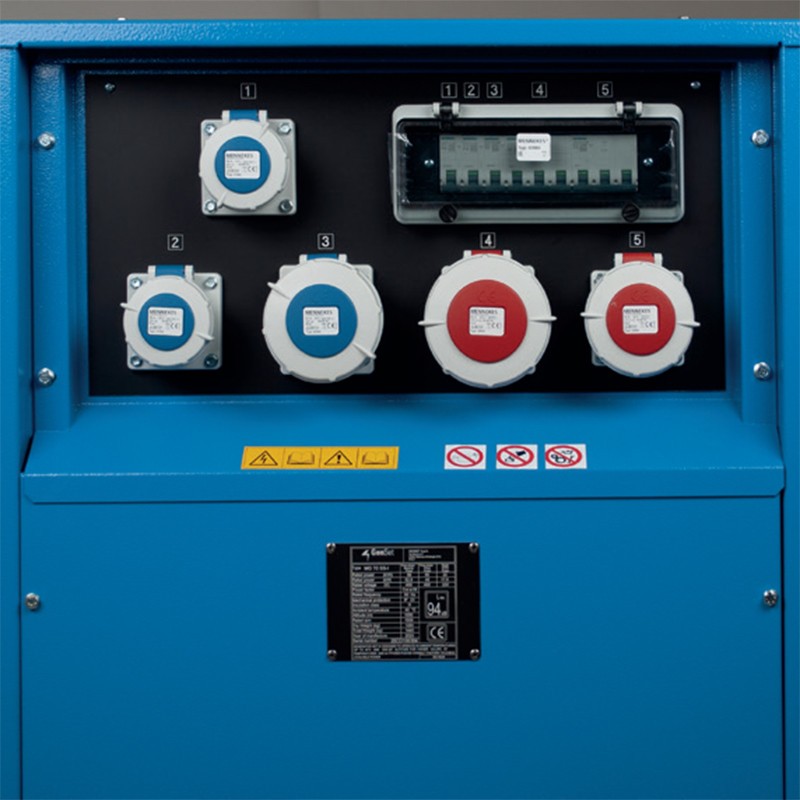

Socket panel: 1 x CEE 400V 32A / 1 x CEE 400V 16A / 1 x CEE 230V 32A / 2 x CEE 230V 16A
Tank capacity: 230 litres
Consumption at 80% load: 16.2 Lt/h
Acoustic pressure: 97 (72 dB a 7 mt)
Length: 3000 mm
Width: 1150 mm
Height: 1950 mm
Dry weight: 1645Kg

List price

43,920.00 € tax incl.

36,000.00 € tax excl.

Discounted Price

23,879.06 € tax incl.

19,573.00 € tax excl.

Shipping from 585.60 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference MG 110 SS-I Stage0

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KW): 29.28
Maximum power single phase (KVA): 36.6
Maximum power three phase (KW): 88
Maximum power three phase (KVA): 110
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x CEE 400V 32A / 1 x CEE 400V 16A / 1 x CEE 230V 32A / 2 x CEE 230V 16A
Engine: FPT NEF45 TM2A
Emissions Regulations
Engine rpm (rpm): 1500
Speed governor: Mechanical
Starting system: Elettrico
Engine capacity (cm³): 4500
Number cylinders: 4
Fuel tank capacity (L): 230
Consumption (L/h): 16.2 at 80% load
Running time (h): 14.19 at 80% load
Acoustic pressure: 72 dB(A) at 7 m
Length (mm): 3000
Width (mm)
Height (mm): 1950
Dry weight (Kg): 1645
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: Optional
Voltage regulator: AVR

Specific References

Condition New

GENSET MG110SSI GENERATOR GROUP STAGE0 110KVA AVR

The GENSET MG110SSI Generator Group Stage0 110KVA AVR is equipped with an FPT NEF45 TM2A
Diesel engine, capable of delivering 110 KVA of power, complete with an AVR voltage regulator.

The GENSET MG110SSI Stage0 model is characterized by a soundproofed enclosure that
significantly reduces noise pollution, reaching noise levels of up to 72 dB at a distance
of 7 meters, making it an extremely quiet generator.

The GENSET MG110SSI Stage0 Generator Group provides efficient and quiet operation, thanks to
the powerful FPT NEF45 TM2A engine, which can deliver a maximum power of 110 KVA.
Furthermore, this GENSET MG110SSI is equipped with electric or automatic start via an
ATS panel, allowing for automatic activation in the event of a power outage.

Automatic Start Panel ATS:

The GENSET MG110SSI Generator Group is designed for use with an ATS automatic start panel.
This feature eliminates any concerns related to blackouts, as the ATS panel can automatically
start the GENSET MG110SSI, allowing you to continue your activities without interruptions and
without data loss.

Technical Specifications of the GENSET MG110SSI Stage0:

Phase Type: Single-phase / Three-phase
Single-phase Rated Power:
Single-phase Maximum Power: 36.6 KVA / 29.28 KW
Three-phase Rated Power:
Three-phase Maximum Power: 110 KVA / 88 KW
Engine: FPT NEF45 TM2A
Engine Speed: 1500 rpm
Emissions Standard: Stage0
Starting: Electric
Fuel: Diesel
Available Voltage: 230 / 400 V
Frequency: 50 Hz
Voltage Regulator: AVR
Socket Panel: 1 x CEE 400V 32A / 1 x CEE 400V 16A / 1 x CEE 230V 32A / 2 x CEE 230V 16A
Fuel Tank Capacity: 230 liters
Consumption at 80% Load: 16.2 L/h
Sound Pressure: 97 dB (72 dB at 7 m)
Dimensions: Length 3000 mm, Width 1150 mm, Height 1950 mm
Dry Weight: 1645 kg

Are you looking for a product with different technical characteristics? HERE you can find the area dedicated to GENSET generators or other specialized brands.

Non-binding images and technical data.
