GENSET MG33SSY Generator Group StageV Single-Phase Three-Phase 33KVA

Name: GENSET MG33SSY Generator Group StageV Single-Phase Three-Phase 33KVA
Brand: GENSET
SKU: MG 35 SS-Y StageV
Price: 24755.02 EUR
Availability: InStock

Reference MG 35 SS-Y StageV

Maximum three-phase power: 33 KVA
Maximum three-phase power: 26.4 KW
Maximum single-phase power: 11 KVA
Maximum single-phase power: 8.8 KW
Acoustic power: 92 (67 dB at 7 m)
Fuel: Diesel
Voltage: 230/400 V
Frequency: 50 Hz
Engine: Yanmar 4TNV88
Emission standard: Stage V
No. of cylinders: 4
Power: 46.1 HP (34.4 kWm)
Displacement: 3319 cm3
Cooling: Aqcua
Starter: Electric
Tank capacity: 140lt
Fuel consumption @75%: 6.4 Lt/h
Power rating: IP23
Length: 2090 mm
Width: 935 mm
Height: 1570 mm
Weight: 950 Kg
Super silenced
AVR

List price

44,164.00 € tax incl.

36,200.00 € tax excl.

Discounted Price

24,755.02 € tax incl.

20,291.00 € tax excl.

Shipping from 359.90 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference MG 35 SS-Y StageV

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KW): 8.8
Maximum power single phase (KVA): 11
Maximum power three phase (KW): 26.4
Maximum power three phase (KVA): 33
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 63A CEE - 1 x 400V 32A CEE - 3 x 230V 32A CEE - 2 x 230V 16A CEE
Engine: Yanmar 4TNV88, 4 stroke
Emissions Regulations: Stage 5
Engine rpm (rpm): 1500
Starting system: Electric
Engine capacity (cm³): 3319
Number cylinders: 4
Cooling: Water
Alternator: Synchronous
Protection degree: IP23
Motor insulation class: H
Fuel tank capacity (L): 140
Consumption (L/h): 6.4
Running time (h): 22
Acoustic power: 92 dB(A)
Acoustic pressure: 67 dB(A) at 7 m
Length (mm): 2090
Width (mm): 935
Height (mm): 1570
Dry weight (Kg): 950
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: Optional
Voltage regulator: AVR
Engine manufacturer: Yanmar

Specific References

Condition New

GENSET MG33SSY GENERATOR GROUP STAGEV SINGLE-PHASE THREE-PHASE 33KVA

The GENSET MG35SSY Generator Group StageV Single-Phase-Three-Phase, with 33 KVA, exemplifies excellence among
super-silent generators, providing a reliable and versatile solution for powering both single-phase and
three-phase applications. Powered by a Yanmar 4TNV88 engine running at 1500 RPM, known for its robustness and
durability, the GENSET MG35SSY StageV Generator Group ensures optimal performance under any operating condition.

Key Features of the GENSET MG35SSY StageV:

Power for heavy loads: It delivers a maximum power output of 33 KVA (26.4 KW), making it ideal for supporting
significant loads in industrial and professional environments.
Suitable for single-phase use: The generator offers a maximum power output of 11 KVA (8.8 KW), providing great
flexibility of use.
Super silent: With a noise level of 92 dB, equivalent to 67 dB at 7 meters, it is perfect for environments where
low noise is required.
Diesel-powered: Equipped with a 140-liter fuel tank, it ensures extended autonomy with a fuel consumption of
just 6.4 liters/hour at 75% load.
Efficient cooling: The water cooling system of the Yanmar engine ensures stable operation even under high loads.
Integrated AVR: It includes an automatic voltage regulator (AVR) for stable and protected power delivery, ideal for
sensitive equipment.

Design and Functionality of the GENSET MG35SSY StageV:

The GENSET MG35SSY StageV Generator Group features a compact and robust structure with dimensions of 2090mm
in length, 935mm in width, and 1570mm in height, and a total weight of 950 kg. It is equipped with

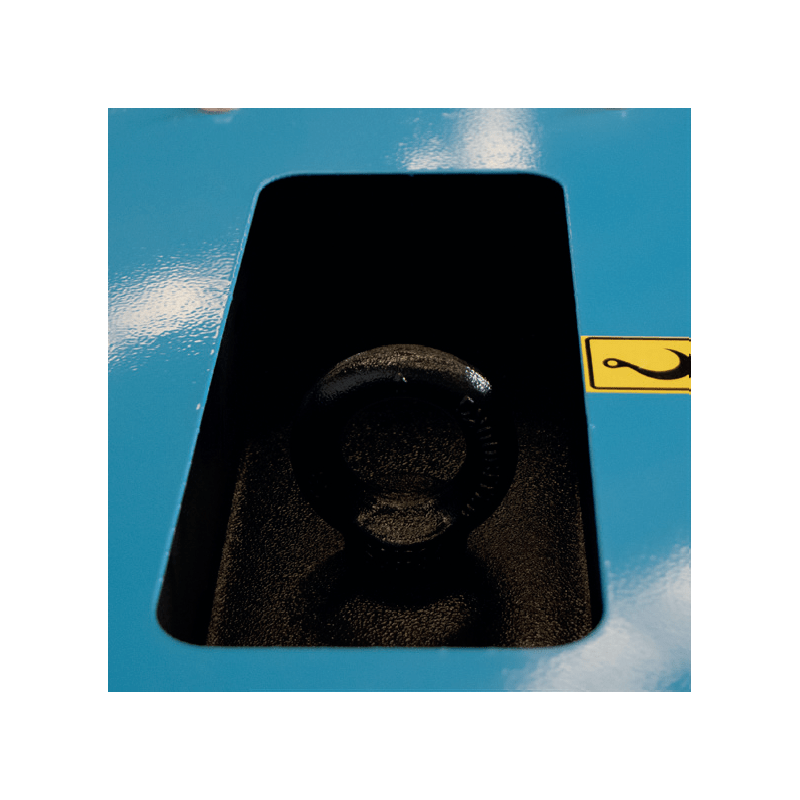

a central lifting hook and a forklift base for easy transport and installation on-site.

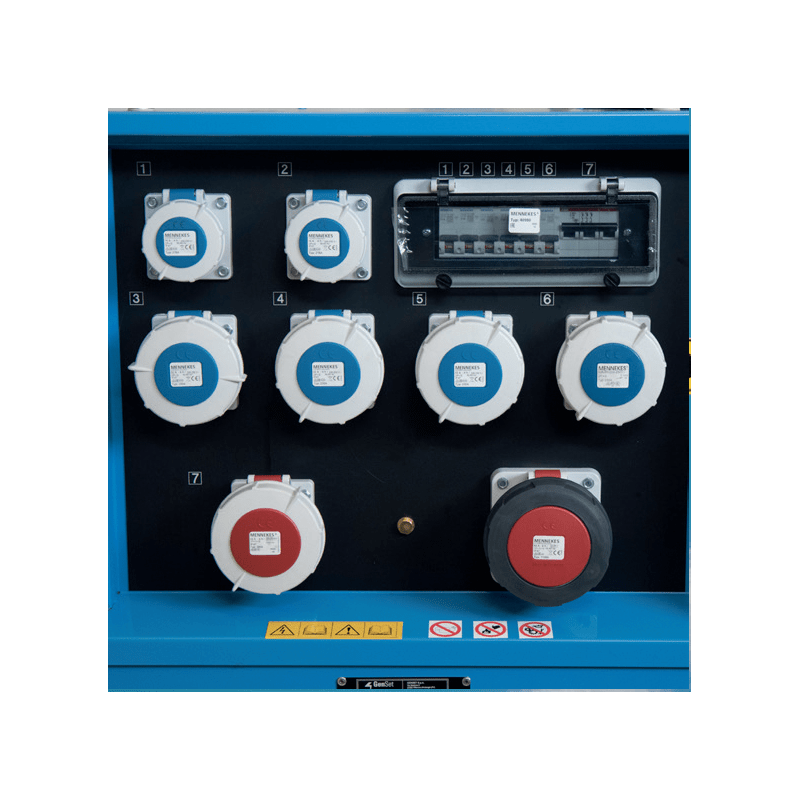

The GENSET MG35SSY StageV is provided with a single-phase and three-phase socket panel, with

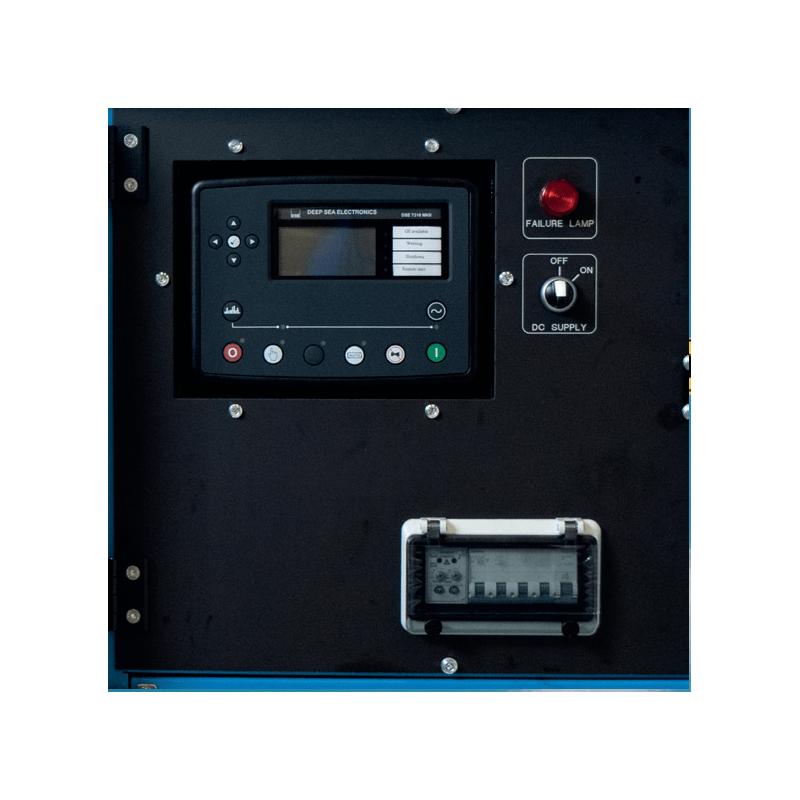

integrated control logic and a connector for automatic start-up, ensuring safe and practical use.

The GENSET MG35SSY StageV Generator Group is the perfect solution for those in need of a powerful, silent, and
versatile energy source for professional applications, offering a secure and long-lasting investment for
any energy requirement.

GENSET MG35SSY StageV
