GENSET MG33ISY GENERATOR GROUP STAGE0 250LT 33KVA AVR

The GENSET MG33ISY Generator Group Stage0 250lt is a high-quality silent generator designed to
ensure superior performance and reliability across a wide range of operating conditions. This model
belongs to the GENSET Smart series, recognized for its compactness and durability, making
it perfect for frequent use and easy, quick transportation.

The compact and robust design of the GENSET MG33ISY Stage0 makes it particularly suitable for
applications that require frequent relocations. Its solid structure ensures long-lasting durability and
resistance even in challenging environments, while the Yanmar engine operating at 1500 RPM
provides efficient and reliable performance. Thanks to its advanced configuration, the
GENSET MG33ISY Stage0 is equipped for automatic starting, ensuring ease of use and
operational convenience.

Main Features of GENSET MG33ISY Stage0 250lt AVR:

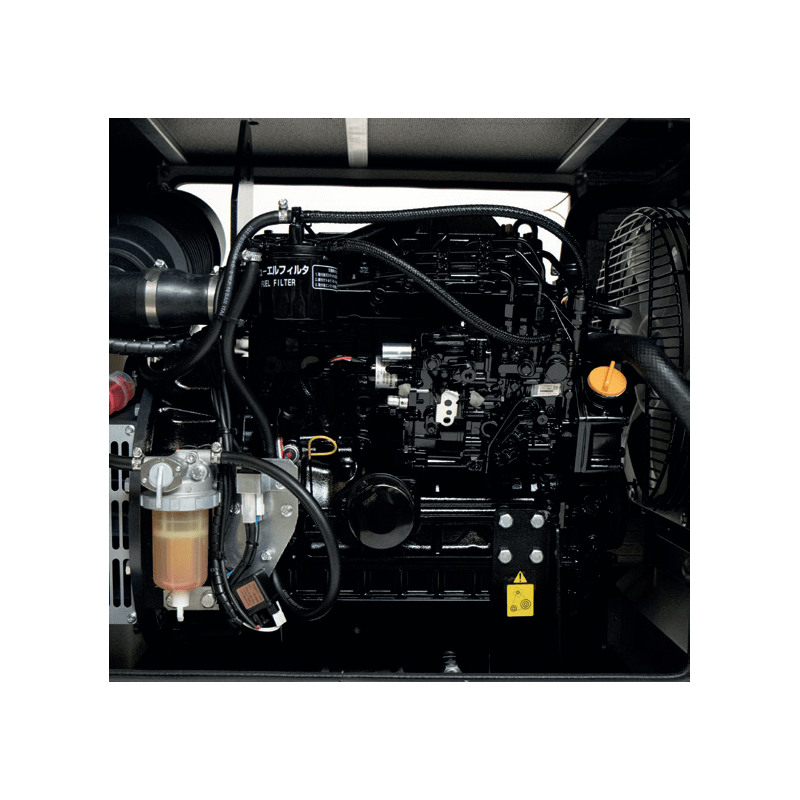

Yanmar Engine at 1500 RPM: The Yanmar diesel engine delivers 46.1 HP (34.4 kWm),
ensuring efficient and long-lasting operation.
Tank Capacity: With a 250-liter tank, the MG33ISY allows for long periods of operation without
the need for frequent refueling.
Stage 0: Compliant with Stage0 regulations, this generator offers reliable performance without
additional complications.
Automatic Shutdown System: Equipped with a safety system that shuts down the engine in case of
anomalies such as low fuel level, low oil pressure, or high coolant temperature.
Ease of Maintenance: Designed for easy access during maintenance, ensuring a long operational
life and uninterrupted performance.

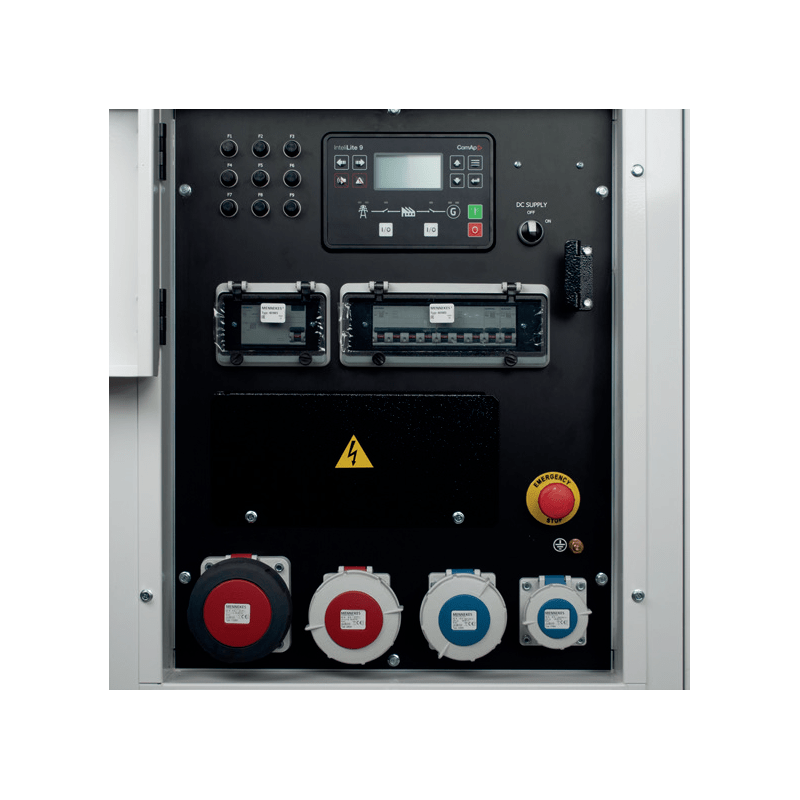

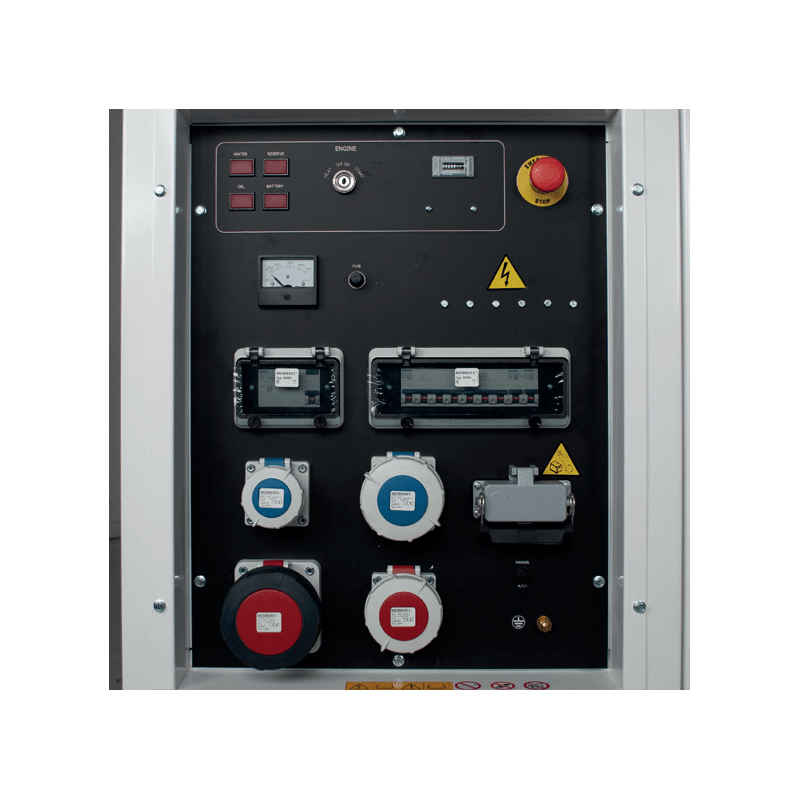

Control Panel and Outlets: Includes a control panel with multiple outlets for single-phase and
three-phase connections, allowing versatility in use.

Technical Specifications of GENSET MG33ISY Generator Group Stage0 250lt AVR:

Maximum Power: 33 kVA (three-phase) and 11 kVA (single-phase) with a power factor of cos φ 0.8.
Fuel Consumption: 6.4 liters/hour at 80% load.
Noise Level: 96 dB (71 dB at 7 meters), ensuring relatively quiet operation.
Dimensions: 1935x915x1536 mm, ideal for confined spaces.
Weight: 960 kg, facilitating handling and transportation.

Standard Equipment:

Hour Meter and Voltmeter
Emergency Stop Button
Fuel Level Indicator
Power Output Protection and Differential Switch
Connector for AMF-ATS Panel and Remote Control
Lifting Tubes and Lifting Hook
Liquid Collection Tray

The GENSET MG33ISY Group Stage0 250lt is the perfect choice for those in need of
a reliable and powerful generator with simple maintenance and long operational capability.
This model represents an advanced and versatile solution, ideal for a wide range of industrial and
commercial applications. With its technical features and standard equipment, the
GENSET MG33ISY Generator Group Stage0 250lt is synonymous with quality and performance in the
generator sector.
