GENSET MGF33Y SINGLE-PHASE/THREE-PHASE GENERATOR GROUP STAGE V 33KVA AVR

The GENSET MGF33Y Stage V Generator Set is a perfect solution for those seeking a reliable, quiet, and
efficient power source. Equipped with a Yanmar engine operating at 1500 RPM, the GENSET MGF33Y is
designed for automatic starting, ensuring simple and efficient operation in any situation.

The openable canopy of the GENSET MGF33Y Stage V Generator Set allows for easy and quick
maintenance, while the lifting hook and forkable base facilitate practical and safe handling. With a
maximum three-phase power of 33 KVA and a maximum single-phase power of 11 KVA,
the GENSET MGF33Y Stage V Generator Set is ideal for a wide range of applications.

Technical Specifications of the GENSET MGF33Y Stage V Generator Set:

Maximum Three-Phase Power: 33 KVA
Maximum Three-Phase Power: 26.4 KW
Maximum Single-Phase Power: 11 KVA
Maximum Single-Phase Power: 8.8 KW
Fuel: Diesel
Voltage: 230/400 V
Frequency: 50 Hz
Acoustic Power: 97 Lwa (72 dB at 7 meters)
Engine: Yanmar 4TNV98 (STAGE V)
Number of Cylinders: 4
Engine Power: 46.1 HP (34.4 kWm)
Displacement: 3319 cm³
Cooling: Liquid
Starting: Electric
Fuel Tank Capacity: 40 liters
Consumption: 6.4 liters/hour
Protection Rating: IP23
Dimensions (L x W x H): 1752 x 835 x 1170 mm
Weight: 726 kg

Key Features of the GENSET MGF33Y Stage V Generator Set:

Quiet and Efficient: With an acoustic power of 97 Lwa and only 72 dB at 7 meters, the GENSET MGF33Y
Stage V Generator Set is suitable for environments where noise needs to be minimized.
Easy Maintenance: The openable canopy allows quick access for maintenance, making the
GENSET MGF33Y Stage V Generator Set very practical to manage.

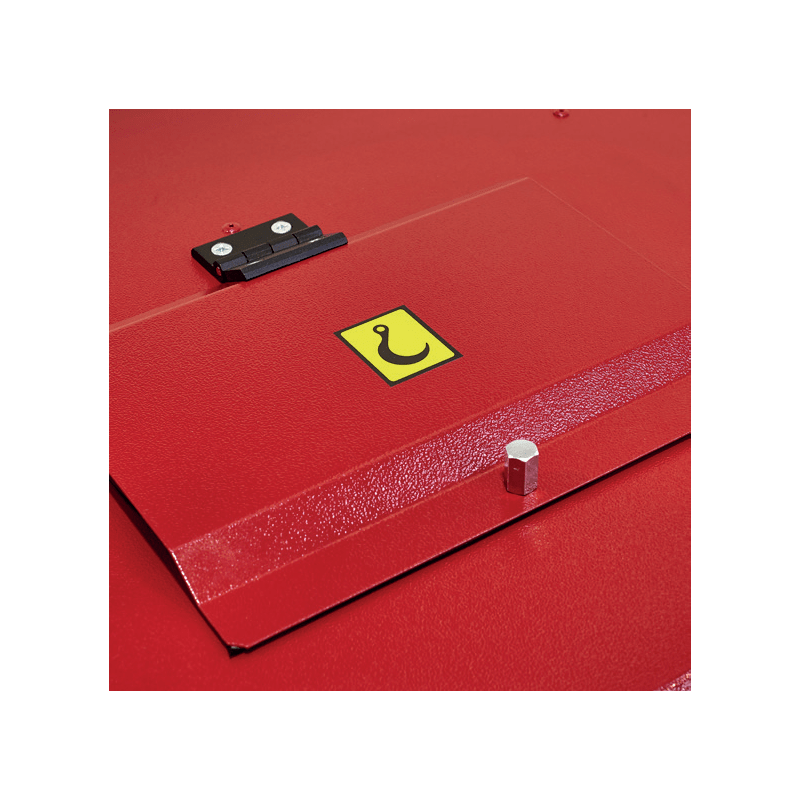

Simple Handling: The lifting hook and forkable base facilitate the transport and installation of the
GENSET MGF33Y Stage V Generator Set, ensuring safe handling.
Automatic Starting: Designed for automatic starting, enhancing the reliability and convenience of the
GENSET MGF33Y Stage V Generator Set.

The GENSET MGF33Y Stage V represents an excellent choice for those needing a powerful, quiet, and
easy-to-maintain three-phase generator. Designed to deliver high and lasting performance,
il GENSET MGF33Y is ideal for industrial and commercial applications where reliability is crucial.
The Yanmar engine, known for its reliability and efficiency, ensures effective operation with reduced fuel
consumption, making the GENSET MGF33Y Stage V Generator Set a cost-effective and sustainable choice.

Looking for a power generator with different characteristics? HERE you can find the full range of products from GENSET or other brands specializing in the field

Images and technical data are not binding and may be subject to revision by the supplier.
