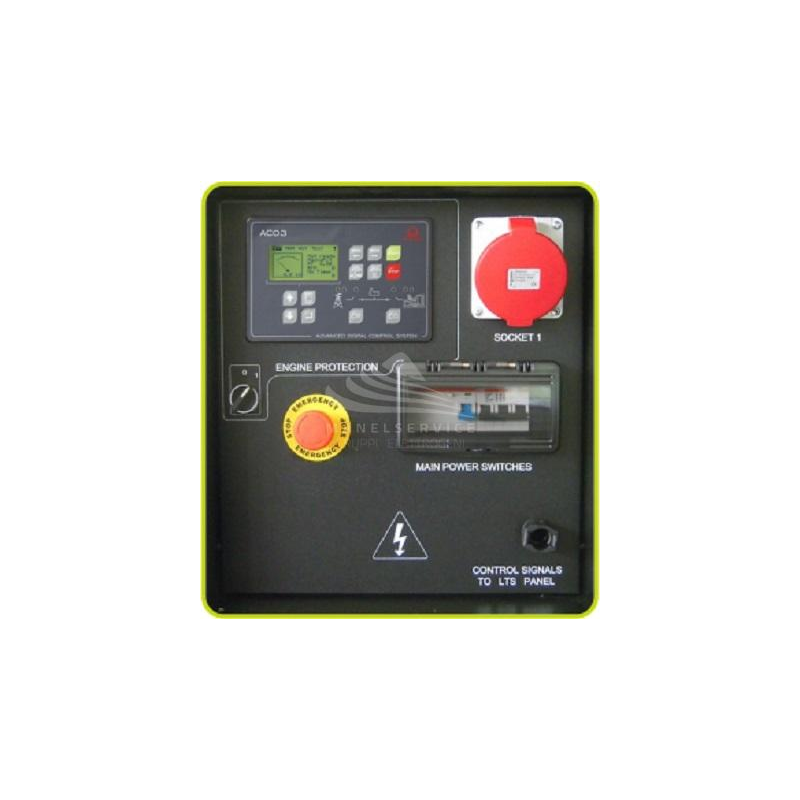

PRAMAC GBW22Y GENSET WITH AUTOMATIC CONTROL PANEL

Reference SH200TYAJ02 /

OUT OF PRODUCTION

Maximum power Three-phase: 15.48 KW
Three-phase continuous use power: 14.1 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Yanmar 4TNV88-BGPGE STAGE V
Starting: Electric
Consumption: 5 Lt/h at 100% of the load
Length: 1600 mm
Width: 870 mm
Height: 1000 mm
Weight: 507 Kg
Compound

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference SH200TYAJ02 /

Data sheet

Phase: Three phase
Maximum power three phase (KW): 15.48
Continuous power three phase (KW): 14.1
Maximum power three phase (KVA): 19.35
Continuous power three phase (KVA): 17.63
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Sockets configuration: 1 x 400V 32A 3P+N+T CEE
Emissions Regulations: Stage 5
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 2190
Number cylinders: 4
Cylinders' position: In line
Oil capacity (L): 7.4
Cooling: Water
Alternator: Linz E1S13MF, with brushes
Poles: 4
Fuel tank capacity (L): 51
Consumption (L/h): 3.8 at 75% of the load / 5 at 100% of the load
Running time (h): 13.4 at 75% of the load / 10.1 at 100% of the load
Length (mm): 1600
Width (mm): 870
Height (mm): 1000
Dry weight (Kg): 507
Silenced: No
Super silenced: No
Product type: Generator
ATS Switch device: Optional
Voltage regulator: Compound
Engine manufacturer: Yanmar

Specific References

Condition New

The GBW series offers reliable and powerful machines, built for professional use in support of the power grid in case of blackouts or to serve isolated locations.
Easy to transport, install and position thanks to its compact size, this model is ideal for network emergency, construction, mobile workshops and industrial applications.
Available in open or hooded version.

● YANMAR/PERKINS diesel engines
● Water cooling
● Industrial silencer
● Fork base with trolleys
● MCP manual cabinet supplied as standard with 5 sockets.

The pictures are purely indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
