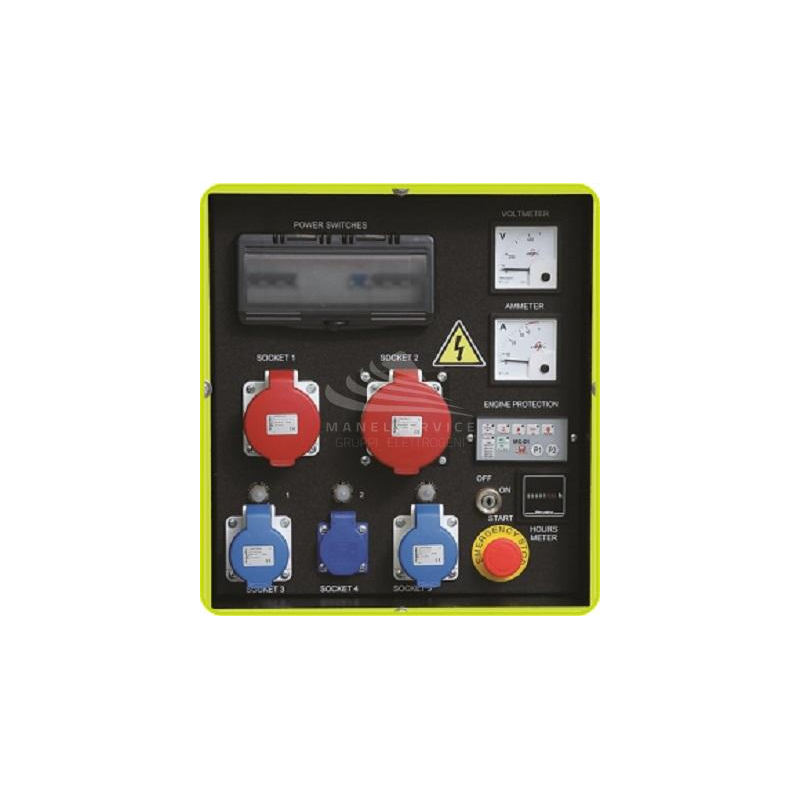

PRAMAC GBW15Y Generator Set Three-phase MCP 11.4KW Coffered with manual control panel

PRAMAC GBW15Y Generator Set Three-phase MCP 11.4KW Coffered with manual control panel

Name: PRAMAC GBW15Y Generator Set Three-phase MCP 11.4KW Coffered with manual control panel
Brand: PRAMAC
SKU: SB130TYAK00
Price: 6449 EUR
Availability: InStock

Reference SB130TYAK00

Phase type: Single-phase / Three-phase
Maximum three-phase power: 13.5 KVA / 11.44 KW
Continuous use three-phase power: 12.6 KVA / 10.4 KW
Fuel: Diesel
Voltage: 230/400 V
Frequency: 50 Hz
Engine: Yanmar 3TNV88-BGPGE
Starting: Electric
Consumption: 3.8 Lt / h at 100% of the load
Length: 1645 mm
Width: 870 mm
Height: 1072 mm
Weight: 430 Kg
Compound

List price

15,231.70 € tax incl.

12,485.00 € tax excl.

Discounted Price

7,867.78 € tax incl.

6,449.00 € tax excl.

Calculate Shipping Cost

Payment methods:

Product: PRAMAC GBW15Y Generator Set Three-phase MCP 11.4KW Coffered with manual control panel

Start of Rental

End of Rental

Where to collect / receive the Product

Do you need cables?

SÌNO

Additional Tank?

SÌNO

PERSONAL DATA

Name

Surname

Phone

Company

City

State

Postal Code

Country

VAT or CF

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Ask a question

Product: PRAMAC GBW15Y Generator Set Three-phase MCP 11.4KW Coffered with manual control panel

Full Name

Company

Phone

City

Country

Postal code

Message

reCAPTCHA

Offer on letterhead

Product: PRAMAC GBW15Y Generator Set Three-phase MCP 11.4KW Coffered with manual control panel

Name

Surname

Company

VAT

Phone

City

Country

Postal code

Shipping address

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference SB130TYAK00

Data sheet

Phase: Single phase / Three phase
Maximum power three phase (KW): 10.8
Continuous power three phase (KW): 10
Maximum power three phase (KVA): 13.5
Continuous power three phase (KVA): 12.6
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 32A 3P+N+T CEE - 1 x 400V 16A 3P+N+T CEE - 2 x 230V 16A 2P+T CEE - 1 x 230V 16A SCHUKO
Engine: Yanmar 3TNV88-BGPGE, naturally aspirated
Emissions Regulations: Stage 5
Engine rpm (rpm): 1500
Speed governor: Mechanical
Starting system: Elettrico
Engine capacity (cm³): 1642
Number cylinders: 3
Cylinders' position: In line
Oil capacity (L): 6.9
Cooling: Water
Alternator: Linz E1S13MD, with brushes
Poles: 4
Fuel tank capacity (L): 51
Consumption (L/h): 2.8 at 75% of the load / 3.8 at 100% of the load
Running time (h): 18 at 75% of the load / 13.5 at 100% of the load
Acoustic power: 93 dB(A)
Acoustic pressure: 64 dB(A) at 7 m
Length (mm): 1645
Width (mm): 870
Height (mm): 1072
Dry weight (Kg): 430
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: No
Voltage regulator: Compound
Engine manufacturer: Yanmar

Specific References

Condition New

PRAMAC GBW10P GENERATOR SET THREE-PHASE MCP 9.65KVA

The PRAMAC GBW10P single-phase/three-phase generator is equipped with a Perkins 403D-11G diesel engine, capable of delivering a power output of 9.65 KVA, complete with a Compound voltage regulator.

The PRAMAC GBW10P generator is fitted with an electric start and a manual control panel that allows you to view all electrical parameters of the engine and generator, monitor functions and operating status, manage the entire unit, and display any errors or alarms if they occur.

The PRAMAC GBW10P comes with a soundproof canopy, made of galvanized sheet metal, bent and electro-welded, with IP23 protection rating and side doors for both ordinary and extraordinary maintenance. The generator ensures efficient and quiet operation thanks to the Perkins 403D-11G diesel engine, which delivers a maximum power output of 9.65 KVA.

Technical specifications PRAMAC GBW10P MCP:
Phase type: Single-phase / Three-phase
Continuous power: 8.71 KVA / 6.97 KW
Maximum power: 9.65 KVA / 7.72 KW
Engine: Perkins 403D-11G
Engine speed: 1500 rpm
Emissions standard: Non-certified
Starting system: Electric
Fuel: Diesel
Available terminal voltage: 230 / 400 V
Frequency: 50 Hz
Voltage regulator: Compound
Tank capacity: 50 L
Fuel consumption at 75% load: 1.98 L/h
Autonomy at 75% load: 25.76 h
Noise level: 66 dB(A) @ 7 m
Length: 1645 mm
Width: 870 mm
Height: 1072 mm
Dry weight: 460 Kg

Sockets:
N.1 3P+N+T CEE 400V 32A
N.1 3P+N+T CEE 400V 16A
N.2 2P+T CEE 230V 16A
N.1 230V 16A SCHUKO

Are you looking for a generator similar to the PRAMAC GBW10P MCP but with different technical specifications? CLICK HERE to explore our dedicated section of PRAMAC generators or other specialized brands.
