PRAMAC GBW10Y Generator Set Three-phase 7.4KW MCP Enclosure and manual control panel

PRAMAC GBW10Y Generator Set Three-phase 7.4KW MCP Enclosure and manual control panel

Name: PRAMAC GBW10Y Generator Set Three-phase 7.4KW MCP Enclosure and manual control panel
Brand: PRAMAC
SKU: SB100TYAV00
Price: 5953 EUR
Availability: InStock

Maximum three-phase power: 7.47 KW
Three-phase continuous power: 6.81 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Yanmar 3TNV76-GPGE
Starter: Electric
Consumption: 2.6 Lt/h at 100% load
Length: 1645 mm
Width: 870 mm
Height: 1072 mm
Weight: 460 Kg

Compound

List price

7,262.66 € tax incl.

5,953.00 € tax excl.

Discounted Price

7,262.66 € tax incl.

5,953.00 € tax excl.

Shipping from 80.00 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Product: PRAMAC GBW10Y Generator Set Three-phase 7.4KW MCP Enclosure and manual control panel

Start of Rental

End of Rental

Where to collect / receive the Product

Do you need cables?

SÌNO

Additional Tank?

SÌNO

PERSONAL DATA

Name

Surname

Phone

Company

City

State

Postal Code

Country

VAT or CF

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Ask a question

Product: PRAMAC GBW10Y Generator Set Three-phase 7.4KW MCP Enclosure and manual control panel

Full Name

Company

Phone

City

Country

Postal code

Message

reCAPTCHA

Offer on letterhead

Product: PRAMAC GBW10Y Generator Set Three-phase 7.4KW MCP Enclosure and manual control panel

Name

Surname

Company

VAT

Phone

City

Country

Postal code

Shipping address

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference SB100TYAV00

Data sheet

Phase: Three phase
Maximum power three phase (KW): 7.47
Continuous power three phase (KW): 6.81
Maximum power three phase (KVA): 9.34
Continuous power three phase (KVA): 8.51
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Sockets configuration: 1 x 400V 32A 3P+N+T CEE - 1 x 400V 16A 3P+N+T CEE - 2 x 230V 16A 2P+T CEE - 1 x 230V 16A SCHUKO
Engine: Yanmar 3TNV76-GPGE, naturally aspirated
Emissions Regulations: Stage 5
Speed governor: Mechanical
Starting system: Elettrico
Engine capacity (cm³): 1116
Number cylinders: 3
Cylinders' position: In line
Oil capacity (L): 3.5
Cooling: Water
Alternator: Linz E1S13SB , with brushes
Poles: 4
Fuel tank capacity (L): 51
Consumption (L/h): 2 at 75% of the load / 2.6 at 100% of the load
Running time (h): 25.6 at 75% of the load / 19.2 at 100% of the load
Acoustic power: 93 dB(A)
Acoustic pressure: 64 dB(A) at 7 m
Length (mm): 1645
Width (mm): 870
Height (mm): 1072
Dry weight (Kg): 460
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: No
Voltage regulator: Compound
Engine manufacturer: Yanmar

Specific References

Condition New

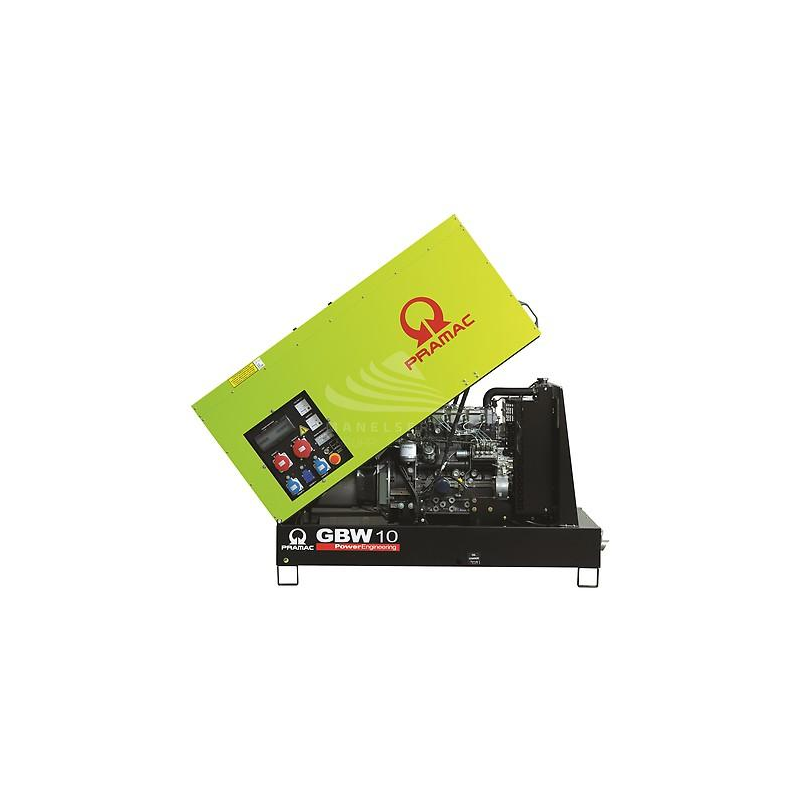

PRAMAC GBW10Y THREE-PHASE DIESEL GENERATOR MCP 7.4KW

The PRAMAC GBW10Y three-phase generator delivers 7.4 kW with a diesel engine running at 1500 rpm. The PRAMAC GBW10Y generator is equipped with electric start. The alternator of the PRAMAC GBW10Y generator has brushes with a compound voltage regulator. The Yanmar diesel engine makes the GBW10Y generator highly reliable, as it has been designed and built using high-quality materials.
Thanks to its soundproof canopy, this generator is super-silenced. The PRAMAC GBW10Y three-phase generator is suitable for outdoor use on construction sites or for small professional jobs outdoors. Easy to transport and maneuver thanks to its forkliftable base with wheels.

Technical specifications of the PRAMAC GBW10Y MCP Three-Phase Generator:
Maximum three-phase power: 7.47 kW
Continuous three-phase power: 6.81 kW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Yanmar 3TNV76-GPGE
Starting system: Electric
Fuel consumption: 2.6 L/h at 100% load
Length: 1645 mm
Width: 870 mm
Height: 1072 mm
Weight: 460 Kg
Compound

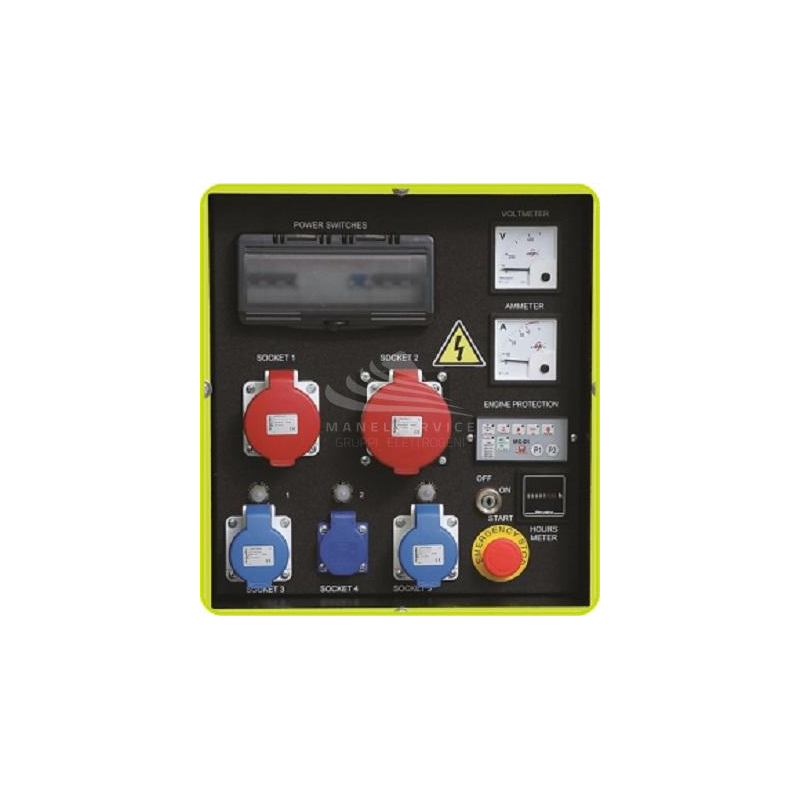

Sockets:
N.1 3P+N+T CEE 400V 32A
N.1 3P+N+T CEE 400V 16A
N.2 2P+T CEE 230V 16A
N.1 230V 16A SCHUKO

The PRAMAC GBW10Y generator is a professional diesel generator developed by Pramac with the features and equipment necessary to deliver a superior-class product. With its low noise level, the PRAMAC GBW10Y generator is ideal for use in residential areas or during non-working hours.
The GBW10Y generator is equipped with a reliable diesel engine, premium-quality components, and complete instrumentation. Its canopy is tiltable for convenient access to the maintenance area.

If you are looking for a generator like the GBW10Y MCP three-phase power generator, we recommend browsing our catalog of land-based generators to find the one that best suits your needs.
