HYUNDAI SILENCED THREE-PHASE GENERATOR 24KW/30KVA STAGEII
GENERATOR HYUNDAI SILENCED THREE-PHASE STAGEII GENERATOR 24KW/30KVA
Hyundai three-phase StageII represents the ultimate expression of power and reliability in a single solution.
Designed to meet the needs of individuals, businesses and construction sites, this Hyundai generator offers a number of unbeatable advantages
A Silenced power volcano: The Hyundai Three-Phase Silenced StageII 24KW/30KVA Generator.
An investment for the future that looks to the present: By choosing the Hyundai Three-Phase Silenced StageII Generator,
you make a safe and long-lasting investment.
High performance:

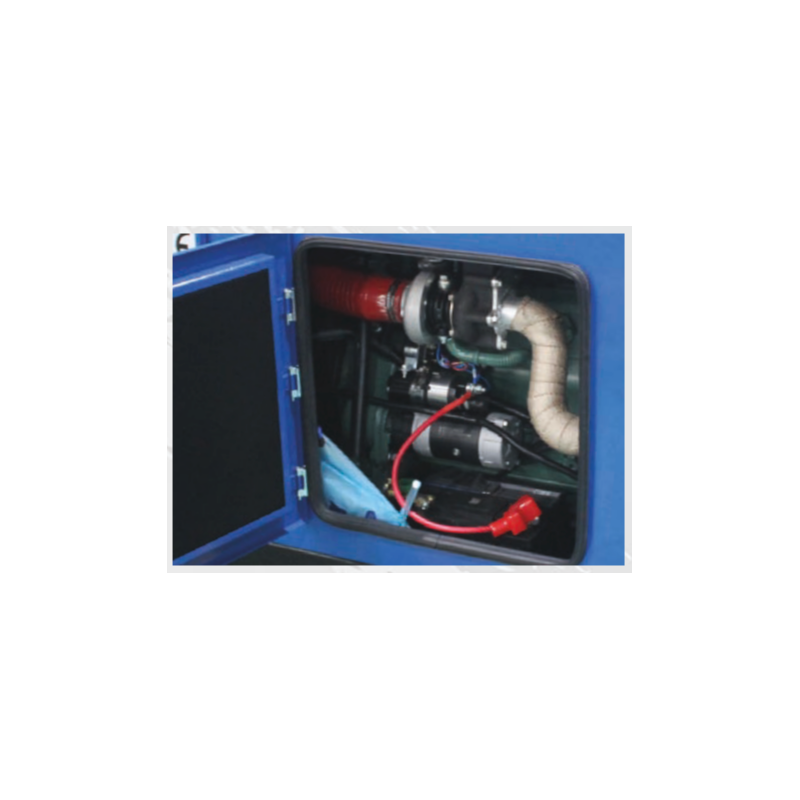

2540-displacement Fawde engine: reliable and StageII compliant
Direct injection system: efficiency and low fuel consumption
LK184G alternator: robust and reliable, provides a pure sine wave.
Quiet operation:
Noise level below 75 dB (at 7m): ideal for residential and business environments
Safety and reliability:

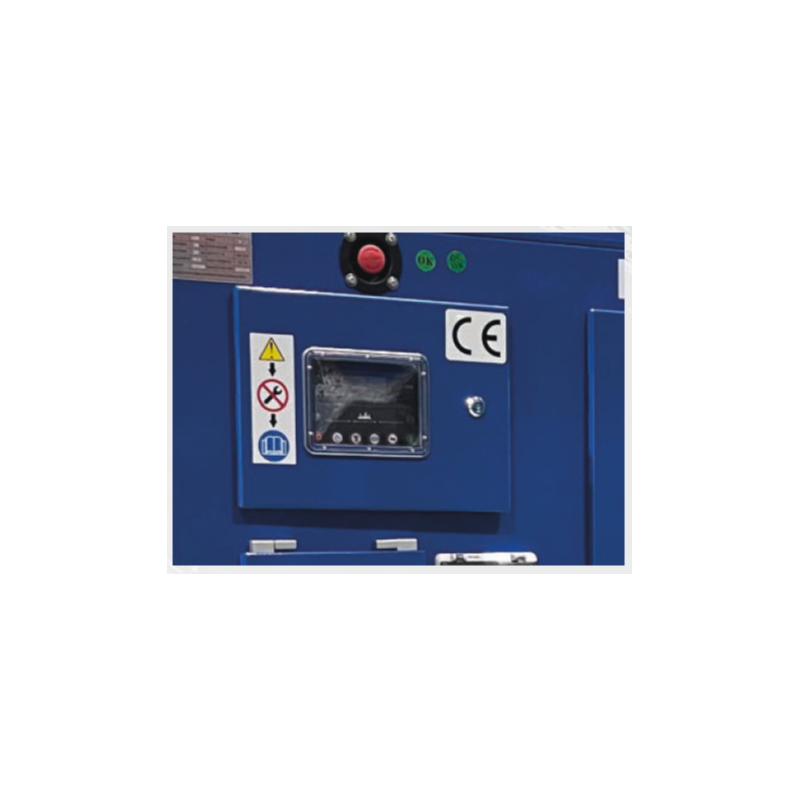

"Waterproof" control panel: intuitive monitoring and control
Emergency button: immediate stop in case of need
Miniature and Waterproof circuit breaker: overload and short-circuit protection
IP23 degree of protection: resistant to water and dust
Autonomy and durability:
Large autonomy: 45-liter tank for extended operation
Liquid cooling system: optimal temperatures even under severe conditions.
Respect for the environment at all times: Low consumption and minimal emissions: this generator
is designed to minimize environmental impact, contributing to a more sustainable and responsible future,
without sacrificing performance
Advanced control and management:

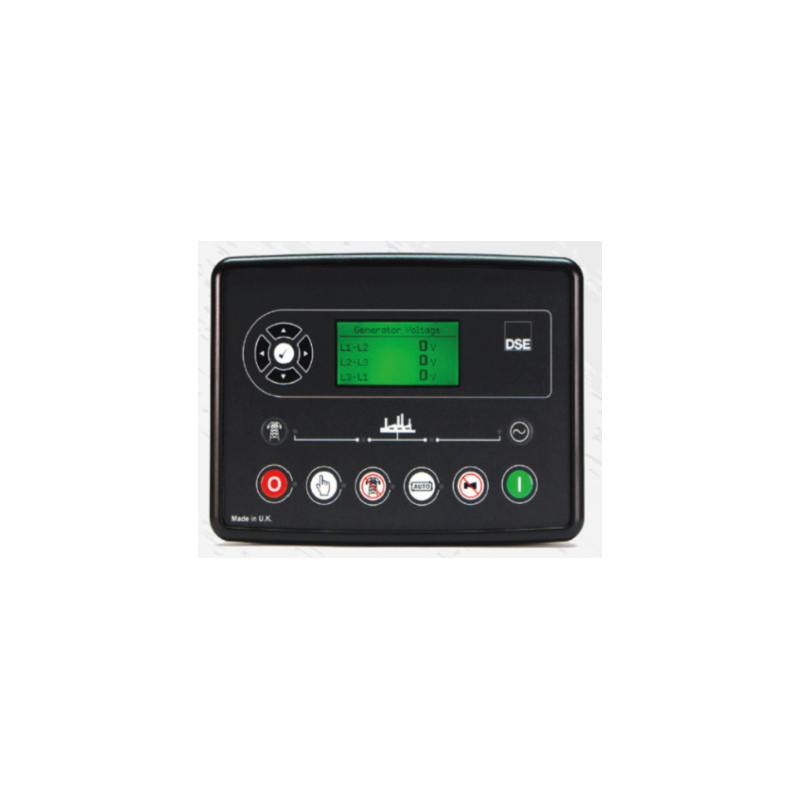

Deepsea DSE6120 control unit
Provision for ATS: automatic connection in case of failure
The Hyundai StageII Generator is an ideal choice for:
Private homes: backup powering high-power equipment
Businesses: business continuity in case of power outages
Construction sites: power for power tools and machinery
The Hyundai Three-Phase Silent StageII Generator is the ideal solution
for those looking for a powerful, reliable and quiet Hyundai generator.
With its three-phase and single-phase power, the Hyundai Three-Phase Silent StageII Generator
is capable of powering a wide range of equipment.
The Hyundai Three-Phase Silent StageII Generator
features a direct injection system that ensures efficiency and low fuel consumption.
The Hyundai Three-Phase Silent StageII Generator is a safe and reliable product,
thanks to its "Waterproof" control panel, emergency button and IP23 protection rating.
Technical characteristics Hyundai StageII generator:
Voltage:230/400 V
Single/three-phase
Three-phase continuous use power: 30 KVA
Nominal power: 8/24 Kw
Max. power MF/TF: 8.7/26 Kw
Frequency: 50 Hz
Amperage: 43 A
Noise Level: 75 DB (at 7m)
IP Degree of Protection: IP23ù
Degree of Insulation: H/H
Altitude: <1000m asl
Engine: Fawde
Displacement: 2540 cc
Type of Injection: Direct
No. Cylinders: 4
Engine rpm: 1500/min
Emissions: Stage II
Fuel consumption 100%/75%/50% load: 4.8/3.6/2.4 l/h
Fuel: Diesel
Tank capacity: 45 L
Cooling System: Coolant
Control unit: DEEPSEA DSE6120
Total capacity of lubrication system: 8 L
Cap. Tot. cooling system 9 L
Alternator Model: Lk184G
Exciter: Brushless - Auto - Excitation
Dimensions L x W x H: 1800 * 740 * 825 mm
Weight: 679 Kg
Predisposition: ATS
If you are looking for a product similar to Hyundai Three Phase Generator click HERE.
The image is purely indicative.
