Generator Hyundai Three-Phase Silenced StageII

Generator Hyundai Three-phase Silenced StageII Power and reliability in one

Hyundai Three-phase Silenced StageII is the ideal choice for those looking for a powerful Hyundai generator,

reliable and quiet generator to power your home, business or construction site.

Rated at 16 kW single-phase and 48 kW three-phase, this Hyundai StageII generator can power a wide range of equipment.

Low consumption and minimal emissions: this Hyundai three-phase generator is designed to minimize environmental impact,

contributing to a more sustainable and responsible future, without sacrificing performance.
A hurricane of energy at your service, whispered not shouted:

Hyundai's StageII Three-Phase Silenced Generator unleashes unstoppable power in silence,

revolutionizing the way we think about energy.

A beating heart of reliability that beats to the rhythm of your peace of mind: The mighty 3900cc Cummins engine

offers flawless performance and unprecedented durability, ensuring your peace of mind.

Its main features include:

3900 cc Cummins engine: reliable and complies with StageII anti-pollution regulations.

Direct injection system: provides high efficiency and low fuel consumption.

LK224E Alternator: robust and reliable, provides a pure sine wave ideal for powering sensitive electronic equipment.

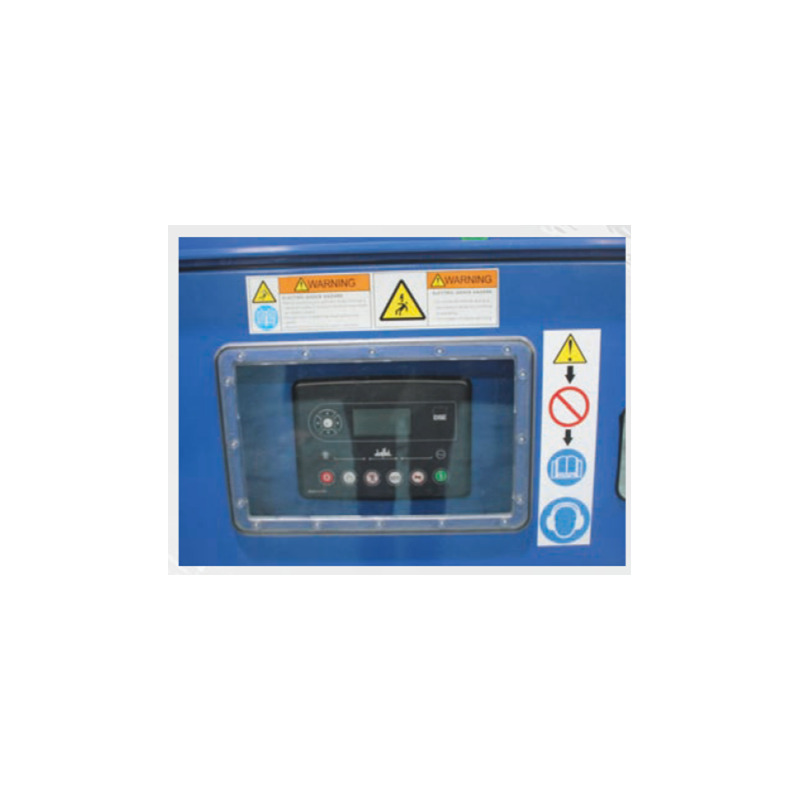

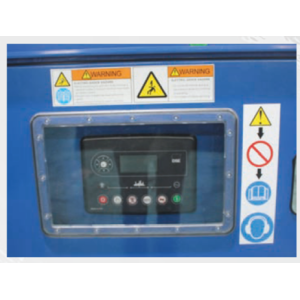

"Waterproof" control panel: enables easy and safe monitoring and control of the Hyundai StageII generator.

Emergency safety button: ensures immediate shutdown of the Hyundai StageII generator in case of need.

Miniaturized and Waterproof circuit breaker: protects the Hyundai generator from overloads and short circuits.

Noise level below 85 dB (at 7m): quiet operation that does not disturb the neighborhood.

IP23 degree of protection: resistant to water and dust.

Large autonomy: 120-liter tank for extended operation.

Liquid cooling system: keeps the Hyundai generator at optimal temperatures even under severe working conditions.

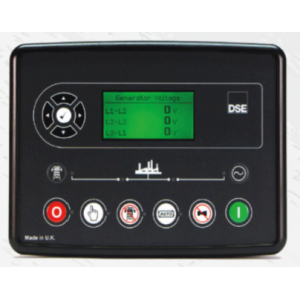

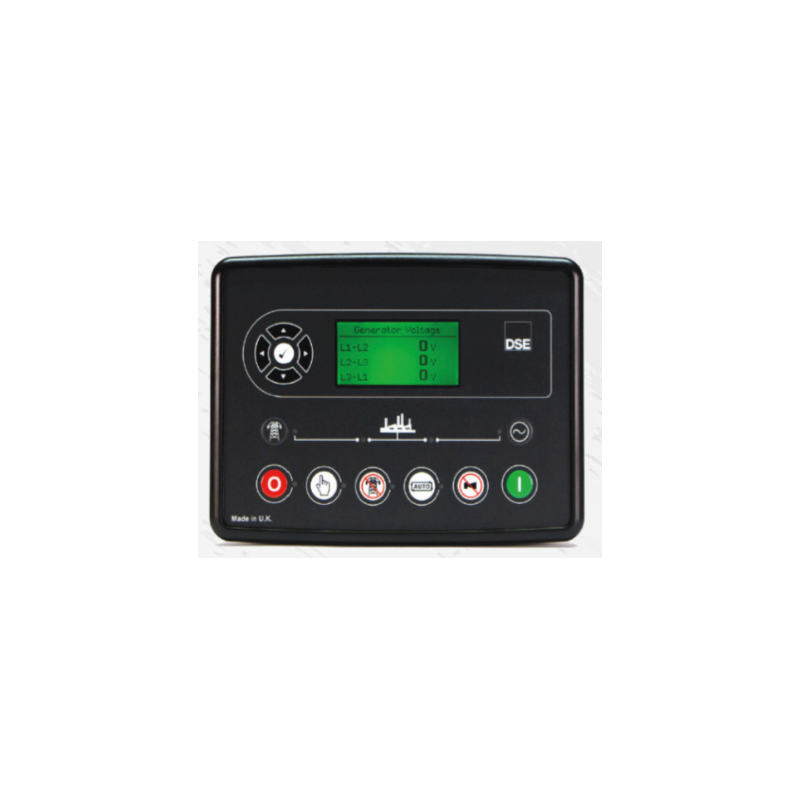

Deepsea DSE6120 control unit: provides comprehensive information on generator operation.

Provision for ATS: allows automatic connection of the Hyundai generator in case of failure.

The Hyundai Three-Phase Silenced StageII Generator is an ideal choice for:

Private homes: provides backup in case of power outages or to power highelectrical equipment.

Technical characteristics Hyundai Silenced StageII Generator:

Voltage:230/400 V
Single/three-phase
Three-phase continuous use power: 60 KVA
Nominal power: 16/48 Kw
Max. power MF/TF: 18/54 Kw
Frequency: 50 Hz
Amperage: 86.6 A
Noise Level: <85 DB (at 7m)
IP Degree of Protection: IP23
Degree of Insulation: H/H
Altitude: <1000m asl
Engine: YTO
Displacement: 3900 cc
Type of Injection: Direct
No. Cylinders: 4
Engine rpm: 1500/min
Emissions: StageII
Fuel consumption 100%/75%/50% load: 9.6/7.2/64.8 l/h
Fuel: Diesel
Tank capacity: 120 L
Cooling System: Coolant
Control unit: DEEPSEA DSE6120
Total capacity of lubrication system: 14 L
Cap. Tot. cooling system 6 L
Alternator Model: Lk224E
Exciter: Brushless - Auto - Excitation
Dimensions L x W x H: 2470 * 1010 * 1125 mm
Weight: 1210 kg
Predisposition: ATS

If you are looking for a product similar to Hyundai Three Phase Generator click HERE.

The image is purely indicative.
