Generator Hyundai Three-Phase Silenced StageII

Generator Hyundai Three-phase Silenced StageII Power and reliability in one.

Hyundai Three-phase StageII is the ideal choice for those looking for a Hyundai generator,

reliable and quiet generator StageII to power your home, business or construction site.

With a power rating of 16 kW single-phase and 48 kW three-phase,

this Hyundai is capable of supplying to a wide range of equipment.

Its main features include:

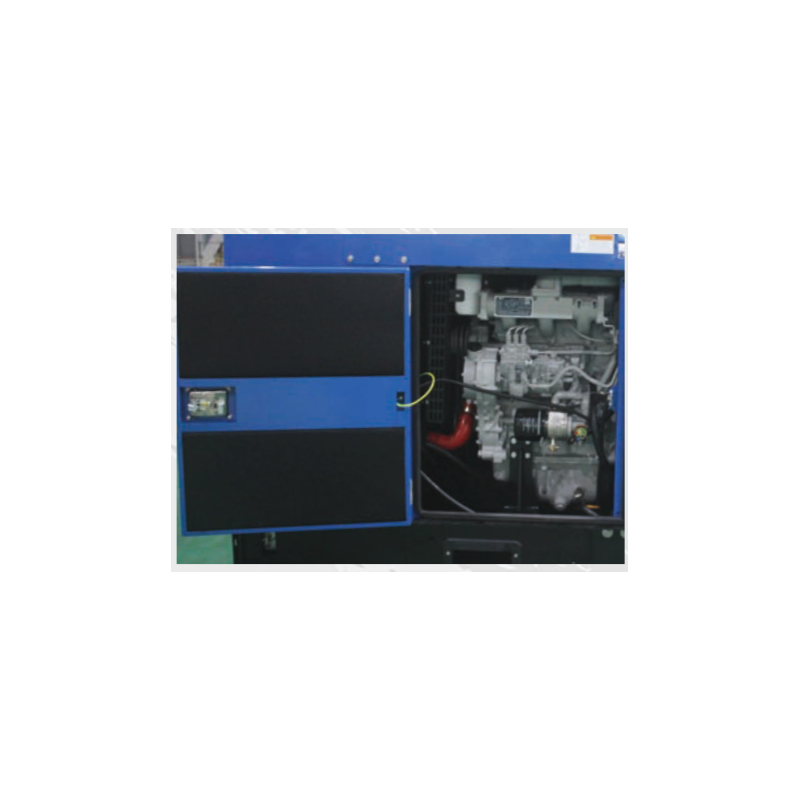

3900 cc Cummins engine: reliable and complies with StageII emission regulations.

Direct injection system: provides high efficiency and low fuel consumption.

LK224F alternator: robust and reliable, provides a pure sine wave ideal

for powering sensitive electronic equipment.

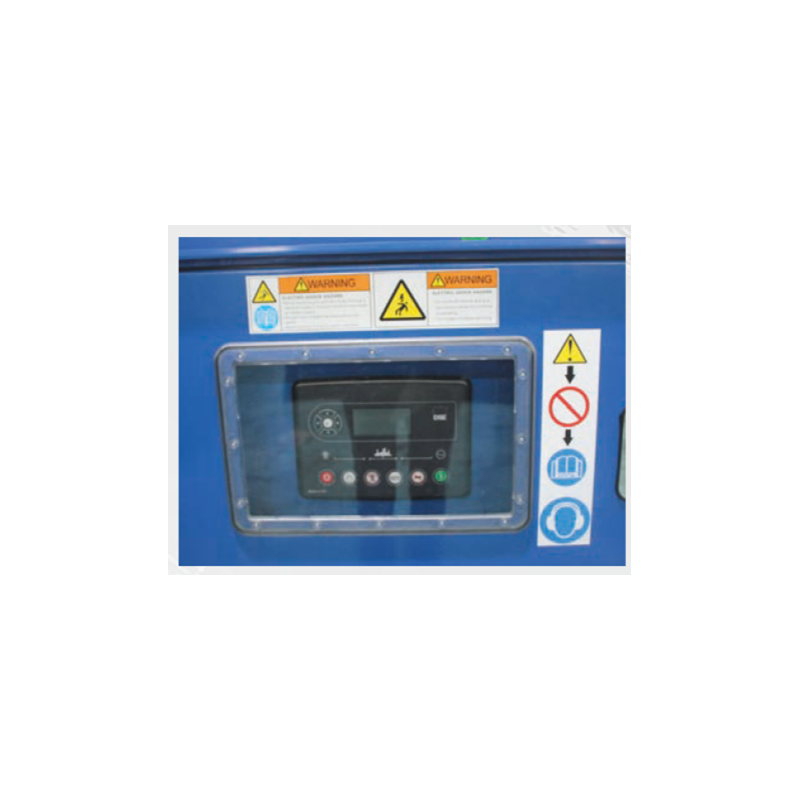

"Waterproof" control panel: enables easy and safe monitoring and control of the generator.

Emergency safety button: ensures immediate generator shutdown in case of need.

Miniaturized and Waterproof circuit breaker: protects the generator StageII from overloads and short circuits.

Noise level below 85 dB (at 7m): quiet operation that does not disturb the neighborhood.

IP23 degree of protection: resistant to water and dust.

Large autonomy: 120-liter tank for extended operation.

Liquid cooling system: keeps Hyundai at optimal temperatures even under severe working conditions.

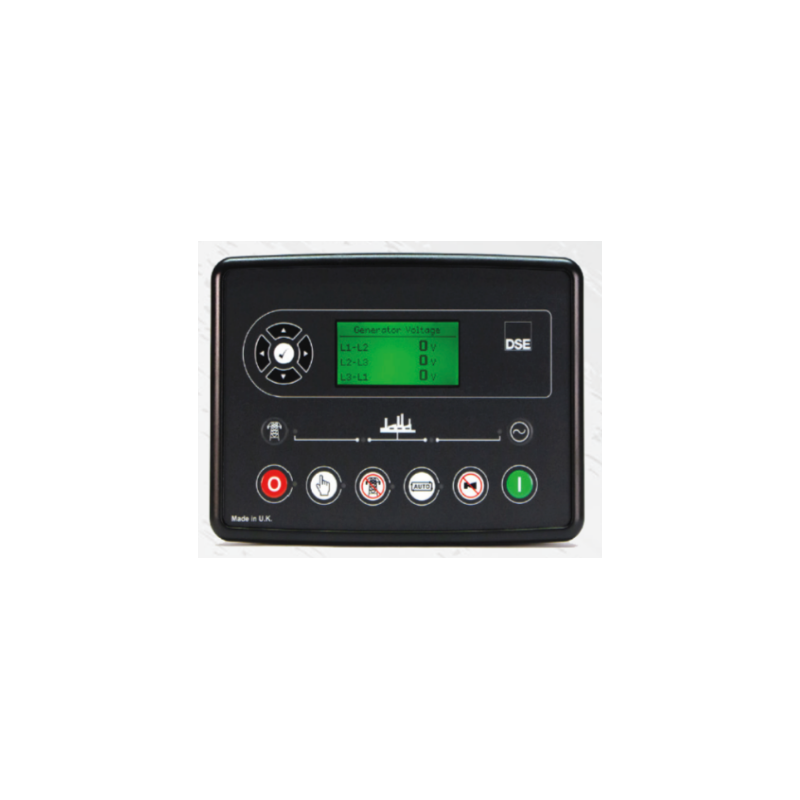

Deepsea DSE6120 control unit: provides comprehensive information on the operation of the Hyundai generator StageII.

Provision for ATS: allows automatic generator connection in case of failure.

The Hyundai Three-Phase Silenced StageII Generator is an ideal choice for:

Private homes: provides backup power in the event of a blackout or to power high electrical equipment.

Businesses: provides business continuity during power outages.

Construction sites: provides for power tools and machinery.

With its reliability and quiet operation, Hyundai Three-Phase Silenced StageII

is the ideal solution for all needs.

Beating heart of reliability: The mighty 3900 cc Cummins engine beats to the beat of your peace of mind,

delivering flawless performance and unprecedented durability. No more deafening noise!

State-of-the-art soundproofing technology makes this

Hyundai generator Three-Phase a silent companion in any setting, from home to construction site.

Flexibility without limits: A generator as versatile as you are!

Technical specifications Hyundai Three-Phase Silenced StageII Generator:

Single/three-phase
Three-phase continuous power use: 60 KVA
Nominal power: 16/48 Kw
Max. power MF/TF: 17.7/53 Kw
Frequency: 50 Hz
Amperage: 87 A
Noise Level: <85 DB (at 7m)
IP Degree of Protection: IP23
Degree of Insulation: H/H
Altitude: <1000m asl
Engine: Cummins
Displacement: 3900 cc
Type of Injection: Direct
No. Cylinders: 4
Engine revs: 1500/min
Emissions: StageII
Fuel consumption 100%/75%/50% load: 13.1/9.8/6.7 Lt/h
Fuel: Diesel
Tank capacity: 120 L
Cooling System: Coolant
Control unit: DEEPSEA DSE6120
Total capacity of lubrication system: 16.4 L
Cap. total cooling system: 8.3 L
Alternator Model: Lk224F
Exciter: Brushless - Self-excitation
Dimensions L x W x H: 2470 * 1010 * 1250 mm
Weight: 1204 Kg
Predisposition: ATS

Hyundai Technology: Hyundai is at the forefront of adopting new technologies.
The company is a leader in electrification, with an ever-expanding range.
It is also constantly integrating innovations such as advanced safety systems.

If you are looking for a product similar to Hyundai Three Phase Generator click HERE.

The image is purely indicative.
