GENMAC Wonder-GAS RG10000HS LPG GENERATOR 10KVA SINGLE-PHASE

GENMAC Wonder-GAS RG10000HS LPG GENERATOR 10KVA NATURAL GAS SINGLE-PHASE

The GENMAC Wonder-GAS RG10000HS LPG single-phase generator is equipped with a Honda GX690 LPG PROPANE GAS engine, capable of delivering a maximum power output of 10KVA, complete with capacitor Voltage Regulator (AVR optional).

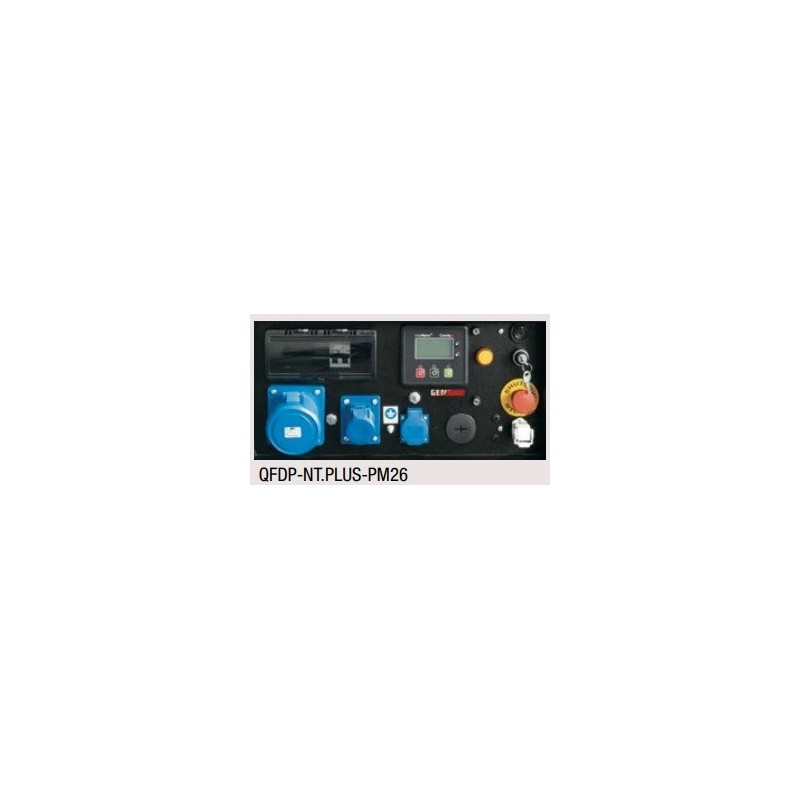

The GENMAC Wonder-GAS RG10000HS LPG is equipped with electric start with 12 V battery, the generator is equipped with automatic panel with Comap Intelinano Plus control unit, which allows to display of all electrical parameters of the engine and generator, functions, states of the genset, manage the genset entirely and display, in case they occur, the errors or alarms of the system.

The Genmac Wonder-GAS RG10000HS LPG generator is an efficient natural gas-fueled power source. With an output of 10KVA, it can provide a reliable supply of power for a wide range of single-phase applications.

This generator is particularly suitable for residential, commercial and industrial uses where natural gas is available as a fuel source. Due to its gas operation, the Genmac Wonder-GAS RG10000HS LPG offers numerous advantages, including lower cost than other fuels, lower pollutant emissions, and longer operating range.

The 10KVA power output enables it to easily and reliably power appliances, tools and machinery with moderate energy demand. It can handle loads such as lights, refrigerators, computers, electric pumps and more. In addition, its single-phase design makes it compatible with power supply needs in small to medium-sized domestic or commercial environments.

AUTOMATIC TRANSFER SWITCHBOARD ATS (Optional)

The GENMAC Wonder-GAS RG10000HS LPG generator has provision for connection with the ATS automatic start-up panel. Thanks to which you will no longer have to worry about blackouts because if the power grid goes out, this panel is able to automatically start the generator and allow you to continue your activity without losing your work data.

TECHNICAL CHARACTERISTICS GENMAC Wonder-GAS RG10000HS LPG

Phase Type: Single Phase
Continuous Power: 9.1KVA / 8.2 KW
Maximum Power: 10 KVA / 9.1 KW
VAC Voltage: 230 V
Frequency (Hz): 50
Starter Panel: Electric/ Automatic
Engine: Honda GX690
Emission standard: Not Emitted
RPM: 3000
Power Supply: LPG
Consumption @ 75 % load: 4.4 lt/h
Acoustic pressure: 63 dB(A) @ 7m
Controller model: Comap Intelinano Plus
Socket panel: 1 x Schuko 230V 16A / 1 x CEE 230V 16A / 1 x CEE 230V 63A
Length: 1100 mm
Width: 540 mm
Height: 924 mm
Net weight: 278 kg

Looking for a product with different technical characteristics? HERE you can find the area dedicated to generators from specialized brands.

Non-binding images and technical data.
