GENERATOR SILENCED 270KVA SINGLE-PHASE/THREE-PHASE AUTOMATIC CONTROL PANEL

Name: GENERATOR SILENCED 270KVA SINGLE-PHASE/THREE-PHASE AUTOMATIC CONTROL PANEL
Brand: NO BRAND
SKU: DS270KVAA
Price: 28806.64 EUR
Availability: InStock

Reference DS270KVAA - Alternatore AVR-Stamford

Phase type: Single-phase / Three-phase
Continuous use power: 250 KVA / 200 KW
Maximum power: 275 KVA / 220 KW
Motor: Baudouin 6M16G275-5
Revolutions engine: 1500 rpm
Emissions standard: Not Emissions
Starter: Electric / Automatic
Fuel: Diesel
Voltage available at the terminals: 230 / 400 V
Frequency: 50 Hz
Voltage regulator: AVR
Tank capacity: 265 l
Autonomy at 75% load: 6.27 h
Consumption at 75% load: 42.2 Lt/h
Acoustic pressure: 70 dB(A) @ 7 m
Length: 3800 mm
Width: 1200 mm
Height: 2000 mm
Weight approx: 2700 Kg

List price

48,824.40 € tax incl.

40,020.00 € tax excl.

Discounted Price

28,806.64 € tax incl.

23,612.00 € tax excl.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference DS270KVAA - Alternatore AVR-Stamford

Data sheet

Phase: Single phase / Three phase
Maximum power three phase (KW): 220
Continuous power three phase (KW): 200
Maximum power three phase (KVA): 275
Continuous power three phase (KVA): 250
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine: Baudouin 6M16G275-5
Emissions Regulations: Not Emissioned
Engine rpm (rpm): 1500
Speed governor: Electronic
Starting system: Electric
Engine capacity (cm³): 9726
Number cylinders: 6
Cylinders' position: In line
Cooling: Water
Poles: 4
Fuel tank capacity (L): 265
Consumption (L/h): 42 al 75% del carico
Acoustic pressure: 70 dB(A) at 7 m
Length (mm): 3800
Width (mm): 1200
Height (mm): 2000
Dry weight (Kg): 2700
Silenced: Yes
Super silenced: Yes
ATS Switch device: Optional
Voltage regulator: AVR

Specific References

Condition New

GENERATOR SILENCED 270KVA SINGLE-PHASE/THREE-PHASE AUTOMATIC CONTROL PANEL

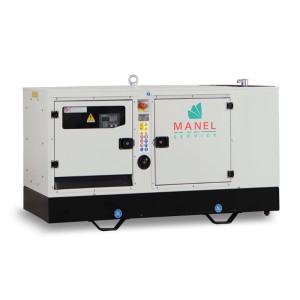

Generator Three-phase of 275 KVA with Baudouin engine 6M16G275-5 diesel powered and with tank with a maximum capacity of 265 l.

equipped with automatic starting with 12 V battery, the generator is equipped with automatic control panel with COMAP IL4 AMF9 control unit, which allows view all the electrical parameters of the engine and generator, functions, status of the generator set, manage the entire group and view, if any, system errors or alarms.

This group is equipped with a soundproofed cabin, made of 20/10 thick carbon steel, folded and electro-welded, with protection class IP23 and which can be opened in two sections. This booth allows an incredible reduction of noise pollution, up to obtaining a sound pressure of only 70 dB(A) recorded at a distance of 7 meters. The generator set guarantees efficient and silent operation thanks to the Baudouin 6M16G275-5 engine, which allows it to deliver a maximum power of 275KVA.

ATS AUTOMATIC START PANEL (Optional)

The generator set is fitted for connection to the ATS automatic starter panel. Thanks to which you will no longer have to worry about blackouts because if the electricity goes off, this panel is able to automatically start the generator and will allow you to continue your business without losing your work data.

Technical characteristics:

Are you looking for a generator set with different technical characteristics? HERE you can find the area dedicated to generating sets of specialized brands.

Non-binding images and technical data.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
