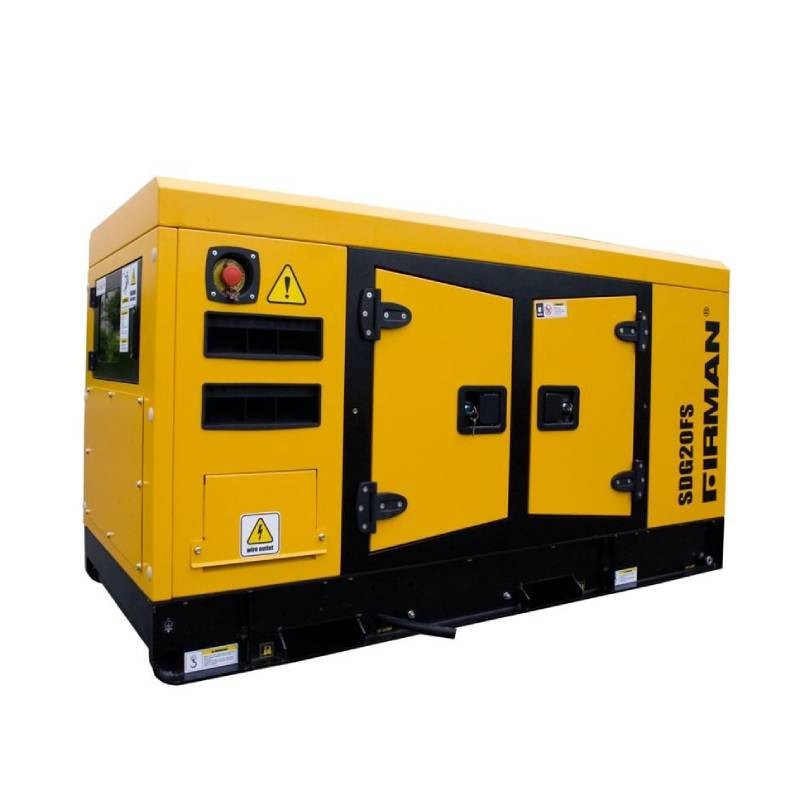

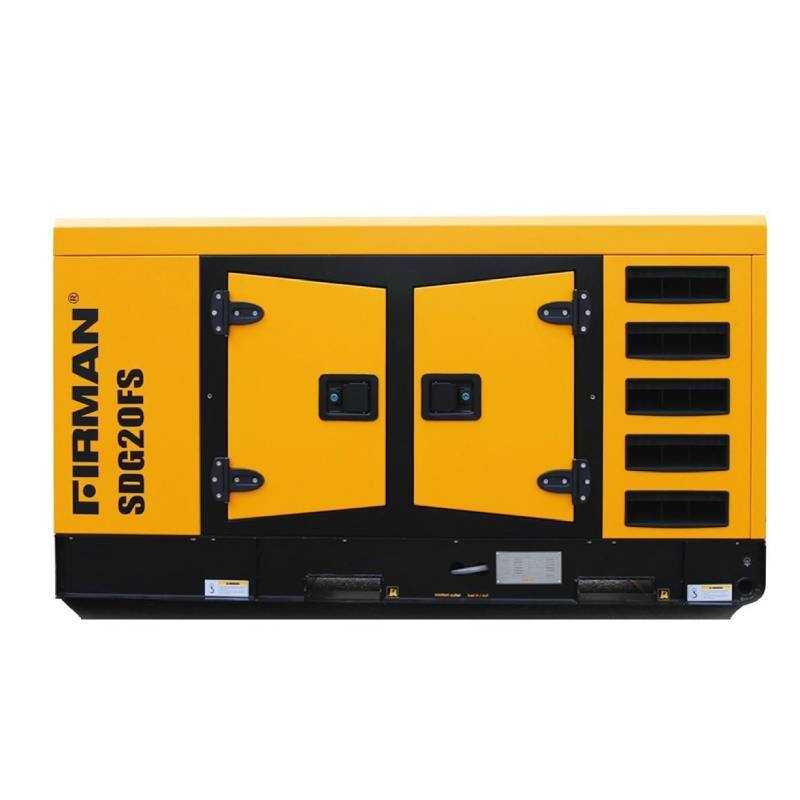

FIRMAN SDG20FS GENERATOR 22KVA THREE-PHASE SUPER SILENT

FIRMAN SDG20FS GENERATOR 22KVA THREE-PHASE SUPER SILENT

Generator FIRMAN SDG20FS is equipped with a FIRMAN FD490DY diesel-powered engine, capable of delivering a power of 22KVA complete with a Compound voltage regulator and automatic control panel.

This generator is equipped with electric, manual or automatic start with a 12 V battery, and is equipped with a FIRMAN HGM4020N control unit which allows you to view all the electrical parameters of the engine and generator, of the functions, status of the generating set, managing the entire group and displaying, if any, system errors or alarms. The group has low fuel consumption, in fact it consumes only 5.6 litres/hour at 75% of the load, combined with a large tank of 47 liters of maximum capacity, it will give you an autonomy of about 8.5 hours.

This Generator is equipped with a soundproofed cabin, made of 20/10 thick carbon steel, folded and electro-welded, with protection class IP23 and which can be opened in two sections. This cabin allows an incredible reduction of noise pollution, to the point of making it supersilenced. The generator set guarantees efficient and silent operation thanks to the FIRMAN FD490DY engine, which allows for the delivery of a maximum power of 22KVA.

TECHNICAL FEATURES FIRMAN SDG20FS:

Phase type: Three-phase
Continuous power: 20 KVA / 16 KW
Maximum power: 22 KVA / 18 KW
Engine: FIRMAN FD490DY
Power supply: Diesel
Engine speed: 1500 rpm
Regulation of revolutions: Mechanical
Emissions standard: Stage Zero
Starter: Electric
Voltage regulator: Compound
Voltage: 400 V
Frequency: 50 Hz
Socket panel: Terminal block
Tank capacity: 47 l
Consumption at 75% of the load: 5.64 l/h
Autonomy at 75% of the load : 8.33 h
Length: 1750 mm
Width: 730 mm
Height: 980 mm
Net weight: 635 kg

Are you looking for a generator set with different technical characteristics? HERE you can find the area dedicated to FIRMAN generator sets or other specialized brands.

Non-binding images and technical data.
