GREEN POWER GP 13000XM/LE SINGLE PHASE DIESEL GENERATOR ELECTRIC START 12KVA
      GREEN POWER GP 13000XM/LE SINGLE PHASE DIESEL GENERATOR ELECTRIC START 12KVA

      GREEN POWER GP 13000XM/LE SINGLE PHASE DIESEL GENERATOR ELECTRIC START 12KVA

      00134X

      DISCONTINUED PRODUCT


      Phase Type: Single Phase
      Continuous Use output: 10.7 KVA / 10.7 KW
      Maximum output: 12 KVA / 12 KW
      Motor: KOHLER KD477
      Motor RPM: 3000 rpm
      Emissions Standard: Non-Emitting
      Firing: Electric
      Fuel: Diesel
      Voltage: 230 V
      Frequency: 50 Hz
      Socket panel: 1 x 63A 3P 230V / 1 x 16A 3P 230V
      Tank capacity: 7 l
      Run time at 75% load: 2. 5 h
      Consumption at 75% load: 2.8 Lt/h
      Length: 1060 mm
      Width: 620 mm
      Height: 780 mm
      Dry weight: 182 Kg

      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      GREEN POWER
      00134X

      Data sheet

      Phase
      Single phase
      Maximum power single phase (KW)
      12
      Continuous power single phase (KW)
      10.7
      Maximum power single phase (KVA)
      12
      Continuous power single phase (KVA)
      10.7
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      230
      Sockets configuration
      1 x 63A 3P 230V / 1 x 16A 3P 230V
      Engine
      Kohler KD 477/2
      Emissions Regulations
      Stationary Use
      Engine rpm (rpm)
      3000
      Starting system
      Elettrico
      Engine capacity (cm³)
      954
      Number cylinders
      2
      Cooling
      Air
      Alternator
      LINZ E1C11MC
      Poles
      2
      Fuel tank capacity (L)
      7
      Consumption (L/h)
      2.8 al 75% del carico
      Running time (h)
      2.5 at 75% of the load
      Length (mm)
      Width (mm)
      620
      Height (mm)
      780
      Dry weight (Kg)
      182
      Silenced
      No
      Super silenced
      No
      Product type
      Generator
      ATS Switch device
      Optional
      Voltage regulator
      Capacitor / AVR (optional)
      Engine manufacturer
      Kohler

      Specific References

      GREEN POWER GP 13000XM/LE SINGLE-PHASE DIESEL GENERATOR ELECTRIC START 12KVA

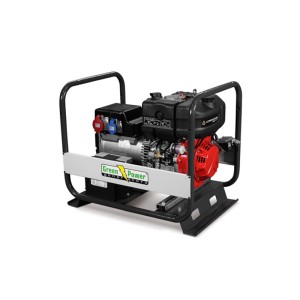

      The generator GREEN POWER GP 13000XM/LE single-phase, is equipped with a KOHLER KD477 engine supplied by Diesel, and is complete with capacitor voltage regulator (AVR optional).

      GREEN POWER GP 13000XM/LE features a capacious 7-liter fuel tank and low fuel consumption, only 2.8 liters/hour at 75% load for up to 2.5 hours of operation. Extremely practical sockets and controls make starting and operating the generator easy and quick.

      The alternator of the generator is the LINZ E1C11MC model (or equivalent primary brand) and is synchronous, single-phase, with brushes and with class H insulation, in addition it is equipped with a voltage regulator. The generator is equipped with a practical electric starting system, so that you can start the unit without any effort.

      The generator is compact and convenient to maneuver and transport thanks to its compact size, as well as practical tubular handles. In addition, it is equipped with a practical and convenient electric start system, so that it can be put into operation quickly and easily.

      The GREEN POWER GP 13000XM/LE generator is equipped with a high performance KOHLER KD477 engine that allows this machine to deliver a maximum single-phase power of 12KVA.

      The electric control panel of the GREEN POWER GP 13000XM/LE is composed of:

      - Sockets: 1 x 63A 3P 230V / 1 x 16A 3P 230V
      - Voltmeter
      - Starting key
      - Hour meter
      - Ammeter
      - Frequency meter
      - Low oil pressure led
      - Mains presence led
      - Circuit breaker + differential

      TECHNICAL FEATURES GREEN POWER GP 13000XM/LE

      Phase Type: Single Phase
      Continuous Use output: 10.7 KVA / 10.7 KW
      Maximum output: 12 KVA / 12 KW
      Motor: KOHLER KD477
      Motor RPM: 3000 rpm
      Emissions Standard: Non-Emitting
      Firing: Electric
      Fuel: Diesel
      Voltage: 230 V
      Frequency: 50 Hz
      Socket panel: 1 x 63A 3P 230V / 1 x 16A 3P 230V
      Tank capacity: 7 l
      Run time at 75% load: 2. 5 h
      Consumption at 75% load: 2.8 Lt/h
      Length: 1060 mm
      Width: 620 mm
      Height: 780 mm
      Dry weight: 182 Kg

      Are you looking for a generator with different technical features? HERE you can find the area dedicated to GREEN POWER generators or other specialized brands.

      Images and technical data are not binding.

      Morbi nisl metus, ornare ac facilisis vel, viverra nec nunc. Sed condimentum, augue ac vehicula finibus, purus ligula bibendum purus, et pulvinar turpis nunc et tortor. Nulla et erat nec augue pretium facilisis. Maecenas eu varius est, eget venenatis ex. Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Proin egestas tempor lectus sed dictum. Praesent laoreet auctor risus id mollis. Nullam elementum nec ipsum quis malesuada. Morbi ullamcorper tortor ac auctor euismod. Nunc vitae tristique purus. Morbi ut libero diam. Vivamus in nisl imperdiet, fringilla justo eget, euismod nisi. Sed et neque pharetra, pulvinar ante

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
