MOSA GE 7000 HBM-L SINGLE PHASE STAGE V GENERATOR 6,7KVA AVR

Name: MOSA GE 7000 HBM-L SINGLE PHASE STAGE V GENERATOR 6,7KVA AVR
Brand: MOSA
SKU: CL2P0001
Price: 1966.85 EUR
Availability: InStock

Reference CL2P0001

Phase Type: Single Phase
Continuous Use Power: 6.0 KVA / 5.4 KW
Maximum Power: 6.7 KVA / 6.0 KW
Motor: HONDA GX 390
Motor RPM: 3000 rpm
Emission Standard: Stage V
Boosting: Manual with self-winder
Fuel: Gasoline
Voltage: 230 V
Frequency: 50 Hz
Voltage controller: AVR
Tank capacity: 20 l
Run time at 75% load: 8. 5 h
Consumption at 75% load: 2.4 Lt/h
Acoustic power: 97 dB(A) (72 dB(A) @ 7m)

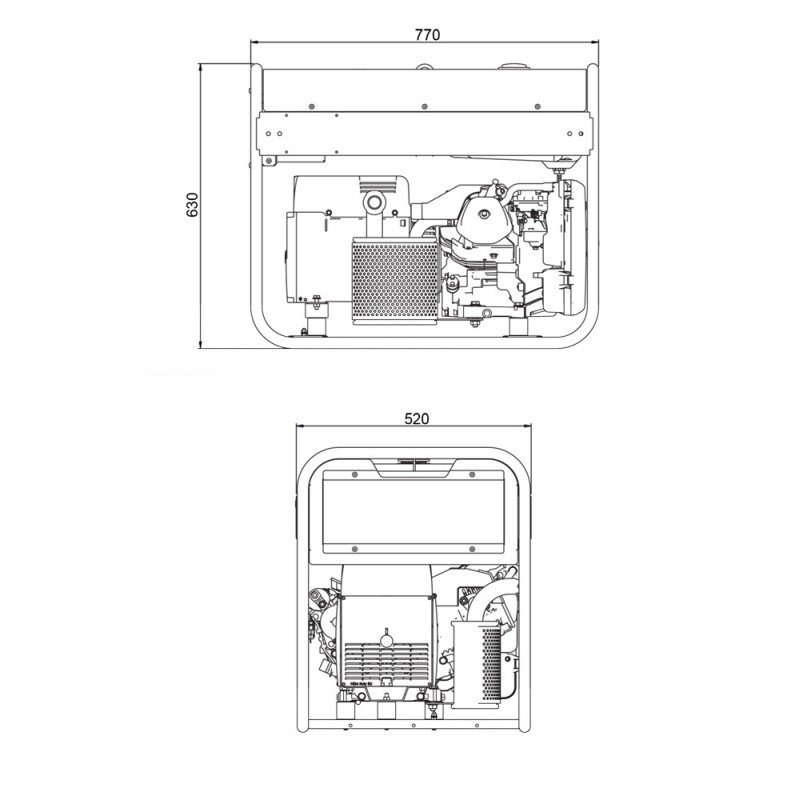

Length: 520 mm
Width: 770 mm
Height: 630 mm
Dry weight: 81 kg

List price

3,818.60 € tax incl.

3,130.00 € tax excl.

Discounted Price

1,966.85 € tax incl.

1,612.17 € tax excl.

Shipping from 36.60 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference CL2P0001

Data sheet

Phase: Single phase
Maximum power single phase (KW): 6
Continuous power single phase (KW): 5.4
Maximum power single phase (KVA): 6.7
Continuous power single phase (KVA): 6
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230
Engine: Honda GX390
Emissions Regulations: Stage 5
Engine rpm (rpm): 3000
Speed governor: Mechanical
Starting system: Pull starter with recoil
Engine capacity (cm³): 389
Number cylinders: 1
Oil capacity (L): 1.1
Cooling: Air
Alternator: Synchronous self-excited, self-regulated, brushless
Bore x stroke (mm): 88 x 64
Fuel tank capacity (L): 20
Consumption (L/h): 2.4 at 75% of the load
Running time (h): 8.5 at 75% of the load
Acoustic pressure: 72 dB(A) at 7 m
Length (mm): 520
Width (mm): 770
Height (mm): 630
Dry weight (Kg): 81
ATS Switch device: No
Voltage regulator: AVR

Specific References

Condition New

MOSA GE 7000 HBM-L STAGE V SINGLE-PHASE GENERATOR 6,7KVA AVR

The MOSA GE7000HBM-L single-phase generator, is equipped with a Honda GX 390 Stage V gasoline-powered engine, and is complete with AVR voltage regulator.

MOSA GE7000HBM-L is equipped with electric start and has a low fuel consumption, in fact it consumes only 2.4 liters/hour at 75% of the load for an autonomy of up to 8.5 hours of operation. Extremely practical sockets and controls make starting and operating the generator easy and quick.

The MOSA GE7000HBM-L generator features an engine support system with a durable steel frame and rubber shock absorbers. These shock absorbers, located on either side of the engine and angled at a 45° angle, significantly reduce engine vibration from an already quiet machine. Aesthetically beautiful, functionally effective.

The front panel of the MOSA GE7000HBM-L is configured as follows:

- Engine ON-OFF switch
- Fuel tap
- Air control
- Fuel level indicator
- Hour meter
- Voltmeter
- Thermomagnetic circuit breaker
- Thermomagnetic circuit breaker for 230V/16A socket(s) (N°2 for version with SCHUKO sockets)
- Output sockets
- Earth terminal (PE)

VOLTAGE REGULATOR AVR

The MOSA GE7000HBM-L Generator is supplied with AVR voltage regulator. The AVR is a device that allows to keep the output more constant and less dependent on the load. Thanks to the AVR there are fewer drops or spikes in current and this makes it safer to use the various devices connected, improving performance and durability.

MOSA GE7000HBM-L TECHNICAL SPECIFICATIONS

Are you looking for a generator with different technical characteristics? Here you can find the area dedicated to MOSA generators or other specialized brands.

Images and technical data not binding.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
