CGM v15LW-B20 WITH AUTOMATIC CONTROL PANEL

Reference CGM v15LW-B20 AUTOMATICO /

OUT OF PRODUCTION

Phase type: Single-phase / Three-phase
Maximum three-phase power: 13.2 KW / 16.5 KVA
Three-phase continuous power: 12 KW / 15 KVA
Maximum single-phase power: 4.4 KW / 5.5 KVA
Single-phase continuous use power: 4 KW / 5 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: KOHLER KDW1603
Engine speed: 1500 rpm
Starting: Electric
Consumption: 3.7 Lt/h at 75% load
Length: 1400 mm
Width: 700 mm
Height: 1400 mm
Weight: 410 Kg
AVR

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference CGM v15LW-B20 AUTOMATICO /

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KW): 4.4
Continuous power single phase (KW): 4
Maximum power single phase (KVA): 5.5
Continuous power single phase (KVA): 5
Maximum power three phase (KW): 13.2
Continuous power three phase (KW): 12
Maximum power three phase (KVA): 16.5
Continuous power three phase (KVA): 15
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: Terminal box
Engine: Kohler KDW1603
Emissions Regulations: Stage 5
Engine rpm (rpm): 1500
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 1649
Number cylinders: 3
Cooling: Water
Alternator: Brushless
Poles: 4
Protection degree: IP44
Bore x stroke (mm): 88 x 90.4
Fuel tank capacity (L): 55
Consumption (L/h): 3..7
Running time (h): 14.9
Length (mm): 1400
Width (mm): 700
Height (mm): 1400
Dry weight (Kg): 410
AVR: Yes
Silenced: No
Super silenced: No
Product type: Generator
ATS Switch device: Optional
Voltage regulator: AVR
Engine manufacturer: Kohler

Specific References

Condition New

CGM v15LW-B20 Single/three-phase 15KVA generator with automatic control panel

The CGM v15LW-B20 is a single/three phase 15KVA generator with a 1500 rpm Kohler diesel engine, compact and easy to use, mounted on a fixed base. This CGM v15LW-B20 generator is in an open version and is easy to handle and transport thanks to its base with pivoting feet.

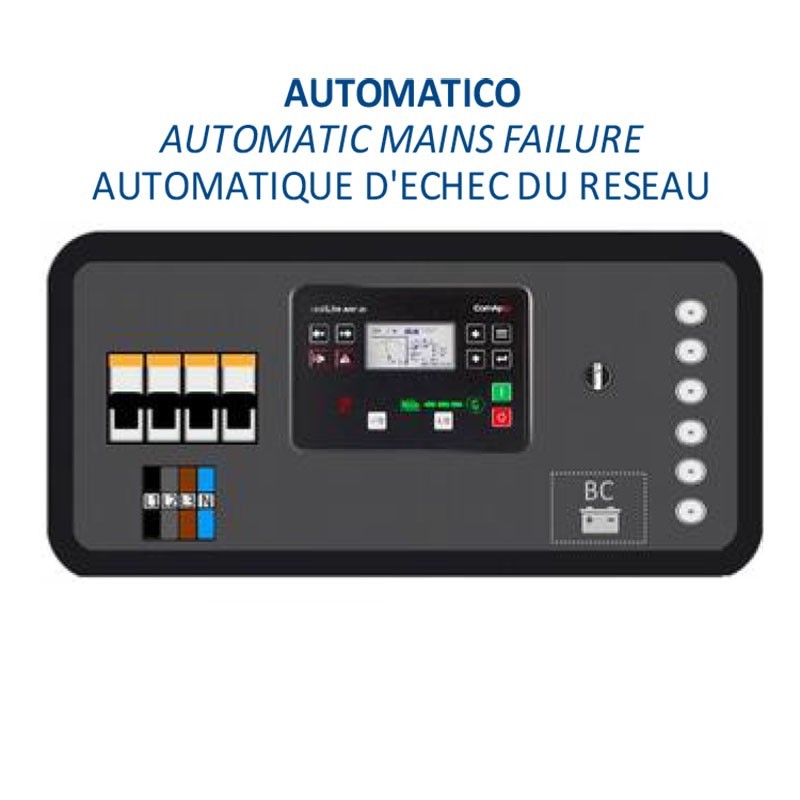

The CGM v15LW-B20 generator consists of a Linz, Stamford or Mecc Alte, self-excited, brushless alternator with AVR voltage regulator. The CGM v15LW-B20 generator is equipped with an electric starter with a low fuel consumption battery, consuming only 3,7 litres per hour at 75% load. In addition, it has a control panel with automatic control unit and terminal box for automatic start-up.
This generator is perfect for use outdoors, such as on construction sites.
The CGM v15LW-B20 generator is part of the Industrial range and is characterised by its versatility for installation in urban environments such as shops or shopping centres, for the telecommunications environment, for military applications and much more.

Technical characteristics of the CGM v15LW-B20 generator:
Phase type: Single-phase / Three-phase
Maximum three-phase power: 13.2 KW / 16.5 KVA
Three-phase continuous power: 12 KW / 15 KVA
Maximum single-phase power: 4.4 KW / 5.5 KVA
Single-phase continuous use power: 4 KW / 5 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: KOHLER KDW1603
Engine speed: 1500 rpm
Starting: Electric
Consumption: 3.7 Lt/h at 75% load
Length: 1400 mm
Width: 700 mm
Height: 1400 mm
Weight: 410 Kg
AVR

If you are looking for a product like the CGM v15LW-B20 then you can browse the full range of CGM generators or other types of products in our catalogue to find the one that best suits your needs.

Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
