      CGM 500S AUTOMATICO

      Phase type: Three-phase
      Continuous power: 500 KVA / 400 KW
      Maximum power: 550 KVA / 440 KW
      Engine: SCANIA DC13 072A 02 14
      Power supply: Diesel
      Engine speed: 1500 rpm
      Regulation of revolutions: Electronic
      Emissions standard: Stage Zero
      Starter: Electric / Automatic
      Voltage regulator: AVR
      Voltage : 400 V
      Frequency: 50 Hz
      Socket panel: Terminal block
      Tank capacity: 400 l
      Consumption at 75% of the load: 72 l/h
      Autonomy at 75 % load: 5.5 h
      Length: 4300 mm
      Width: 1750 mm
      Height: 2350 mm
      Dry weight: 4335 kg

      List price
      109,629.20 € tax incl.
      89,860.00 € tax excl.
      Discounted Price
      68,518.86 € tax incl.
      56,163.00 € tax excl.
      Calculate Shipping Cost
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      CGM
      CGM 500S AUTOMATICO

      Data sheet

      Phase
      Three phase
      Maximum power three phase (KW)
      440
      Continuous power three phase (KW)
      400
      Maximum power three phase (KVA)
      550
      Continuous power three phase (KVA)
      500
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      400
      Sockets configuration
      Terminal box
      Engine
      Scania DC13 072A 02 14
      Emissions Regulations
      Stage Zero
      Engine rpm (rpm)
      1500
      Speed governor
      Electronic
      Starting system
      Electric
      Engine capacity (cm³)
      12700
      Number cylinders
      6
      Cooling
      Water
      Alternator
      Brushless
      Poles
      4
      Protection degree
      IP44
      Bore x stroke (mm)
      130 x 160
      Fuel tank capacity (L)
      400
      Consumption (L/h)
      72
      Running time (h)
      5.5 at 75% of the load
      Acoustic pressure
      69 dB(A) at 7 m
      Length (mm)
      4300
      Width (mm)
      1750
      Height (mm)
      2350
      Dry weight (Kg)
      4335
      AVR
      Yes
      Silenced
      Yes
      Super silenced
      Yes
      Product type
      Generator
      ATS Switch device
      Optional
      Voltage regulator
      AVR
      Engine manufacturer
      Scania

      Specific References

      New

      CGM 500S 500KVA SUPER SILENCED THREE-PHASE AUTOMATIC PANEL GENERATOR

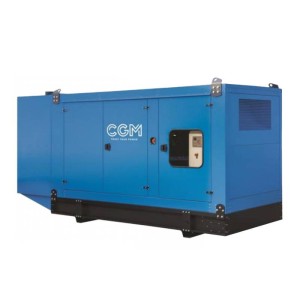

      The CGM 500S three-phase generating set is equipped with a SCANIA DC13 072A 02 14 Diesel engine, capable of delivering a power of 500KVA complete with AVR voltage regulator.

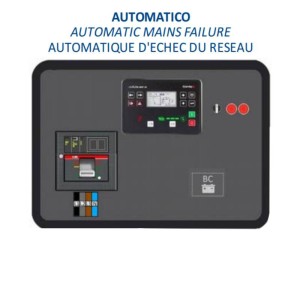

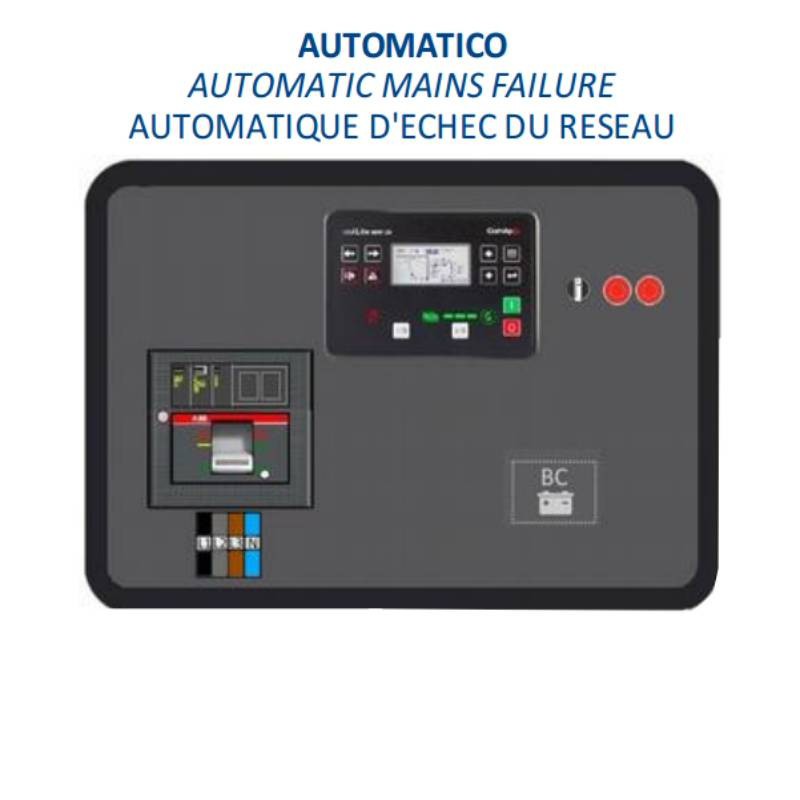

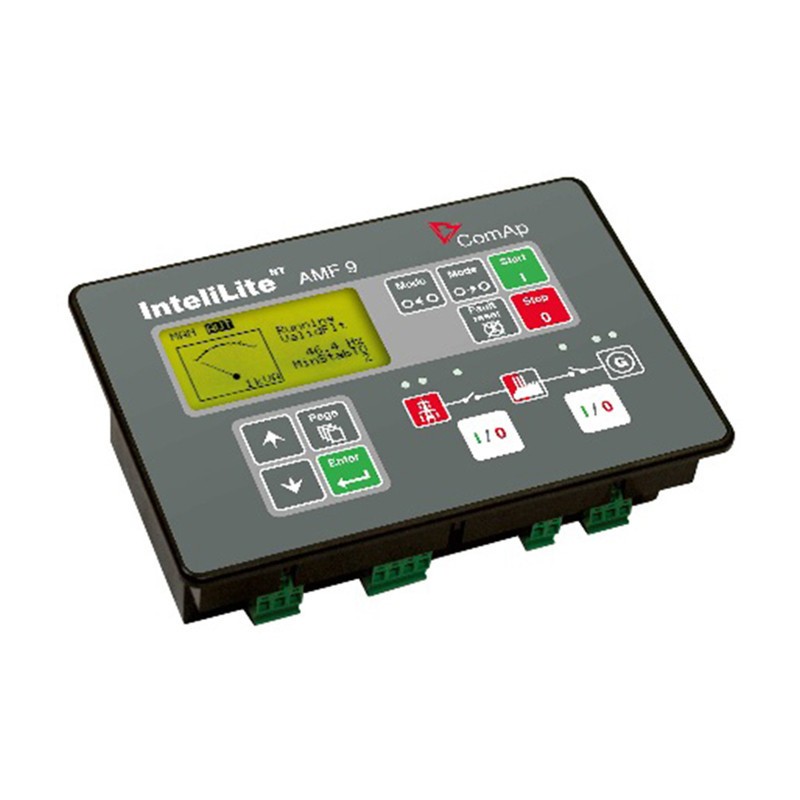

      This generator set is equipped with electric start with 12 V battery, equipped with a COMAP IL9 AMF 9 control unit which allows you to view all the electrical parameters of the engine and of the generator, of the functions, status of the generating set, manage the entire group and display, if any, the errors or alarms of the system.

      CGM 500S is equipped with a soundproofed cabin, made of galvanized, bent and electro-welded sheet metal, with IP23 protection class with doors that can be opened for ordinary and extraordinary maintenance. The generator set guarantees efficient and silent operation thanks to the SCANIA DC13 072A 02 14 Diesel engine, which allows for the delivery of a maximum power of 500KVA. In addition, this group is equipped with electric or automatic starting via the ATS panel, which allows it to start automatically in the event of a blackout.

      ATS AUTOMATIC STARTER PANEL ARRANGEMENT

      The generator set is designed for use with an ATS automatic starter panel. Thanks to which you will no longer have to worry about blackouts because if the electricity goes off, this panel is able to automatically start the generator and will allow you to continue your business without losing your work data.

      CGM 500S TECHNICAL SPECIFICATIONS

      Phase type: Three-phase
      Continuous power: 500 KVA / 400 KW
      Maximum power: 550 KVA / 440 KW
      Engine: SCANIA DC13 072A 02 14
      Power supply: Diesel
      Engine speed: 1500 rpm
      Regulation of revolutions: Electronic
      Emissions standard: Stage Zero
      Starter: Electric / Automatic
      Voltage regulator: AVR
      Voltage : 400 V
      Frequency: 50 Hz
      Socket panel: Terminal block
      Tank capacity: 400 l
      Consumption at 75% of the load: 72 l/h
      Autonomy at 75 % load: 5.5 h
      Length: 4300 mm
      Width: 1750 mm
      Height: 2350 mm
      Dry weight: 4335 kg

      Are you looking for a generator set with different technical characteristics? HERE you can find the area dedicated to CGM generator sets or other specialized brands.

      Non-binding images and technical data.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
