CGM 40Y-B50 WITH AUTOMATIC CONTROL PANEL

  • New
CGM 40Y-B50 WITH AUTOMATIC CONTROL PANEL
search
  • CGM 40Y-B50 WITH AUTOMATIC CONTROL PANEL

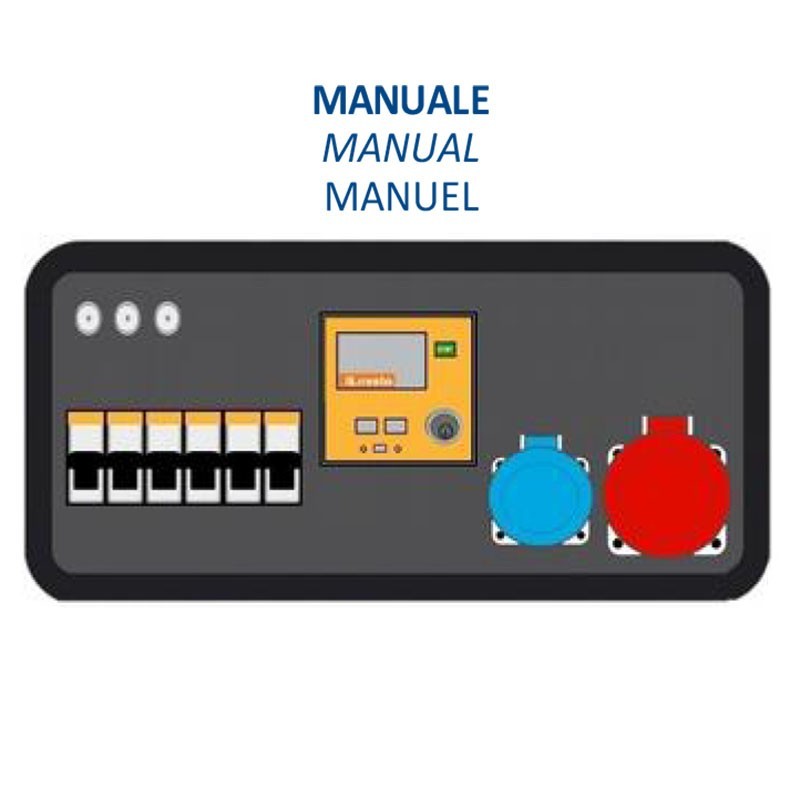

  • MANUAL CONTROL PANEL

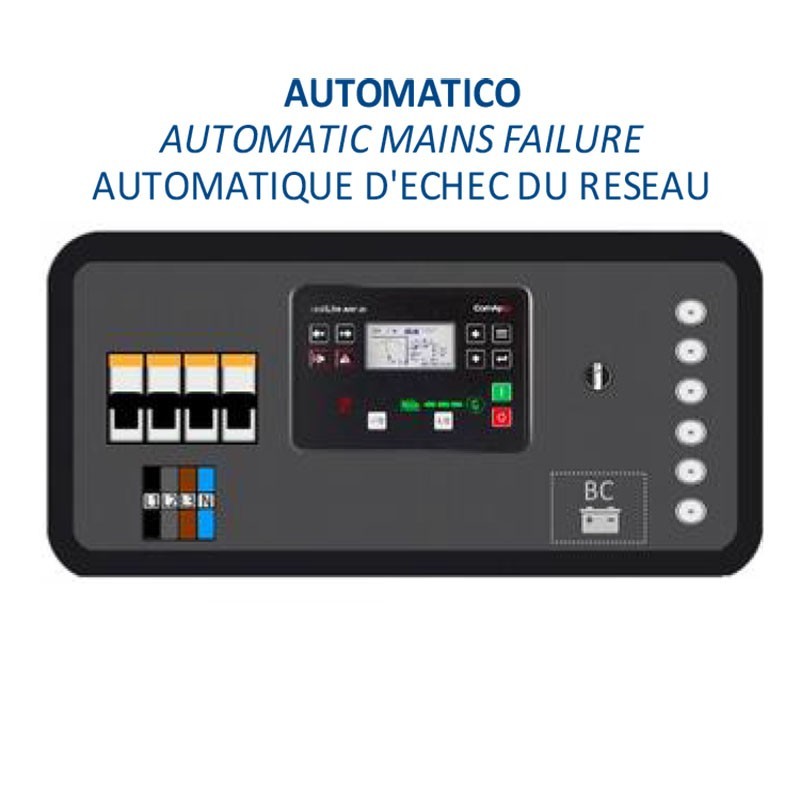

  • AUTOMATIC CONTROL PANEL
CGM
CGM 40Y-B50 AUTOMATICO
New product

Phase type: Single-phase / Three-phase
Maximum three-phase power: 35 KW / 44 KVA
Three-phase continuous power: 32 KW / 40 KVA
Maximum single-phase power: 11.67 KW / 14.67 KVA
Single-phase continuous use power: 10.67 KW / 13.33 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: YANMAR 4TNV98T-GECS
Engine speed: 1500 rpm
Starting: Electric
Consumption: 7.8 Lt/h at 75% load
Length: 1650 mm
Width: 850 mm
Height: 1650 mm
Weight: 665 Kg
AVR

Technical features
Phase
Single phase / Three phase
Maximum power single phase (KW)
11.6
Continuous power single phase (KW)
10.6
Maximum power single phase (KVA)
14.6
Continuous power single phase (KVA)
13.3
Maximum power three phase (KW)
35
Continuous power three phase (KW)
32
Maximum power three phase (KVA)
44
Continuous power three phase (KVA)
40
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Sockets configuration
Terminal box
Engine
Yanmar 4TNV98T-GECS
Emissions Regulations
Stage 2
Engine rpm (rpm)
1500
Speed governor
Mechanical
Starting system
Electric
Engine capacity (cm³)
3319
Number cylinders
4
Cooling
Water
Alternator
Brushless
Poles
4
Protection degree
IP44
Bore x stroke (mm)
98 x 110
Fuel tank capacity (L)
100
Consumption (L/h)
7.8
Running time (h)
12.8
Length (mm)
1650
Width (mm)
850
Height (mm)
1650
Dry weight (Kg)
665
AVR
Yes
Silenced
No
Super silenced
No
Product type
Generator
ATS Switch device
Optional
Voltage regulator
AVR
Engine manufacturer
Yanmar
Details

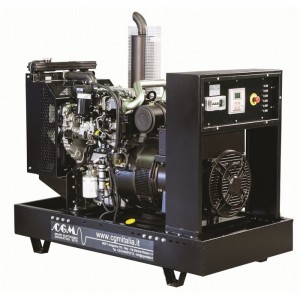

CGM 40Y-B50 Single/three-phase 40KVA generator with automatic control panel

The CGM 40Y-B50 is a single/three phase 40KVA generator with a 1500 rpm Yanmar diesel engine, compact and easy to use, mounted on a fixed base. This CGM 40Y-B50 generator is in an open version and is easy to handle and transport thanks to its base with pivoting feet.
The CGM 40Y-B50 generator consists of a Linz, Stamford or Marelli Motori, self-excited, brushless alternator with AVR voltage regulator. The CGM 40Y-B50 generator is equipped with an electric starter with a low fuel consumption battery, consuming only 7,8 litres per hour at 75% load. In addition, it has a control panel with automatic control unit and terminal box for automatic start-up.
This generator is perfect for use outdoors, such as on construction sites.
The CGM 40Y-B50 generator is part of the Industrial range and is characterised by its versatility for installation in urban environments such as shops or shopping centres, for the telecommunications environment, for military applications and much more.

Technical characteristics of the CGM 40Y-B50 generator:
Phase type: Single-phase / Three-phase
Maximum three-phase power: 35 KW / 44 KVA
Three-phase continuous power: 32 KW / 40 KVA
Maximum single-phase power: 11.67 KW / 14.67 KVA
Single-phase continuous use power: 10.67 KW / 13.33 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: YANMAR 4TNV98T-GECS
Engine speed: 1500 rpm
Starting: Electric
Consumption: 7.8 Lt/h at 75% load
Length: 1650 mm
Width: 850 mm
Height: 1650 mm
Weight: 665 Kg
AVR

If you are looking for a product like the CGM 40Y-B50 then you can browse the full range of CGM generators or other types of products in our catalogue to find the one that best suits your needs.

Images and technical data are not binding.
