      ERLE ENW250 AUT

      Phase Type: Three-Phase
      Maximum Three-Phase Power: 250 KVA / 200 KW
      Three-Phase Continuous Power: 275 KVA / 220 KW
      VAC Voltage: 400 V
      Frequency (Hz): 50
      Starting Frame: Electric
      Engine: Scania DC09 072A/02-11
      RPM: 1500
      Power: Diesel
      Fuel tank capacity: 400 l
      Consumption @ 75 % of load: 45 l/h
      Autonomy @ 75 % of load: 8. 9 h
      Acoustic pressure: 70 dB(A) @ 7m

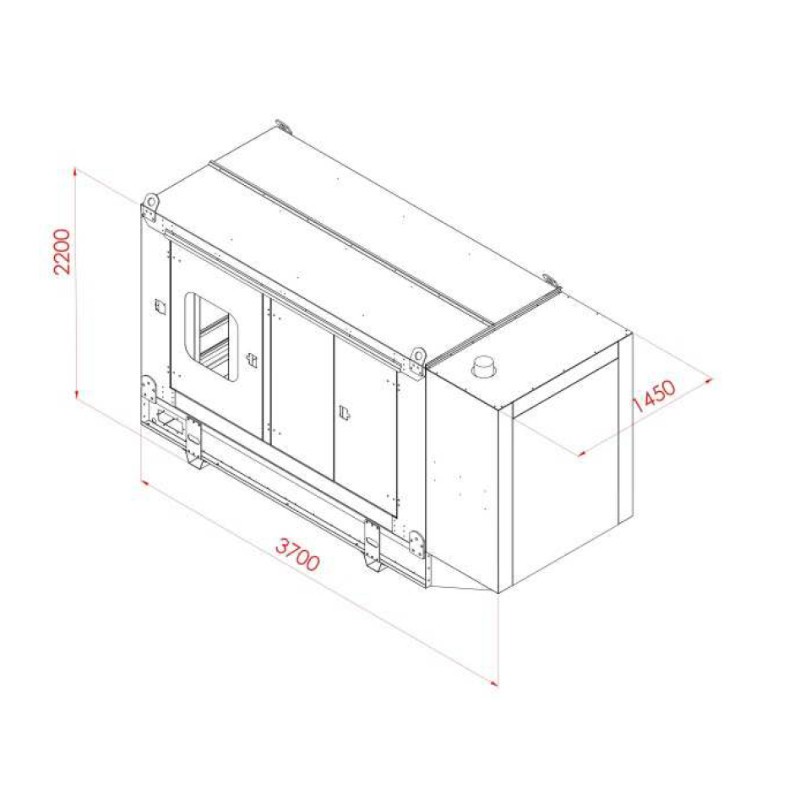

      Length: 3700 mm
      Width: 1450 mm
      Height: 2200 mm
      Net weight: 2980 Kg

      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      TESSARI
      ERLE ENW250 AUT

      Data sheet

      Phase
      Three phase
      Maximum power three phase (KW)
      220
      Continuous power three phase (KW)
      200
      Maximum power three phase (KVA)
      275
      Continuous power three phase (KVA)
      250
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      400
      Engine
      Scania DC09 072A/02-11
      Emissions Regulations
      Stationary Use
      Engine rpm (rpm)
      1500
      Speed governor
      Electronic
      Starting system
      Electric
      Cooling
      Coolant Liquid
      Poles
      4
      Protection degree
      IP23
      Fuel tank capacity (L)
      400
      Consumption (L/h)
      45 @ 75%
      Acoustic pressure
      70 dB(A) at 7 m
      Length (mm)
      3700
      Width (mm)
      1450
      Height (mm)
      2200
      Dry weight (Kg)
      2980
      Silenced
      Yes
      Super silenced
      Yes
      Brushes
      No
      PMG
      No
      Product type
      Generator
      ATS Switch device
      Optional
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR
      Engine manufacturer
      Scania

      Specific References

      New

      TESSARI ERLE ENW250 THREE-PHASE GENERATOR 275KVA SILENCED AUTOMATIC CENRTALINE

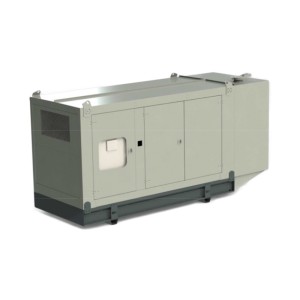

      TESSARI ERLE ENW250 is a three-phase generating set equipped with a Scania DC09 072A/02-11 engine powered by diesel, capable of delivering a maximum power of 275KVA, complete with voltage regulator AVR and Automatic Control Unit.

      The TESSARI ERLE ENW250 generating set is equipped with a soundproof cabin, capable of reducing the acoustic emission up to 70 dBA perceived at a distance of 7 meters. This feature allows the TESSARI ERLE ENW250 to be considered Super Silent

      Thanks to the supplied automatic control unit, the TESSARI ERLE ENW250 can be connected to the network by means of an ATS panel (optional). This allows the genset to start operating instantly and automatically in the event of a power failure.

      The voltage regulator included with the supply of TESSARI ERLE ENW250, is an electronic device able to automatically regulate the voltage and eventually the frequency and/or the electric current according to set values. These values can be modified or bound to the technical characteristics of the regulator itself.

      Basically, thanks to an AVR the alternating current (with frequency and voltage variable over time) coming from the alternator is regulated and transformed into direct current at constant voltage

      TECHNICAL CHARACTERISTICS TESSARI ERLE ENW250

      Phase Type: Three-Phase
      Maximum Three-Phase Power: 250 KVA / 200 KW
      Three-Phase Continuous Power: 275 KVA / 220 KW
      VAC Voltage: 400 V
      Frequency (Hz): 50
      Starting Frame: Electric
      Engine: Scania DC09 072A/02-11
      RPM: 1500
      Power: Diesel
      Fuel tank capacity: 400 l
      Consumption @ 75 % of load: 45 l/h
      Autonomy @ 75 % of load: 8. 9 h
      Acoustic pressure: 70 dB(A) @ 7m
      Length: 3700 mm
      Width: 1450 mm
      Height: 2200 mm
      Net weight: 2980 Kg

      Are you looking for a generator set with different technical characteristics? Here you can find the full range of TESSARI generator sets or other specialized brands.

      Images and technical data are not binding and may be subject to revisions by the manufacturer.
