GENERATOR SINGLE-PHASE/THREE-PHASE 143 KVA AVR
Phase type: Single phase / Three phase
Maximum three phase power: 143 KVA / 114.4 KW
Three phase continuous use power: 130 KVA / 104 KW
Maximum single phase power: 47.6 KVA / 38 KW
Maximum single phase continuous use power: 43.3 KVA / 34. 5 KW
Fuel: Diesel
Voltage: 230/400 V
Frequency: 50 Hz
Motor: FPT NEF67 TM4
Motor speed: 1500 rpm
Voltage regulator: AVR
Start: Electric
Tank capacity: 230 l
Consumption: 29. 4Lt/h
Length: 3400 mm
Width: 1100 mm
Height: 1820 mm
Weight: 1850 Kg
Super silenced
List price
tax incl.
tax excl.
Discounted Price
30,373.12 € tax incl.
24,896.00 € tax excl.
Shipping from 529.00 € to Italy buy it today.
Calculate Shipping Cost
GE TRIFASE 143 KVA
Data sheet
- Phase
- Single phase / Three phase
- Maximum power single phase (KW)
- 38
- Continuous power single phase (KW)
- 34.5
- Maximum power single phase (KVA)
- 47.6
- Continuous power single phase (KVA)
- 43.3
- Maximum power three phase (KW)
- 114.4
- Continuous power three phase (KW)
- 104
- Maximum power three phase (KVA)
- 143
- Continuous power three phase (KVA)
- 130
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Sockets configuration
- Terminal box
- Engine
- FPT NEF67 TM4
- Emissions Regulations
- Stationary Use
- Engine rpm (rpm)
- 1500
- Starting system
- Electric
- Engine capacity (cm³)
- 4500
- Number cylinders
- 4
- Cooling
- Water
- Alternator
- Synchronous
- Protection degree
- IP23
- Motor insulation class
- H
- Fuel tank capacity (L)
- 230
- Consumption (L/h)
- 29.4
- Acoustic power
- 95 dB(A)
- Acoustic pressure
- 70 dB(A) at 7 m
- Length (mm)
- 3400
- Width (mm)
- 1100
- Height (mm)
- 1820
- Dry weight (Kg)
- 1850
- Silenced
- Yes
- Super silenced
- Yes
- Product type
- Generator
- ATS Switch device
- Yes
- Voltage regulator
- AVR
- Engine manufacturer
- FPT Iveco
Specific References
New
GENERATOR SINGLE-PHASE/ THREE-PHASE POWER 143 KVA AVR

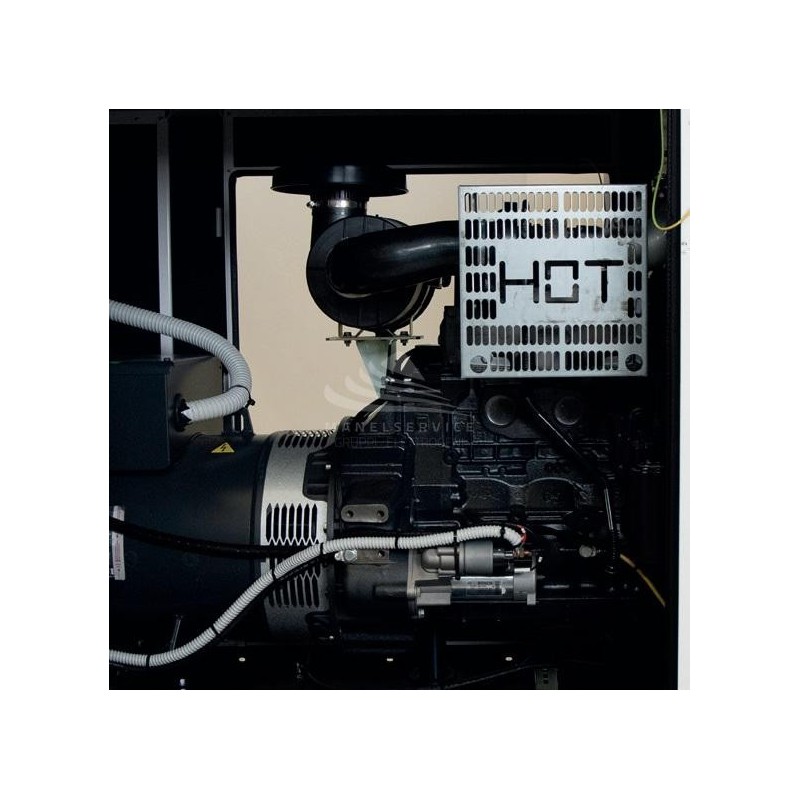

Generator set 143KVA single-phase/three-phase with FPT engine powered by diesel at 1500 rpm, compact and easy to use, mounted on a fixed base. This generator is equipped with a soundproof cabin made of structural steel sheet, weatherproof and internal lining of soundproofing material with high noise reduction that make it supersilenced.

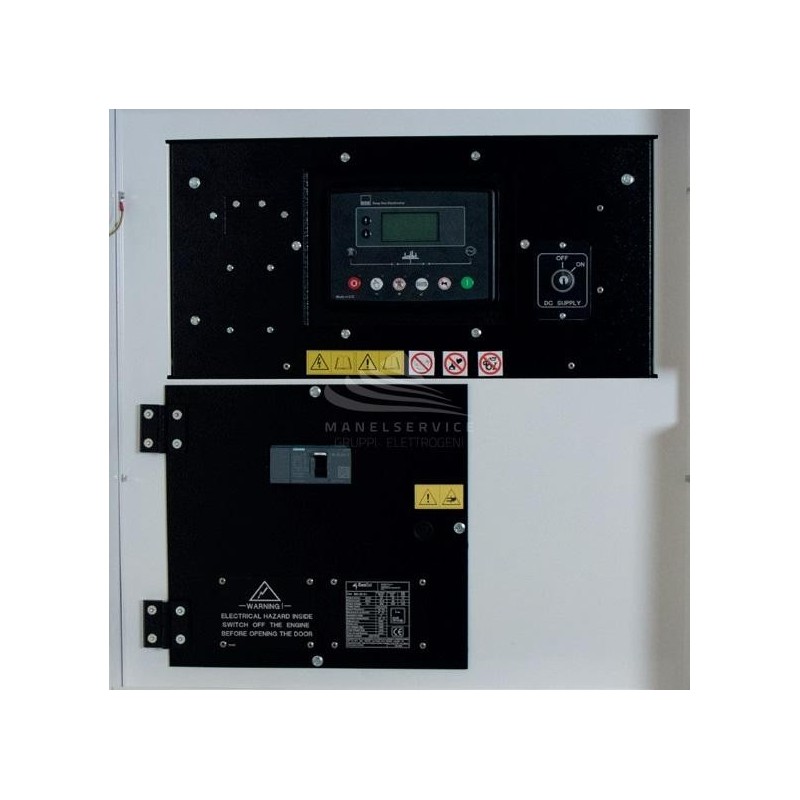

The generator set consists of a Stamford, Mecc Alte or Marelli Motori alternator, self-excited, brushless and with AVR voltage regulator. The generator set is equipped with electric start with battery with a low fuel consumption in fact it consumes only 28 liters/hour at 75% of the load. In addition to this, it has a panel with an automatic control unit and a terminal board for automatic start-up.
This generator set is perfect for outdoor use such as for shipbuilding use.
TECHNICAL FEATURES
Phase type: Single phase / Three phase
Maximum three phase power: 143 KVA / 114.4 KW
Three phase continuous use power: 130 KVA / 104 KW
Maximum single phase power: 47.6 KVA / 38 KW
Maximum single phase continuous use power: 43.3 KVA / 34. 5 KW
Fuel: Diesel
Voltage: 230/400 V
Frequency: 50 Hz
Motor: FPT NEF67 TM4
Motor speed: 1500 rpm
Voltage regulator: AVR
Start: Electric
Tank capacity: 230 l
Consumption: 29. 4Lt/h
Length: 3400 mm
Width: 1100 mm
Height: 1820 mm
Weight: 1850 Kg
Super silenced
Are you looking for a generator set with different technical characteristics? Here you can find the full range or other brands specializing in the field.
The images are purely indicative.
