CGM 400P-B400 WITH AUTOMATIC CONTROL PANEL

Name: CGM 400P-B400 WITH AUTOMATIC CONTROL PANEL
Brand: CGM
SKU: CGM 400P-B400 AUTOMATICO
Price: 65980.65 EUR
Availability: InStock

Reference CGM 400P-B400 AUTOMATICO

Phase type: Single-phase / Three-phase
Maximum three-phase power: 352 KW / 440 KVA
Three-phase continuous power: 320 KW / 400 KVA
Maximum single-phase power: 117.33 KW / 146.67 KVA
Single-phase continuous use power: 106.67 KW / 133.33 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: PERKINS 2206A-E13TAG3
Engine speed: 1500 rpm
Starting: Electric
Consumption: 62 Lt/h at 75% load
Length: 2950 mm
Width: 1550 mm
Height: 2100 mm
Weight: 3430 Kg
AVR

List price

87,974.20 € tax incl.

72,110.00 € tax excl.

Discounted Price

65,980.65 € tax incl.

54,082.50 € tax excl.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference CGM 400P-B400 AUTOMATICO

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KW): 117.33
Continuous power single phase (KW): 106.67
Maximum power single phase (KVA): 146.6
Continuous power single phase (KVA): 133.33
Maximum power three phase (KW): 352
Continuous power three phase (KW): 320
Maximum power three phase (KVA): 440
Continuous power three phase (KVA): 400
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: Morsettiera
Engine: Perkins 2206A-E13TAG3
Emissions Regulations: Stationary Use
Engine rpm (rpm): 1500
Speed governor: Electronic
Starting system: Elettrico
Engine capacity (cm³): 12500
Number cylinders: 6
Cooling: Water
Alternator: Brushless
Poles: 4
Protection degree: IP44
Bore x stroke (mm): 130 x 157
Fuel tank capacity (L): 400
Consumption (L/h): 62
Running time (h): 6.5
Width (mm): 1550
Height (mm): 2100
Dry weight (Kg)
Silenced: No
Super silenced: No
Product type: Generator
ATS Switch device: Optional
Voltage regulator: AVR
Engine manufacturer: Perkins

Specific References

Condition New

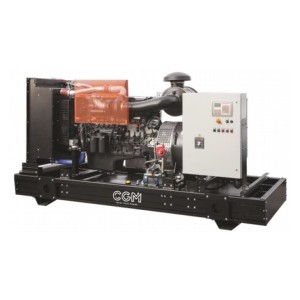

CGM 400P-B400 Single/three-phase 400KVA generator with automatic control panel

The CGM 400P-B400 is a single/three phase 400KVA generator with a 1500 rpm Perkins diesel engine, compact and easy to use, mounted on a fixed base. This CGM 400P-B400 generator is in an open version and is easy to handle and transport thanks to its base with pivoting feet.

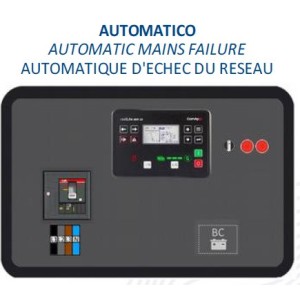

The CGM 400P-B400 generator consists of a Stamford, Mecc Alte or Marelli Motori, self-excited, brushless alternator with AVR voltage regulator. The CGM 400P-B400 generator is equipped with an electric starter with a low fuel consumption battery, consuming only 62 litres per hour at 75% load. In addition, it has a control panel with automatic control unit and terminal box for automatic start-up.
This generator is perfect for use outdoors, such as on construction sites.
The CGM 400P-B400 generator is part of the Industrial range and is characterised by its versatility for installation in urban environments such as shops or shopping centres, for the telecommunications environment, for military applications and much more.

Technical characteristics of the CGM 400P-B400 generator:
Phase type: Single-phase / Three-phase
Maximum three-phase power: 352 KW / 440 KVA
Three-phase continuous power: 320 KW / 400 KVA
Maximum single-phase power: 117.33 KW / 146.67 KVA
Single-phase continuous use power: 106.67 KW / 133.33 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: PERKINS 2206A-E13TAG3
Engine speed: 1500 rpm
Starting: Electric
Consumption: 62 Lt/h at 75% load
Length: 2950 mm
Width: 1550 mm
Height: 2100 mm
Weight: 3430 Kg
AVR

If you are looking for a product like the CGM 400P-B400 then you can browse the full range of CGM generators or other types of products in our catalogue to find the one that best suits your needs.

Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
