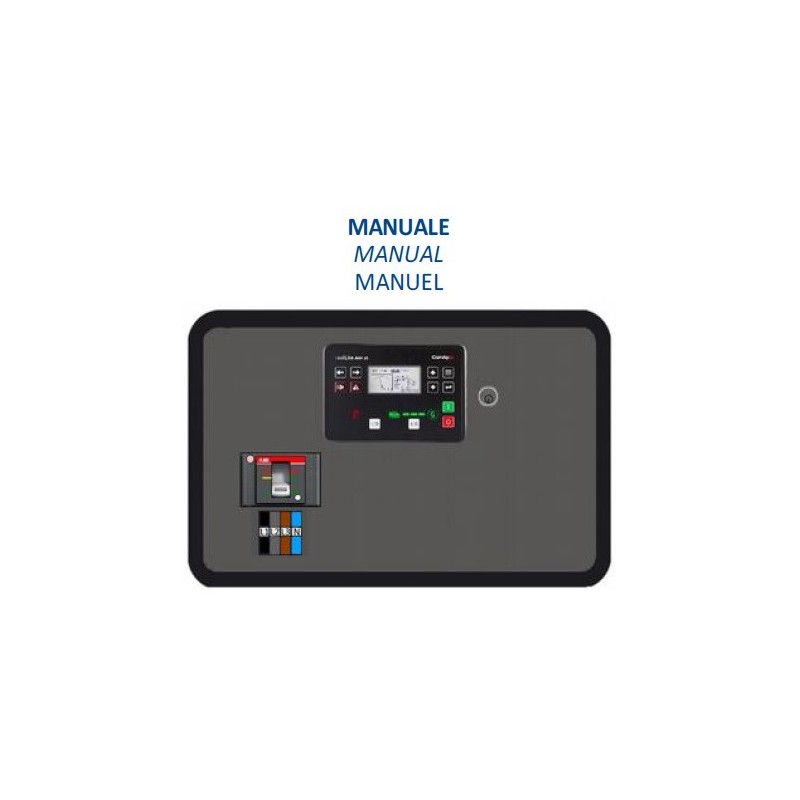

CGM 150P-B200 WITH MANUAL CONTROL PANEL

Name: CGM 150P-B200 WITH MANUAL CONTROL PANEL
Brand: CGM
SKU: CGM 150P-B200 MANUALE
Price: 28017.3 EUR
Availability: InStock

Reference CGM 150P-B200 MANUALE

Phase type: Single-phase / Three-phase
Maximum three-phase power: 132 KW / 165 KVA
Three-phase continuous power: 120 KW / 150 KVA
Maximum single-phase power: 44 KW / 55 KVA
Single-phase continuous use power: 40 KW / 50 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: PERKINS 1106A-70TAG2
Engine speed: 1500 rpm
Starting: Electric
Consumption: 24.5 Lt/h at 75% load
Length: 2400 mm
Width: 1100 mm
Height: 2000 mm
Weight: 1730 Kg
AVR

List price

37,356.40 € tax incl.

30,620.00 € tax excl.

Discounted Price

28,017.30 € tax incl.

22,965.00 € tax excl.

Shipping from 616.10 € to Italy buy it today. tax incl.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference CGM 150P-B200 MANUALE

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KW): 44
Continuous power single phase (KW): 40
Maximum power single phase (KVA): 55
Continuous power single phase (KVA): 50
Maximum power three phase (KW): 132
Continuous power three phase (KW): 120
Maximum power three phase (KVA): 165
Continuous power three phase (KVA): 150
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: Morsettiera
Engine: Perkins 1106A-70TAG2
Emissions Regulations: Stationary Use
Engine rpm (rpm): 1500
Speed governor: Mechanical
Starting system: Elettrico
Engine capacity (cm³): 7010
Number cylinders: 6
Cooling: Water
Alternator: Brushless
Poles: 4
Protection degree: IP44
Bore x stroke (mm): 105 x 135
Fuel tank capacity (L): 250
Consumption (L/h): 24.5
Running time (h): 10.2
Length (mm)
Width (mm): 1100
Height (mm): 360
Dry weight (Kg): 1730
Silenced: No
Super silenced: No
Product type: Generator
ATS Switch device: No
Voltage regulator: AVR
Engine manufacturer: Perkins

Specific References

Condition New

CGM 150P-B200 Single/three-phase 150KVA generator with manual control panel

The CGM 150P-B200 is a single/three phase 150KVA generator with a 1500 rpm Perkins diesel engine, compact and easy to use, mounted on a fixed base. This CGM 150P-B200 generator is in an open version and is easy to handle and transport thanks to its base with pivoting feet.
The CGM 150P-B200 generator consists of a Stamford, Mecc Alte or Marelli Motori, self-excited, brushless alternator with AVR voltage regulator. The CGM 150P-B200 generator is equipped with an electric starter with a low fuel consumption battery, consuming only 24,5 litres per hour at 75% load. The fuel tank is incorporated in the crankcase for ease of use.
This generator is perfect for use outdoors, such as on construction sites.
The CGM 150P-B200 generator is part of the Industrial range and is characterised by its versatility for installation in urban environments such as shops or shopping centres, for the telecommunications environment, for military applications and much more.

Technical characteristics of the CGM 150P-B200 generator:

If you are looking for a product like the CGM 150P-B200 then you can browse the full range of CGM generators or other types of products in our catalogue to find the one that best suits your needs.

Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
