      CGM 135P-C200 AUTOMATICO

      Phase type: Single-phase / Three-phase
      Maximum three-phase power: 119.2 KW / 149 KVA
      Three-phase continuous power: 108 KW / 135 KVA
      Maximum single-phase power: 39.73 KW / 49.67 KVA
      Single-phase continuous use power: 36 KW / 45 KVA
      Fuel: Diesel
      Voltage: 230 V / 400 V
      Frequency: 50 Hz
      Motor: PERKINS 1106A-70TG1
      Engine speed: 1500 rpm
      Starting: Electric
      Consumption: 22.7 Lt/h at 75% load
      Length: 3200 mm
      Width: 1100 mm
      Height: 2090 mm
      Weight: 1930 Kg
      Super-silenced
      AVR

      List price
      48,653.60 € tax incl.
      39,880.00 € tax excl.
      Discounted Price
      30,408.50 € tax incl.
      24,925.00 € tax excl.
      Shipping from 555.45 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: CGM 135P-C200 WITH AUTOMATIC CONTROL PANEL

      PERSONAL DATA


      Ask a question
      Product: CGM 135P-C200 WITH AUTOMATIC CONTROL PANEL
      Offer on letterhead
      Product: CGM 135P-C200 WITH AUTOMATIC CONTROL PANEL
      CGM
      CGM 135P-C200 AUTOMATICO

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power single phase (KW)
      39.73
      Continuous power single phase (KW)
      36
      Maximum power single phase (KVA)
      49.67
      Continuous power single phase (KVA)
      45
      Maximum power three phase (KW)
      119.2
      Continuous power three phase (KW)
      108
      Maximum power three phase (KVA)
      149
      Continuous power three phase (KVA)
      135
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Sockets configuration
      Terminal box
      Engine
      Perkins 1106A-70TG1
      Emissions Regulations
      Stationary Use
      Engine rpm (rpm)
      1500
      Speed governor
      Mechanical
      Starting system
      Electric
      Engine capacity (cm³)
      7010
      Number cylinders
      6
      Cooling
      Water
      Alternator
      Brushless
      Poles
      4
      Protection degree
      IP44
      Bore x stroke (mm)
      105 x 135
      Fuel tank capacity (L)
      250
      Consumption (L/h)
      22.7
      Running time (h)
      11
      Acoustic pressure
      69 dB(A) at 7 m
      Length (mm)
      3200
      Width (mm)
      1100
      Height (mm)
      2090
      Dry weight (Kg)
      1930
      Silenced
      Yes
      Super silenced
      Yes
      Product type
      Generator
      ATS Switch device
      Optional
      Voltage regulator
      AVR
      Engine manufacturer
      Perkins

      Specific References

      New

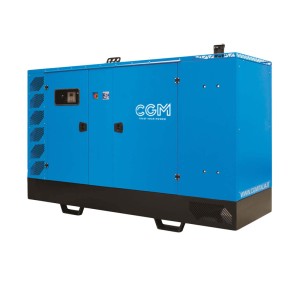

      CGM 135P-C200 Single/three-phase 135KVA generator super-silenced with automatic control panel

      The CGM 135P-C200 is a single/three phase 135KVA generator with a 1500 rpm Perkins diesel engine, compact and easy to use, mounted on a fixed base. This generator is equipped with a sound-proofed cabin made of structural steel plate, weatherproofing and an interior lining made of sound-absorbing material with high noise reduction, which makes the CGM 135P-C200 supersilenced.

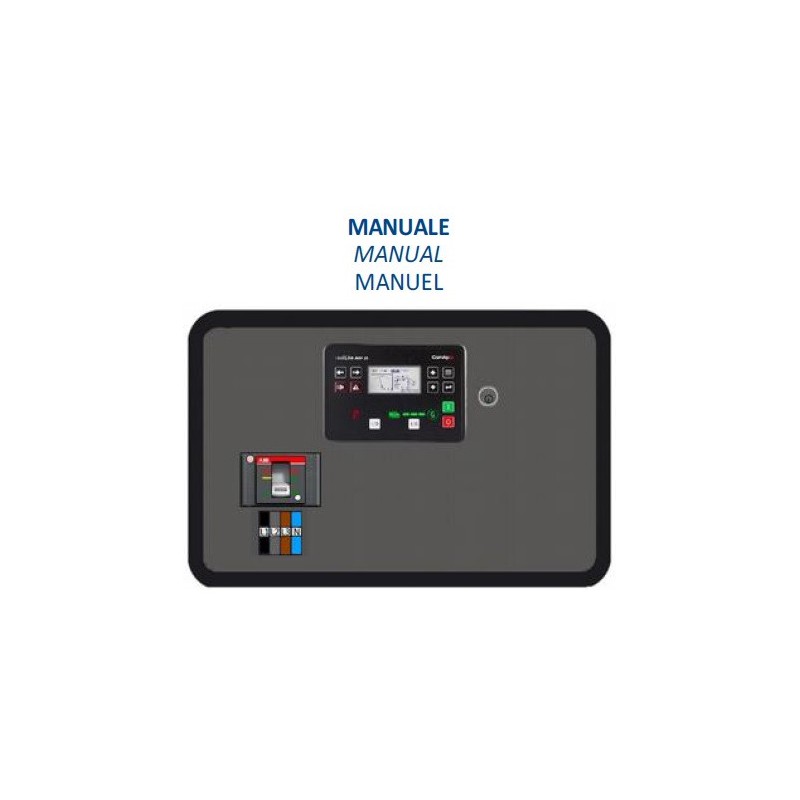

      The CGM 135P-C200 generator consists of a Stamford, Mecc Alte or Marelli Motori, self-excited, brushless alternator with AVR voltage regulator. The CGM 135P-C200 generator is equipped with an electric starter with a low fuel consumption battery, consuming only 22,7 litres per hour at 75% load. In addition, it has a control panel with automatic control unit and terminal box for automatic start-up.
      This generator is perfect for use outdoors, such as on construction sites.
      The CGM 135P-C200 generator is part of the Industrial range and is characterised by its versatility for installation in urban environments such as shops or shopping centres, for the telecommunications environment, for military applications and much more.

      Technical characteristics of the CGM 135P-C200 generator:
      Phase type: Single-phase / Three-phase
      Maximum three-phase power: 119.2 KW / 149 KVA
      Three-phase continuous power: 108 KW / 135 KVA
      Maximum single-phase power: 39.73 KW / 49.67 KVA
      Single-phase continuous use power: 36 KW / 45 KVA
      Fuel: Diesel
      Voltage: 230 V / 400 V
      Frequency: 50 Hz
      Motor: PERKINS 1106A-70TG1
      Engine speed: 1500 rpm
      Starting: Electric
      Consumption: 22.7 Lt/h at 75% load
      Length: 3200 mm
      Width: 1100 mm
      Height: 2090 mm
      Weight: 1930 Kg
      Super-silenced
      AVR

      If you are looking for a product like the CGM 135P-C200 then you can browse the full range of CGM generators or other types of products in our catalogue to find the one that best suits your needs.

      Images and technical data are not binding.
