CGM 80P-B100 Single/three-phase 80KVA generator with automatic control panel

The CGM 80P-B100 is a single/three phase 80KVA generator with a 1500 rpm Perkins diesel engine, compact and easy to use, mounted on a fixed base. This CGM 80P-B100 generator is in an open version and is easy to handle and transport thanks to its base with pivoting feet.

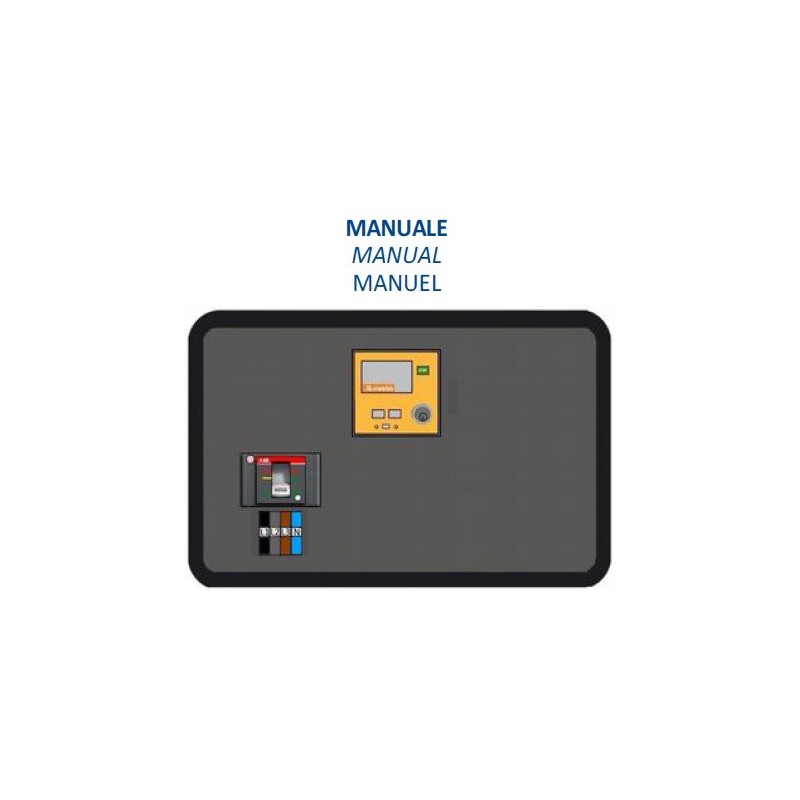

The CGM 80P-B100 generator consists of a Stamford, Mecc Alte or Marelli Motori, self-excited, brushless alternator with AVR voltage regulator. The CGM 80P-B100 generator is equipped with an electric starter with a low fuel consumption battery, consuming only 14 litres per hour at 75% load. In addition, it has a panel with an automatic control unit and terminal block for automatic start-up.
This generator is perfect for use outdoors, such as on construction sites.
The CGM 80P-B100 generator is part of the Industrial range and is characterised by its versatility for installation in urban environments such as shops or shopping centres, for the telecommunications environment, for military applications and much more.

Technical characteristics of the CGM 80P-B100 generator:
Phase type: Single-phase / Three-phase
Maximum three-phase power: 70.4 KW / 88 KVA
Three-phase continuous power: 64 KW / 80 KVA
Maximum single-phase power: 23.47 KW / 29.33 KVA
Single-phase continuous use power: 21.33 KW / 26.67 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: PERKINS 1104A-44TG2
Engine speed: 1500 rpm
Starting: Electric
Consumption: 14 Lt/h at 75% load
Length: 2100 mm
Width: 1000 mm
Height: 1800 mm
Weight: 1010 Kg
AVR
