Data sheet

Phase

Single phase / Three phase

Continuous power single phase (KW)

4

Continuous power single phase (KVA)

5

Maximum power three phase (KW)

12

Continuous power three phase (KW)

10.8

Maximum power three phase (KVA)

15

Continuous power three phase (KVA)

13.5

Fuel

Diesel

Frequency (Hz)

50

Voltage (V)

230 / 400

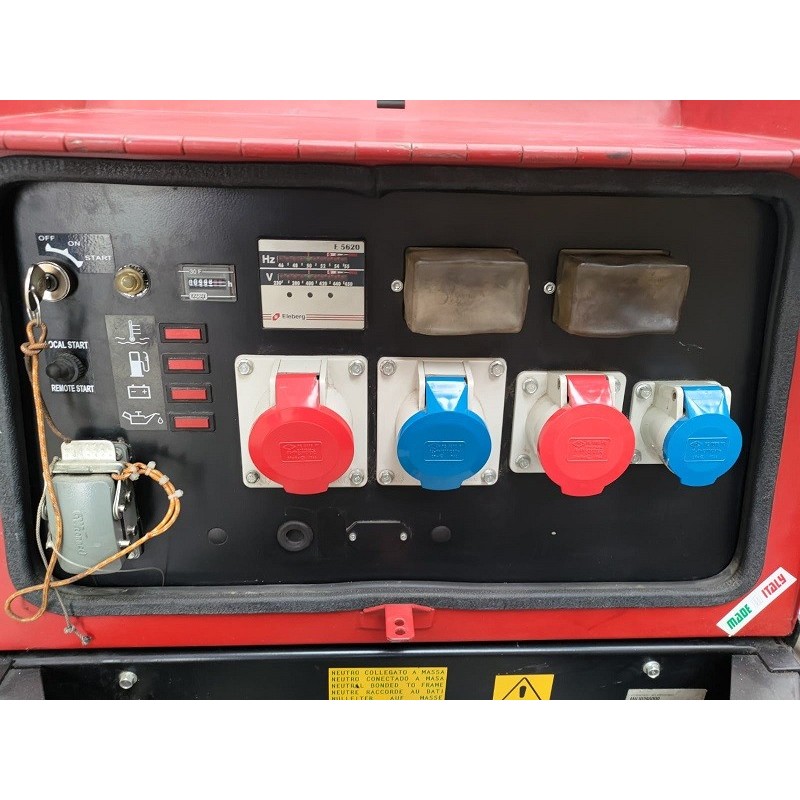

Sockets configuration

1 x 400V 32A 3P+N+T CEE - 1 x 400V 16A 3P+N+T CEE - 1 x 230V 32A 2P+T CEE - 1 x 230V 16A

Engine

Lombardini 12LD477/2

Engine rpm (rpm)

3000

Starting system

Electric

Engine capacity (cm³)

954

Number cylinders

2

Cooling

Air

Inyección

Direct

Alternator

Sincrono trifase, autoeccitato, autoregolato

Fuel tank capacity (L)

23

Running time (h)

8.2 at 75% of the load

Acoustic power

96 dB(A)

Acoustic pressure

71 dB(A) at 7 m

Length (mm)

1320

Width (mm)

790

Height (mm)

750

Dry weight (Kg)

315

Silenced

Yes

ATS Switch device

Optional

Voltage regulator

Compound

Engine manufacturer

Lombardini
