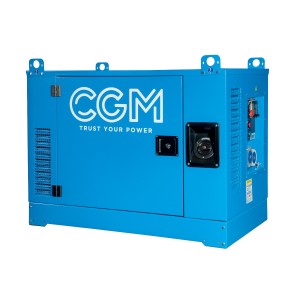

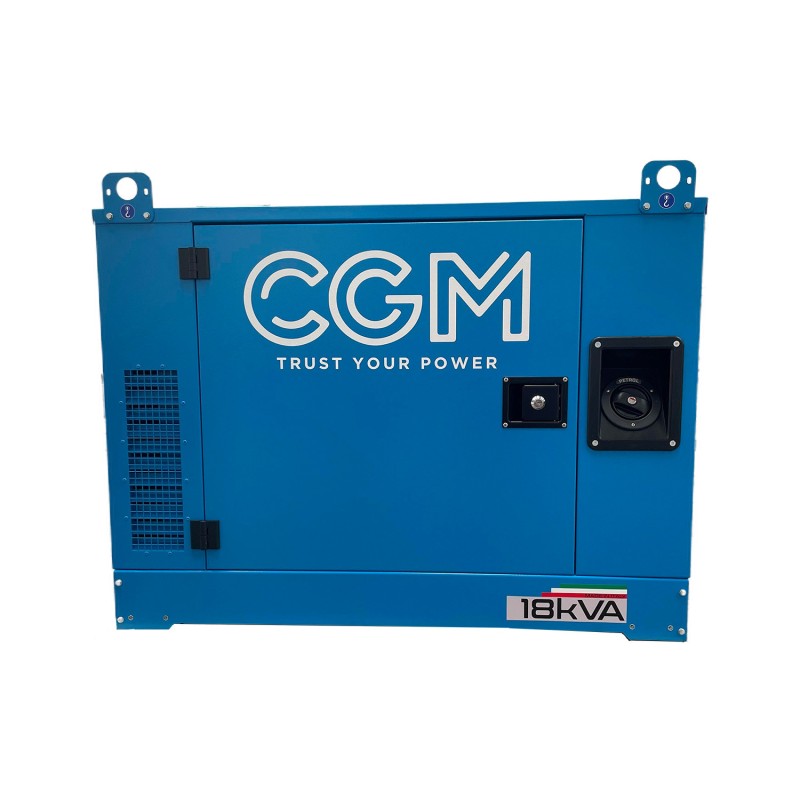

CGM CS17000 SINGLE-PHASE GENERATOR STAGE V 17KVA
CS17000
Phase Type: Single-Phase
Maximum Power: 16,8 KW
Continuous Power: 15,3 KW
Maximum Power: 18,7KVA
Continuous Power: 17KVA
Fuel: Gasoline
Voltage: 230 V
Frequency: 50 Hz
Engine: BRIGGS & STRATTON 31HP
Number of Cylinders: 2
Emission Standard: Stage V
Engine RPM: 3000 RPM
Boosting: Electric
Alternator: NSM made in Italy
Voltage regulator system: AVR
Consumption: 6.5 Lt/h at 75% load
Tank capacity: 60 Lt
Autonomy: 9.2 h at 75% load
Length: 1200 mm
Width: 730 mm
Height: 930 mm
Weight: 290 Kg
Supersilenced
List price
tax incl.
tax excl.
Discounted Price
8,381.40 € tax incl.
6,870.00 € tax excl.
Shipping from 129.32 € to Italy buy it today. tax incl.
Calculate Shipping Cost
CS17000
Data sheet
- Phase
- Single phase
- Maximum power single phase (KW)
- 16.8
- Continuous power single phase (KW)
- 15.3
- Maximum power single phase (KVA)
- 18.7
- Continuous power single phase (KVA)
- 17
- Fuel
- Gasoline
- Frequency (Hz)
- 50
- Voltage (V)
- 230
- Sockets configuration
- 1 presa CEE 16A 3P 230V, n.1 presa CEE 32A 3P 230V, n. 1 presa CEE 63A 3P 230V
- Engine
- BRIGGS & STRATTON 31HP
- Emissions Regulations
- Stage 5
- Engine rpm (rpm)
- 3000
- Starting system
- Elettrico
- Engine capacity (cm³)
- 896
- Number cylinders
- 2
- Alternator
- NSM, made in Italy
- Fuel tank capacity (L)
- 60
- Consumption (L/h)
- 6.5 @ 75%
- Running time (h)
- 9.2
- Length (mm)
- 1200
- Width (mm)
- 730
- Height (mm)
- 930
- Dry weight (Kg)
- 290
- Silenced
- Yes
- Super silenced
- Yes
- Product type
- Generator
- Voltage regulator
- AVR
- Engine manufacturer
- Briggs&Stratton
Specific References
New
CGM CS17000 SINGLE-PHASE GENERATOR STAGE V 17KVA
CGM CS17000 single-phase generator of 17 KVA with BRIGGS & STRATTON engine powered by STAGE V gasoline at 3000 rpm, compact and easy to use.
The CGM CS17000 generator consists of an NSM Made in Italy, self-excited brushless alternator with AVR voltage regulator. The generator is equipped with electric start with battery that allows a practical and fast use even when cold. The CGM CS17000 has a low fuel consumption, in fact it consumes only 6,5 liters/hour at 75% of the load.
The CGM CS17000 is part of the QUIET series because thanks to the hood has low noise emissions and is supersilenced. This generator is 3000 rpm, with BRIGGS & STRATTON diesel engine with electric start with key and battery.
Technical features of the CGM CS17000:
Phase Type: Single-Phase
Maximum Power: 16,8 KW
Continuous Power: 15,3 KW
Maximum Power: 18,7KVA
Continuous Power: 17KVA
Fuel: Gasoline
Voltage: 230 V
Frequency: 50 Hz
Engine: BRIGGS & STRATTON 31HP
Number of Cylinders: 2
Emission Standard: Stage V
Engine RPM: 3000 RPM
Boosting: Electric
Alternator: NSM made in Italy
Voltage regulator system: AVR
Consumption: 6. 5 Lt/h at 75% load
Tank capacity: 60 Lt
Autonomy: 9.2 h at 75% load
Length: 1200 mm
Width: 730 mm
Height: 930 mm
Weight: 290 Kg
Supersilenced
Discover the full range of current generator from CGM on our catalog to find the one that best suits your needs.
Images and technical data not binding.
