      Combiplus RG10000HEO-E5-C

      Power supply: Gasoline
      Firing: Electric
      Phase type: Single-phase
      Continuous output: 10,4KVA / 9,4KW
      Maximum output: 12,3KVA / 11,1KW
      Motor: Honda GX630
      Emissions regulation: Non-emissioned
      Voltage: 230V
      Frequency: 50 Hz
      3000 rpm
      Tank: 19 Lt.
      Autonomy @ 75%: 3.8 h fixed rpm
      Boosting: Manual
      Length (mm): 840
      Width (mm): 620
      Height (mm): 690
      Dry weight (Kg): 159

      List price
      5,984.10 € tax incl.
      4,905.00 € tax excl.
      Discounted Price
      3,037.80 € tax incl.
      2,490.00 € tax excl.
      Shipping from 50.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      GENMAC
      Combiplus RG10000HEO-E5-C

      Data sheet

      Phase
      Single phase
      Maximum power single phase (KW)
      11.1
      Continuous power single phase (KW)
      9.4
      Maximum power single phase (KVA)
      12.3
      Continuous power single phase (KVA)
      10.4
      Fuel
      Gasoline
      Frequency (Hz)
      50
      Voltage (V)
      230
      Engine
      Honda GX630, 4 stroke
      Engine rpm (rpm)
      3000
      Starting system
      Electric
      Cooling
      Air
      Fuel tank capacity (L)
      19
      Running time (h)
      3.8
      Length (mm)
      870
      Width (mm)
      620
      Height (mm)
      690
      Dry weight (Kg)
      159
      Product type
      Generator
      ATS Switch device
      No
      Voltage regulator
      AVR (optional)

      Specific References

      New

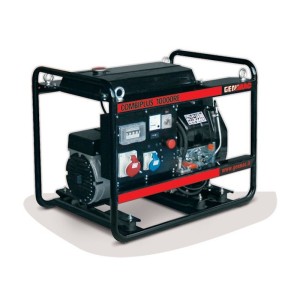

      GENMAC Combiplus RG10000HEO-E5 GENERATOR 12,3KVA

      The generator Genmac Combiplus RG10000HEO-E5 single phase has a Honda gasoline powered engine capable of delivering a power of 12,3KVA with the possibility of connection to optional AVR.

      The GENMAC Combiplus RG10000HEO-E5 generator is equipped with a Honda Stage V engine certified for mobile use in the EU, but which does not comply with others criteria of the regulation. The engine is powered by gasoline by means of a tank with a capacity of 19 liters for an autonomy of about three and a half hours, complete with electric starter.

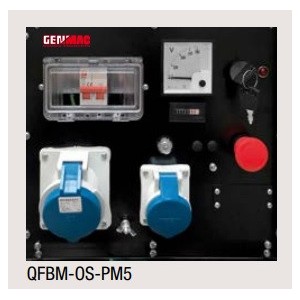

      The Genmac 12,3KVA generator is equipped with a front control panel for portable units, with manual start and oil level sensor, with the possibility of modification by the customer with the optional remote control panel.

      In combination with the generator it is possible to request the handling kit specifically designed for the selected model, for a more comfortable transport before the installation on the working lug.

      The 12,3KVA generator is equipped with capacitor voltage regulator, on request it is possible to supply it with AVR voltage regulator.

      Optional AVR regulator

      The AVR brings a significant improvement in output voltage stability; this is particularly useful with commonly used machines with reactive load, such as refrigerators, freezers, air conditioners and garden machines. This will increase the life of your devices.

      The optional AVR is a device that keeps the out voltage more constant and less load-dependent. Thanks to this technology there are fewer drops or current peaks and this makes it safer to use the various devices connected, improving their performance and durability.

      Technical features of generator 12,3KVA Genmac Combiplus RG10000HEO-E5

      Power supply: Gasoline
      Firing: Electric
      Phase type: Single-phase
      Continuous output: 10,4KVA / 9,4KW
      Maximum output: 12,3KVA / 11,1KW
      Motor: Honda GX630
      Emissions regulation: Non-emissioned
      Voltage: 230V
      Frequency: 50 Hz
      3000 rpm
      Tank: 19 Lt.
      Autonomy @ 75%: 3.8 h fixed rpm
      Boosting: Manual
      Length (mm): 840
      Width (mm): 620
      Height (mm): 690
      Dry weight (Kg): 159

      If you are looking for another product then you can consult on our catalog other terrestrial gene-groups.

      Images and technical data are not binding and may be subject to review

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
