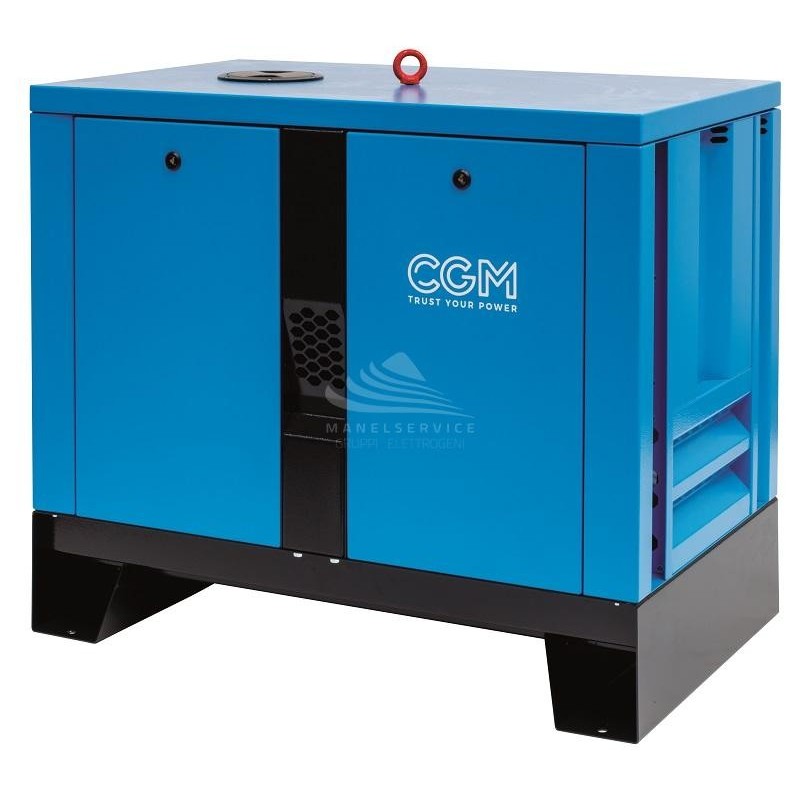

CGM DS4000T THREE-PHASE GENERATOR 4KVA
      CGM DS4000T THREE-PHASE GENERATOR 4KVA
      CGM DS4000T THREE-PHASE GENERATOR 4KVA

      CGM DS4000T THREE-PHASE GENERATOR 4KVA

      Phase type: Three phase
      Maximum power: 3.5 KW
      Continuous power: 3.2 KW
      Maximum power: 4.4 KVA
      Continuous power: 4 KVA
      Fuel: Diesel
      Voltage: 400 V
      Frequency: 50 Hz
      Motor: KOHLER KD15-350
      Engine speed: 3000 rpm
      Starter: Electric
      Voltage regulator system: AVR
      Consumption: 1 Lt/h at 75% of the load
      Tank capacity: 30 Lt
      Autonomy: 30 h at 75% load
      Length: 1100 mm
      Width: 650 mm
      Height: 900 mm
      Weight: 160 Kg
      Supersilenced

      List price
      5,368.00 € tax incl.
      4,400.00 € tax excl.
      Discounted Price
      5,368.00 € tax incl.
      4,400.00 € tax excl.
      Shipping from 50.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: CGM DS4000T THREE-PHASE GENERATOR 4KVA

      PERSONAL DATA


      Ask a question
      Product: CGM DS4000T THREE-PHASE GENERATOR 4KVA
      Offer on letterhead
      Product: CGM DS4000T THREE-PHASE GENERATOR 4KVA
      CGM
      CGM DS4000T

      Data sheet

      Phase
      Three phase
      Maximum power three phase (KW)
      3.5
      Continuous power three phase (KW)
      3.2
      Maximum power three phase (KVA)
      4.4
      Continuous power three phase (KVA)
      4
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      400
      Sockets configuration
      1 x 400V 16A 5P CEE - 1 x 230V 16A 3P CEE - 1 x 230V SCHUKO
      Engine
      Kohler KD 15-350
      Emissions Regulations
      Stage 5
      Engine rpm (rpm)
      3000
      Starting system
      Electric
      Engine capacity (cm³)
      349
      Number cylinders
      1
      Alternator
      Made in Italy
      Poles
      2
      Fuel tank capacity (L)
      30
      Consumption (L/h)
      1
      Running time (h)
      30
      Length (mm)
      1100
      Width (mm)
      650
      Height (mm)
      900
      Dry weight (Kg)
      160
      Silenced
      Yes
      Super silenced
      Yes
      Product type
      Generator
      ATS Switch device
      Optional
      Voltage regulator
      AVR
      Engine manufacturer
      Kohler

      Specific References

      New

      Three-phase CGM DS4000T generator set 4 KVA Supersilenced

      CGM DS4000T three-phase 4 KVA generator set with a Kohler engine powered by STAGE V diesel at 3000 rpm, compact and easy to use, equipped with enclosure that lowers noise emissions and makes it super-silenced.

      The CGM DS4000T is composed of a Made in Italy alternator from Linz or NSM, self-excited with brushes and with AVR voltage regulator. The CGM DS4000T generator set is equipped with electric start with 12 V battery and with a low fuel consumption, in fact it consumes only 1 liter/hour at 75% of the load. This CGM DS4000T is perfect for outdoor use.

      The CGM DS4000T is part of the QUIET series and are characterized by lower fuel consumption and a longer life expectancy than the gasoline-powered range and equipped with soundproof cabin suitable for installation and outdoor use, and increased fuel tank. The CGM DS4000Tgenerator set at 3000 rpm is suitable for emergency use only. It is not recommended to be used for more than 6 hours continuously and for more than 500 hours per year.

      Technical features of CGM DS4000T:
      Phase type: Three phase
      Maximum power: 3.5 KW
      Continuous power: 3.2 KW
      Maximum power: 4.4 KVA
      Continuous power: 4 KVA
      Fuel: Diesel
      Voltage: 400 V
      Frequency: 50 Hz
      Motor: KOHLER KD15-350
      Engine speed: 3000 rpm
      Starter: Electric
      Voltage regulator system: AVR
      Consumption: 1 Lt/h at 75% of the load
      Tank capacity: 30 Lt
      Autonomy: 30 h at 75% load
      Length: 1100 mm
      Width: 650 mm
      Height: 900 mm
      Weight: 160 Kg
      Supersilenced

      Discover the full range reserved for generator of CGM or other top brands browsing our catalog to find the one that best suits your needs.

      Images and technical data are not binding.
