CGM D6000T THREE PHASE GENERATOR 6KVA
      CGM D6000T THREE PHASE GENERATOR 6KVA
      CGM D6000T THREE PHASE GENERATOR 6KVA

      CGM D6000T THREE PHASE GENERATOR 6KVA

      D6000T

      Type of phase: Single-phase / Three-phase
      Maximum single-phase power: 2.2 KVA / 1.8 KW
      Continuous single-phase power: 2 KVA / 1.6 KW
      Maximum three-phase power: 6.6 KVA / 5.3 KW
      Continuous three-phase power: 6 KVA / 4.8 KW
      Fuel: Diesel
      Voltage: 230/400 V
      Frequency: 50 Hz
      Motor: KOHLER KD15-440
      Engine rpm: 3000 rpm
      Starting: Electric
      Voltage regulator system: AVR
      Consumption: 1.5 Lt / h at 75% of the load
      Capacity tank: 4.5 Lt
      Autonomy: 3 h at 75% of the load
      Length: 910 mm
      Width: 580 mm
      Height: 640 mm
      Weight: 110 Kg

      List price
      5,929.20 € tax incl.
      4,860.00 € tax excl.
      Discounted Price
      3,705.75 € tax incl.
      3,037.50 € tax excl.
      Shipping from 50.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: CGM D6000T THREE PHASE GENERATOR 6KVA

      PERSONAL DATA


      Ask a question
      Product: CGM D6000T THREE PHASE GENERATOR 6KVA
      Offer on letterhead
      Product: CGM D6000T THREE PHASE GENERATOR 6KVA
      CGM
      D6000T

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power single phase (KW)
      1.8
      Continuous power single phase (KW)
      1.6
      Maximum power single phase (KVA)
      2.2
      Continuous power single phase (KVA)
      2
      Maximum power three phase (KW)
      5.3
      Continuous power three phase (KW)
      4.8
      Maximum power three phase (KVA)
      6.6
      Continuous power three phase (KVA)
      6
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Sockets configuration
      1 x 400V 16A 5P CEE - 1 x 230V 16A 3P CEE
      Engine
      Kohler KD 15-440
      Emissions Regulations
      Stage 5
      Engine rpm (rpm)
      3000
      Starting system
      Electric
      Engine capacity (cm³)
      442
      Number cylinders
      1
      Alternator
      Made in Italy
      Poles
      2
      Fuel tank capacity (L)
      4.5
      Consumption (L/h)
      1.5 at 75% of the load
      Running time (h)
      3 at 75% of the load
      Length (mm)
      850
      Width (mm)
      910
      Height (mm)
      640
      Dry weight (Kg)
      110
      Voltage regulator
      AVR

      Specific References

      New

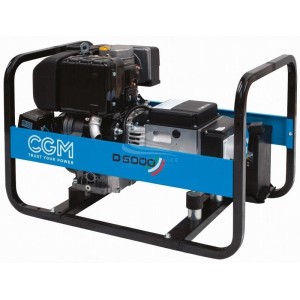

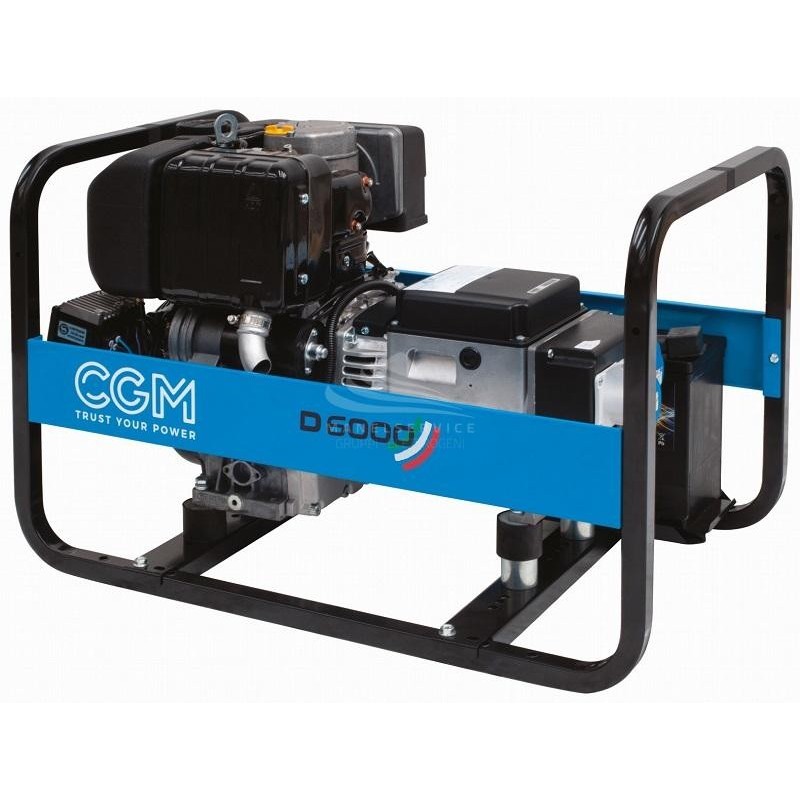

      CGM D6000T Three-phase 6 KVA generator

      CGM D6000T Three-phase 6 KVA generator set with Kohler engine powered by STAGE V diesel at 3000 rpm, compact and easy to use, mounted on a fixed base with rubber vibration dampers..

      The CGM D6000T generator set consists of a Made in Italy alternator from Linz or NSM, self-excited with brushes and with AVR voltage regulator. The CGM D6000T generator set is equipped with electric start with 12V battery and with a low fuel consumption, in fact it consumes only 1,5 liters/hour at 75% of the load. This CGM D6000T is perfect for outdoor use such as hobby use.

      The CGM D6000T is part of the CLASSIC DIESEL series and are characterized by lower fuel consumption and a longer life expectancy than the gasoline-powered range. The CGM D6000T at 3000 rpm is suitable for emergency use only. It is not recommended for use for more than 6 hours continuously and for more than 500 hours per year.

      Technical characteristics of the CGM D6000T:

      Type of phase: Singlephase / Threephase
      Maximum singlephase power: 2.2 KVA / 1.8 KW
      Continuous singlephase power: 2 KVA / 1.6 KW
      Maximum threephase power: 6.6 KVA / 5.3 KW
      Continuous threephase power: 6 KVA / 4.8 KW
      Fuel: Diesel
      Voltage: 230/400 V
      Frequency: 50 Hz
      Motor: KOHLER KD15-440
      Engine rpm: 3000 rpm
      Starting: Electric
      Voltage regulator system: AVR
      Consumption: 1.5 Lt / h at 75% of the load
      Capacity tank: 4.5 Lt
      Autonomy: 3 h at 75% of the load
      Length: 910 mm
      Width: 580 mm
      Height: 640 mm
      Weight: 110 Kg

      Discover the full range reserved for generator of CGM or other top brands by browsing our catalog to find the one that best suits your needs.

      Images and technical data are not binding.
