GENSET MG 132 S-I - SINGLE-PHASE/THREE-PHASE GENERATOR 132 KVA AVR

Name: GENSET MG 132 S-I - SINGLE-PHASE/THREE-PHASE GENERATOR 132 KVA AVR
Brand: GENSET
SKU: MG 132 S-I

Reference MG 132 S-I

OUT OF PRODUCTION

Maximum power Three-phase: 132 KVA
Maximum power Three-phase: 105.6 KW
Power continuous use Three-phase: 120 KVA
Power continuous use Three-phase: 96 KW
Maximum power Single-phase: 44 KVA
Maximum power Single-phase: 35.2 KW
Fuel: Diesel
Voltage: 230/400 V
Frequency: 50 Hz
Motor: FPT NEF 45 TM3
Starting: Electric
Consumption: 21.6 Lt/h
Length: 2900 mm
Width: 1100 mm
Height: 1800 mm
Weight: 1630 Kg
Super silenced
AVR

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference MG 132 S-I

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KW): 35.2
Maximum power single phase (KVA): 44
Maximum power three phase (KW): 105.6
Continuous power three phase (KW): 96
Maximum power three phase (KVA): 132
Continuous power three phase (KVA): 120
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: Terminal box

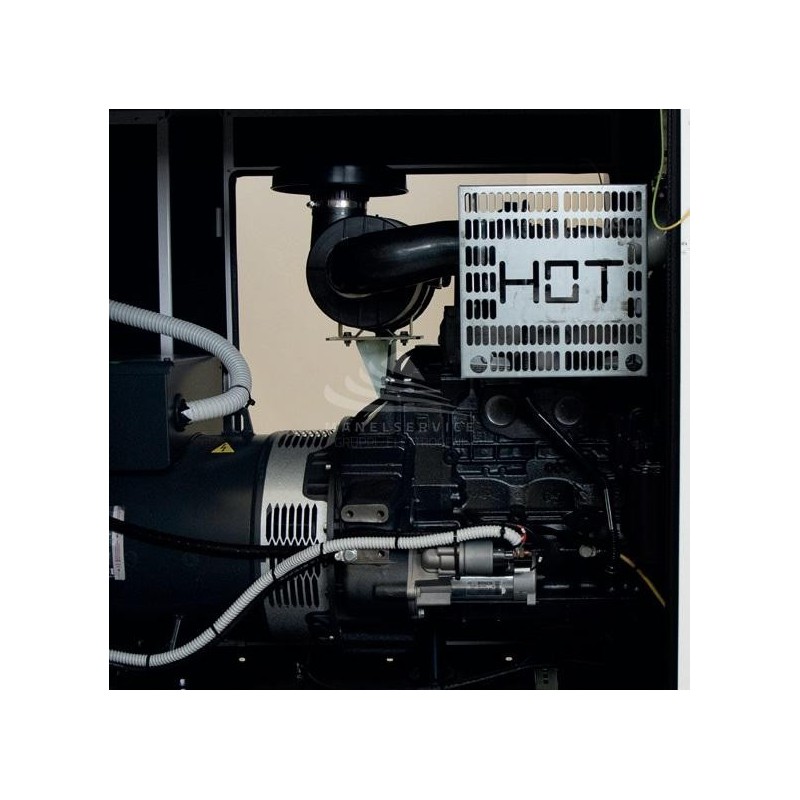

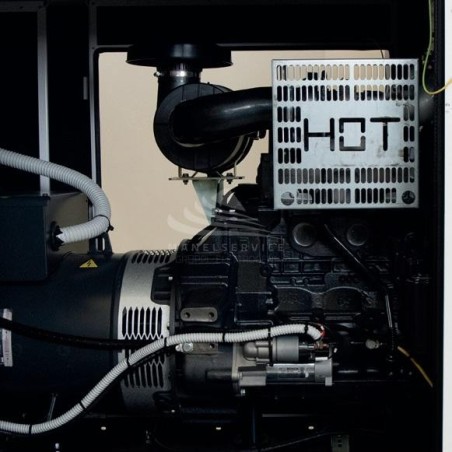

Engine: FPT (IVECO) NEF45TM3 turbo
Emissions Regulations: Stationary Use
Engine rpm (rpm): 1500
Starting system: Electric
Engine capacity (cm³): 4500
Number cylinders: 4
Cooling: Water
Alternator: Synchronous
Protection degree: IP23
Motor insulation class: H
Fuel tank capacity (L): 230
Consumption (L/h): 21.6
Running time (h): 10.65
Acoustic power: 95 dB(A)
Acoustic pressure: 70 dB(A) at 7 m
Length (mm): 2900
Width (mm): 1100
Height (mm): 1800
Dry weight (Kg): 1630
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: Yes
Voltage regulator: AVR
Engine manufacturer: FPT Iveco

Specific References

Condition New

GENSET MG 132 S-I

The GENSET MG 132 S-I is a 88 KVA single/three phase diesel generator set with electric start and AVR voltage regulator.
The GENSET MG 132 S-I also has a low fuel consumption: only 21.6 Lt/h at 75% of the load.
Thanks to the high quality and efficiency of its components, the GENSET MG 132 S-I generator set is ideal for various types of professional work such as on large construction sites.

Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
