GENMAC ROYAL G200CS-E3 THREE-PHASE 200 KVA DIESEL - MOTOR CUMMINS STAGE 3A

GENMAC ROYAL G200CS-E3 200 KVA DIESEL
search
  • GENMAC ROYAL G200CS-E3 200 KVA DIESEL
  • GENMAC ROYAL G200CS-E3 200 KVA DIESEL
GENMAC
ROYAL G200CS-E3-STAGE 3A-AVR
New product

Phase Type: Single-phase / Three-phase
Maximum power LTP: 220 KVA
Maximum power LTP: 176 KW
Continuous power PRP: 200 KVA
Continuous power PRP: 160 KW
Fuel: Diesel
Frequency: 50 Hz
Voltage: 230 / 400 V
Engine: Cummins QSB7-G5
Engine rpm: 1500 rpm
Cooling: Water
Length: 3600 mm
Width: 1226 mm
Height: 2000 mm
Weight: 2225 Kg
Super silenced
AVR

Technical features
Phase
Single phase / Three phase
Maximum power three phase (KW)
176
Continuous power three phase (KW)
160
Maximum power three phase (KVA)
220
Continuous power three phase (KVA)
200
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Emissions Regulations
Stage 3A
Engine rpm (rpm)
1500
Speed governor
Electronic
Engine capacity (cm³)
6
Number cylinders
6
Oil capacity (L)
18
Cooling
Water
Alternator
Mecc Alte
Length (mm)
3600
Width (mm)
1226
Height (mm)
2000
Dry weight (Kg)
2224
AVR
Yes
Silenced
Yes
Super silenced
Yes
Product type
Generator
ATS Switch device
No
Voltage regulator
AVR
Engine manufacturer
Cummins
Details

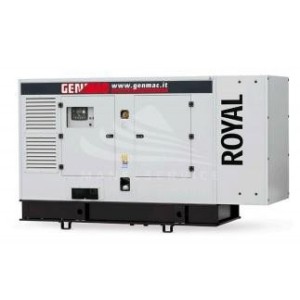

GENMAC ROYAL G200CS-E3

The GENMAC ROYAL G200CS-E3 is a 200 KVA super-silenced single-phase/three-phase diesel generator with Mecc Alte alternator and AVR voltage regulator.
Thanks to its diesel fuel supply, the GENMAC ROYAL G200CS-E3 can only consume 4.5 m³/h at full load and has a low environmental impact, making it one of the best in its class.
The long life and reliability of the GENMAC ROYAL G200CS-E3 is due to a special control procedure during the various stages of production.
The GENMAC ROYAL G200CS-E3 is suitable for applications in different contexts such as: hospitals, industries, shopping malls, hotels, airports, banks, universities, stadiums, offices, etc.

The Stage 3A engine allows the use of the generator set also for mobile use, for example for roadworks and rental services.

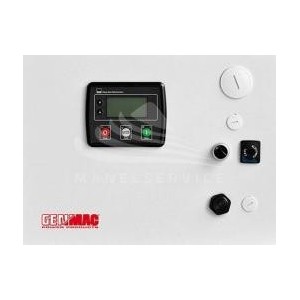

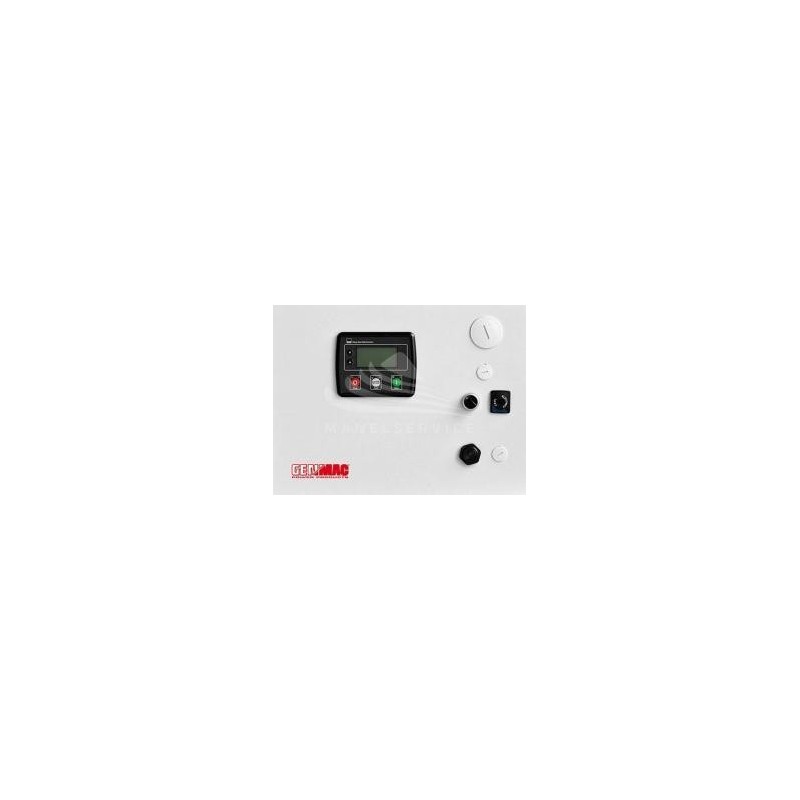

Control panel features

QT2A-4520

Self-standing tower with IP65 metal box
Circuit breaker
AMF controller DSE4520
- Voltmeter, Frequencymeter, Ammeter
- Generator power (kW, kV Ar, kV A & pf) monitoring
- Hour meter
- Fuel level meter
- Overload (kW & kV Ar) protection
- Low oil pressure protection
- High coolant temperature protection
- Low fuel level protection
- Battery charger alternator fault
- Rpm protection
Emergency stop button
Audible alarm
Terminal board for ATS connection
Can Bus reading Port (if standard on the engine)
Battery charger
On/off switch

Images and technical data are not binding.

List price
63.275,00 € tax incl.
51.864,75 € tax excl.
Discounted Price
34.402,54 € tax incl.
28.198,80 € tax excl.
Voltage Regulator
Ask for availability
Add to wishlist
Download PDF
Ask a question
